900P24-0101

Product Overview

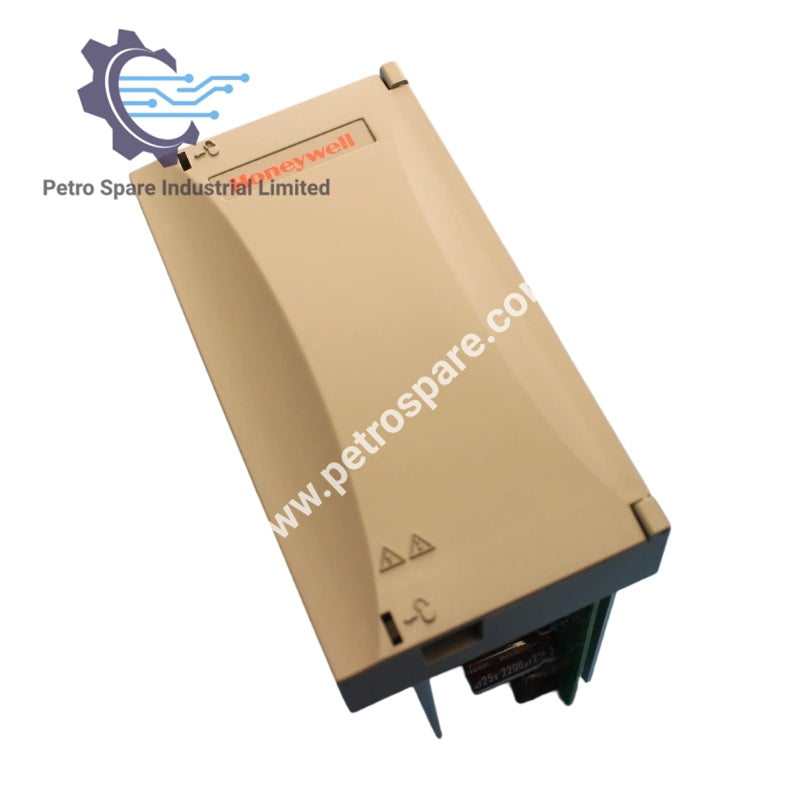

The Honeywell 900P24-0101 is a 24VDC power supply module designed for the ControlEdge HC900 system.

Technical Specifications

• Power Input: 24 VDC (±10%), 3 A max

• Power Output: 24 VDC regulated, 2.5 A continuous, 3 A peak, ripple noise <100 mVp-p

• Efficiency & Protection: Efficiency ≥85%, overcurrent protection auto-resetting, overvoltage protection via clamp circuit

• Environmental: Operating temperature -20°C to +70°C, storage temperature -40°C to +85°C, humidity 5–95% non-condensing

• Mechanical: Dimensions 45 mm x 125 mm x 110 mm, weight 0.5 kg

• Certifications: CE, UL, ATEX (optional), safety standard IEC61010-1

• Features: Hot-swappable, reliable power distribution, compact modular design
