TSXASZ401

Overview

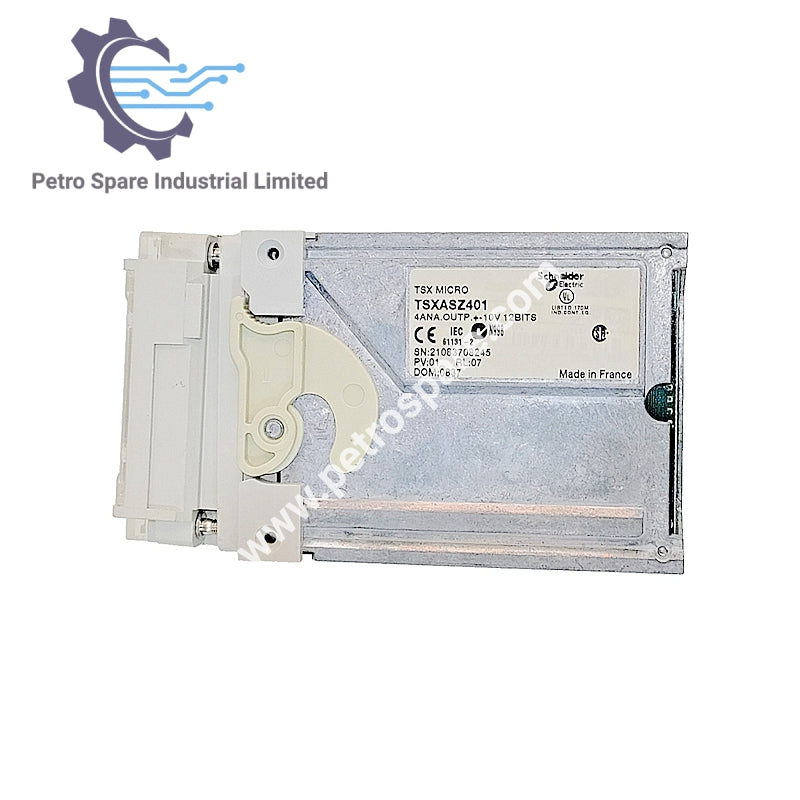

TSXASZ401 is a Schneider Modicon TSX Micro analog output module with 4 channels, supporting ±10 V and 0–10 V signals for precise control applications.

Identification

• Product ID: TSXASZ401

• Range of product: Modicon TSX Micro automation platform

• Type: Analog output module

Channel & Signal Data

• Number of channels: 4

• Analog output type: ±10 V, 0–10 V

• Analog/digital conversion: 11 bits (0–10 V), 11 bits + sign (±10 V)

• Response time: 400 µs

• Output load: ≥2 Ohm

Protection & Reliability

• Protection type: Short-circuit

• Temperature drift: 0.096 %/10 °C

• Isolation voltage: 1000 V AC

Electrical Data

• Current consumption: 90 mA

Mechanical Data

• Net weight: 0.2 kg

---
