6GK1503-3CB00

Product Overview

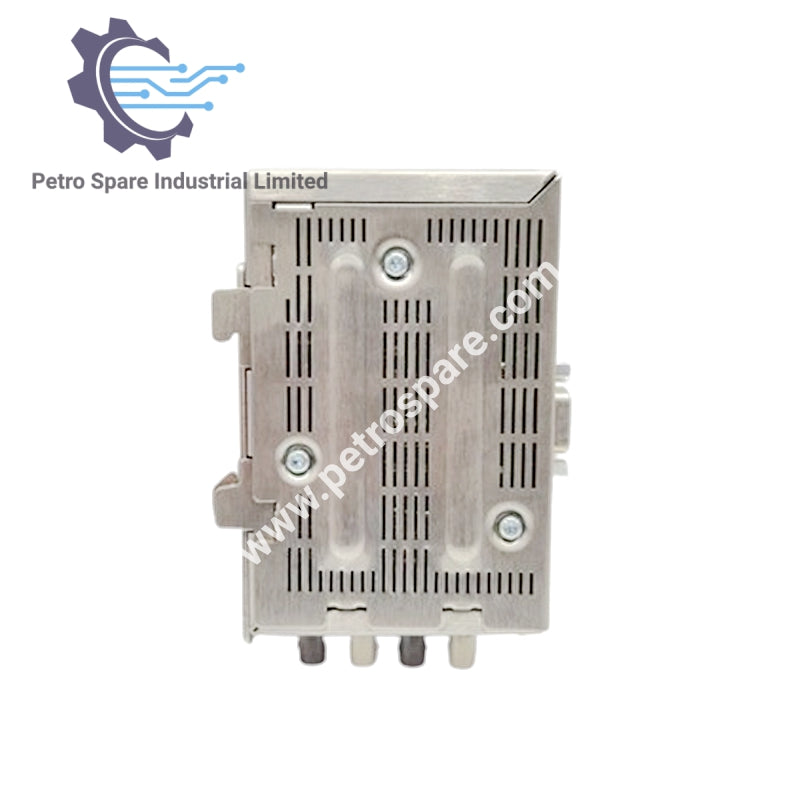

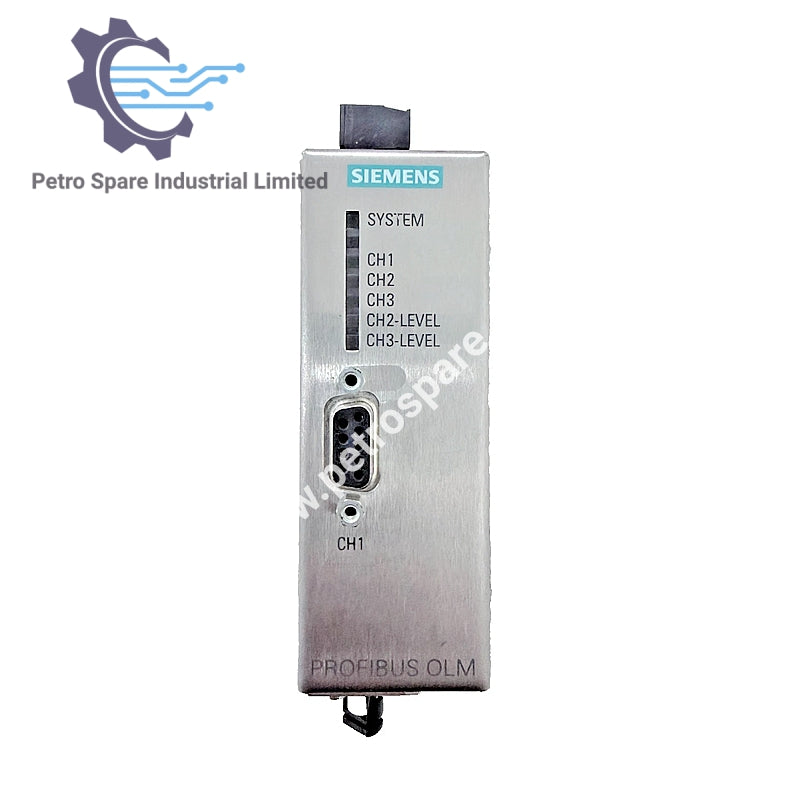

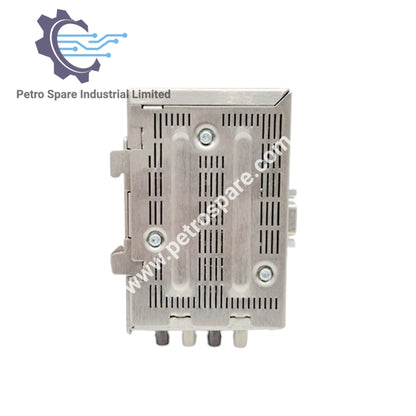

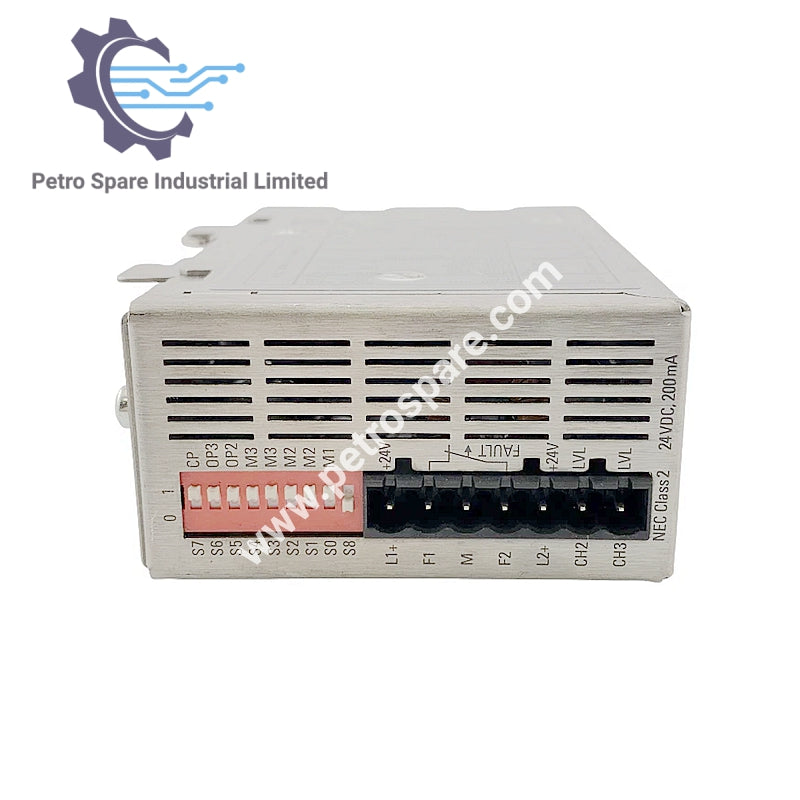

6GK1503-3CB00 is a Siemens PROFIBUS OLM/G12 V4.0 optical link module with 1 RS485 and 2 glass FOC interfaces (4 BFOC sockets), supporting distances up to 2850 m, with signaling contact and measuring output.

Transfer Rate

• PROFIBUS: 9.6 kbit/s – 12 Mbit/s

• PROFIBUS PA: 45.45 kbit/s

Signal Inputs/Outputs

• Operating voltage (DC): 24 V

• Operational current (max.): 0.1 A

Design & Dimensions

• Design: Compact

• Width: 39.5 mm

• Height: 112 mm

• Depth: 74.5 mm

• Weight: 0.34 kg

• Mounting: 35 mm DIN rail or wall

Optical Data

• Attenuation (glass FOC 50/125 µm): max. 10 dB (3 dB/km)

• Attenuation (glass FOC 62.5/125 µm): max. 12 dB (3.5 dB/km)

• Propagation delay: 6.5 bit

• Connectable optical power (50/125 µm): –16 dB

• Connectable optical power (62.5/125 µm): –13 dB

• Optical sensitivity (50/125 µm): –28 dB

• Optical sensitivity (62.5/125 µm): –28 dB

• Wavelength: 860 nm, multimode

• Max. wire length (50/125 µm): 3 km

• Max. wire length (62.5/125 µm): 3 km

---
