6ES7314-1AG14-0AB0

Overview

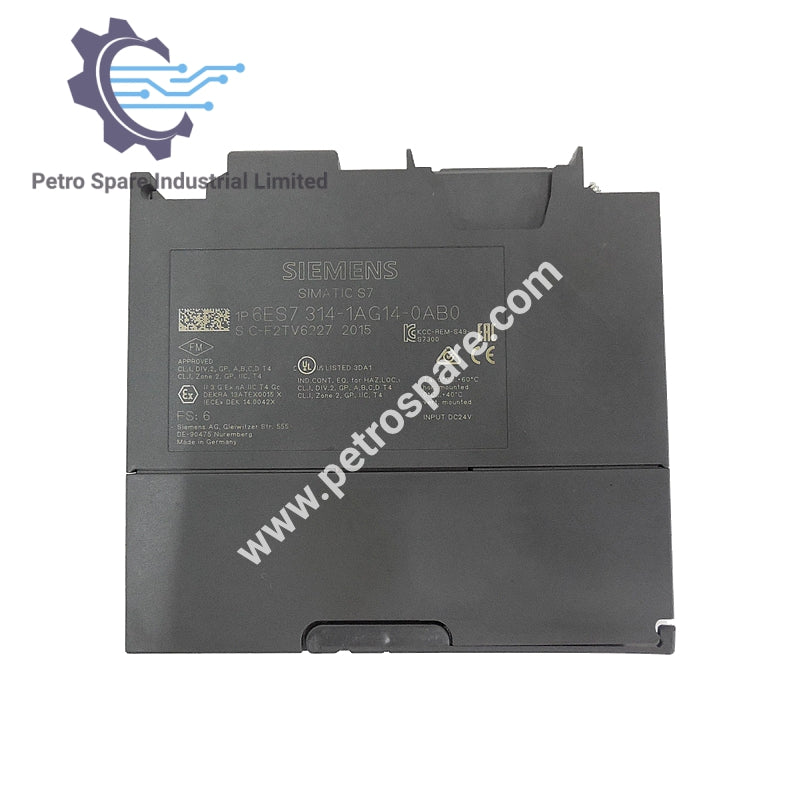

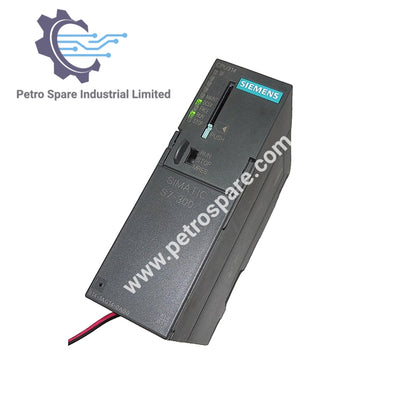

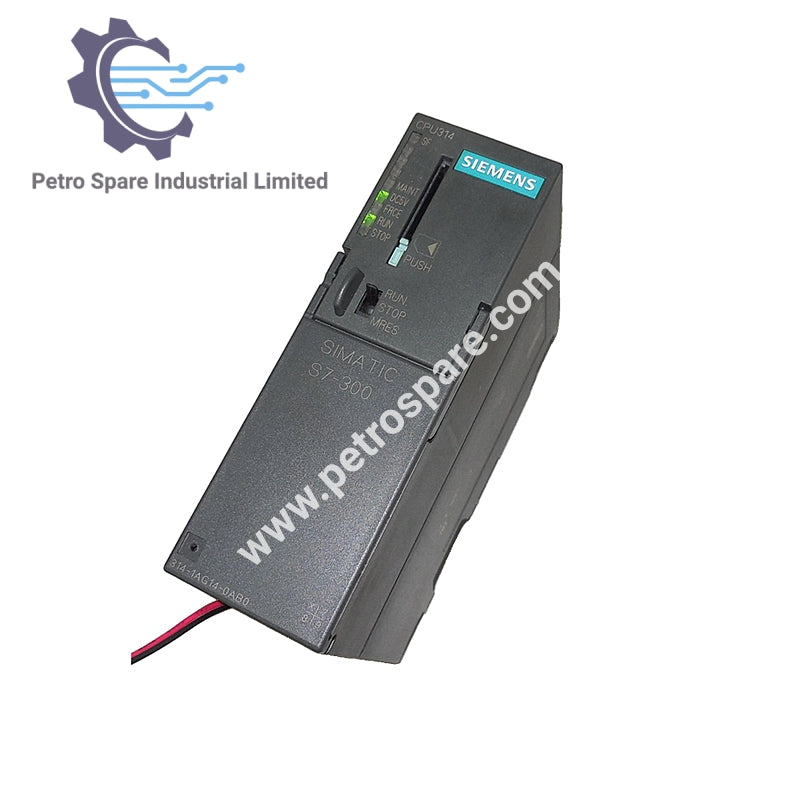

6ES7314-1AG14-0AB0 is a Siemens SIMATIC S7-300 CPU 314 central processing unit with MPI interface, integrated 24 V DC power supply, 128 KB work memory, and micro memory card requirement.

Electrical Data

• Supply voltage (DC): 24 V

• Voltage range: 19.2–28.8 V

• External protection (recommended): 2 A minimum

• Mains buffering time: 5 ms

• Repeat rate (min.): 1 s

• Power loss (typical): 4 W

Memory

• Work memory (integrated): 128 KB

• Retentive memory: 64 KB

• Load memory (MMC plug-in): up to 8 MB

• Data management on MMC: ≥10 years after last programming

• Backup: maintenance-free, without battery

CPU Performance

• Bit operations: 0.06 µs

• Word operations: 0.12 µs

• Fixed point arithmetic: 0.16 µs

• Floating point arithmetic: 0.59 µs

Dimensions & Weight

• Width: 40 mm

• Height: 125 mm

• Depth: 130 mm

• Weight: 280 g

---
