MTL4760ac

Product Overview

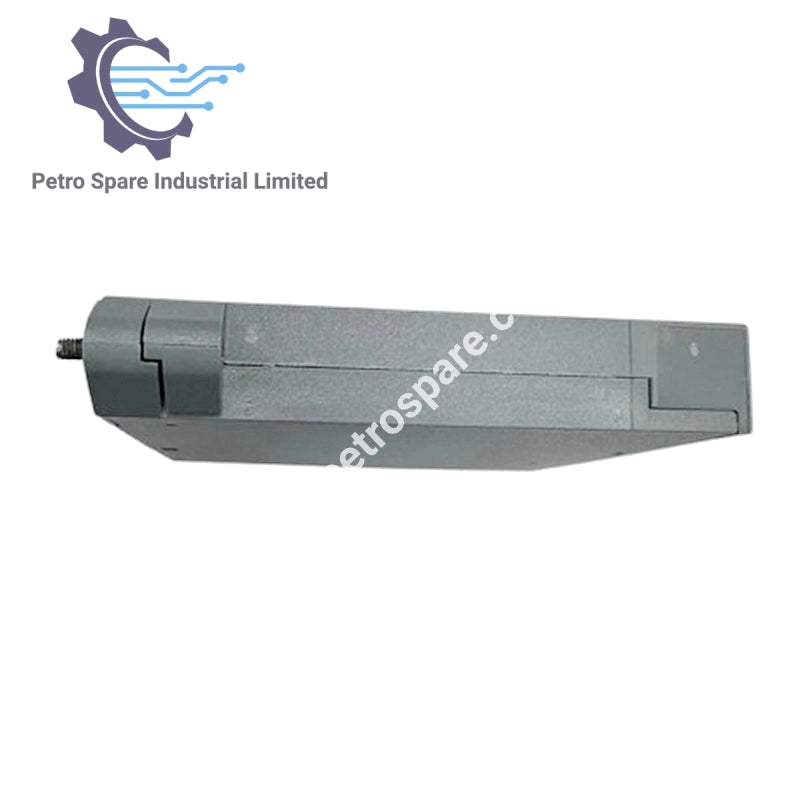

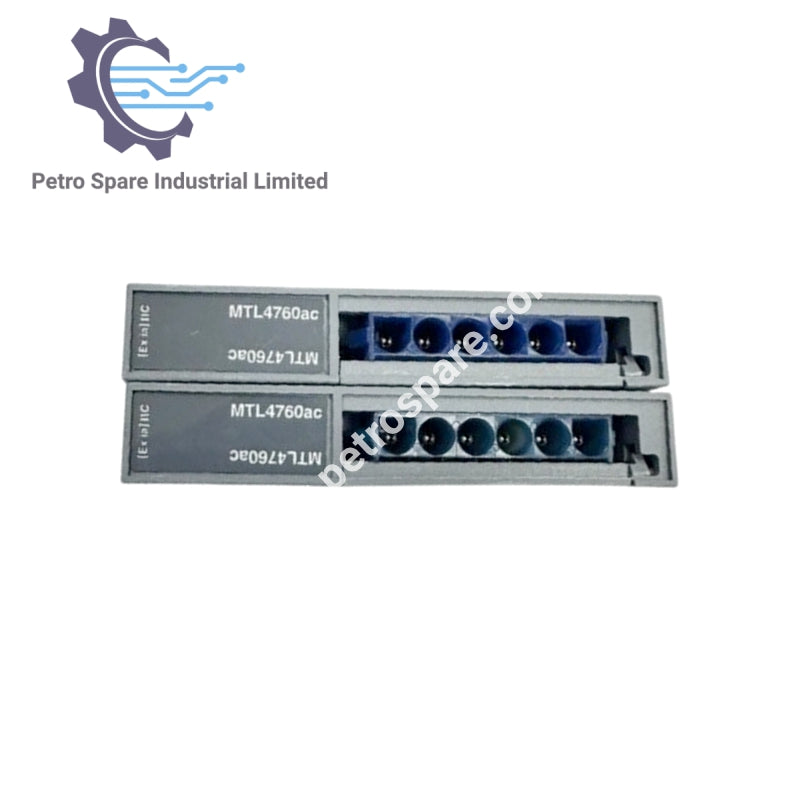

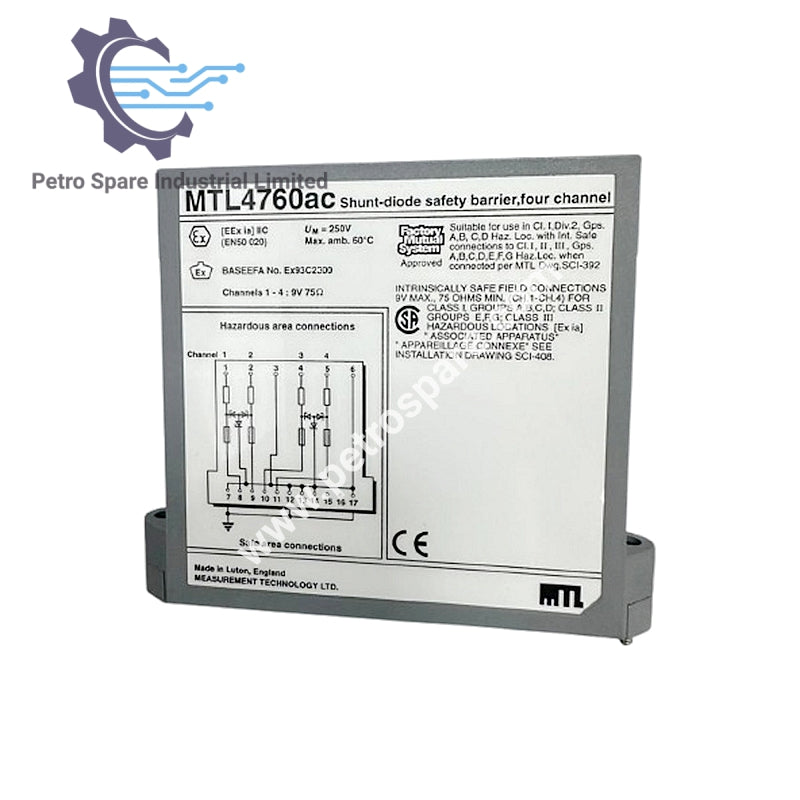

Eaton MTL MTL4760ac Twin 2-Channel Barrier is designed for THCs, low-level AC signals, and 4-wire RTDs. It supports two devices using two channels each, or one 4-wire RTD using all four channels. This module is not compatible with bussed power configurations.

Identification

• Product ID: MTL4760ac

• Model: Twin 2-Channel Barrier

• Type: Intrinsically Safe Interface

• Manufacturer: Eaton MTL

Channel Allocation

• Channels: 1 to 4

• Polarity: AC

Electrical Ratings

• Safety description: 9 V, 75 Ω, 120 mA

• Max resistance: 95 Ω

• V working at 10 μA: 7.0 V

• V max: 7.6 V

• Fuse rating: 50 mA

• Matched power: 0.27 W

Application Notes

• Supported signals: THCs, low-level AC, 4-wire RTDs

• Power source: Not bussed

---
