HE693DNT250

Overview

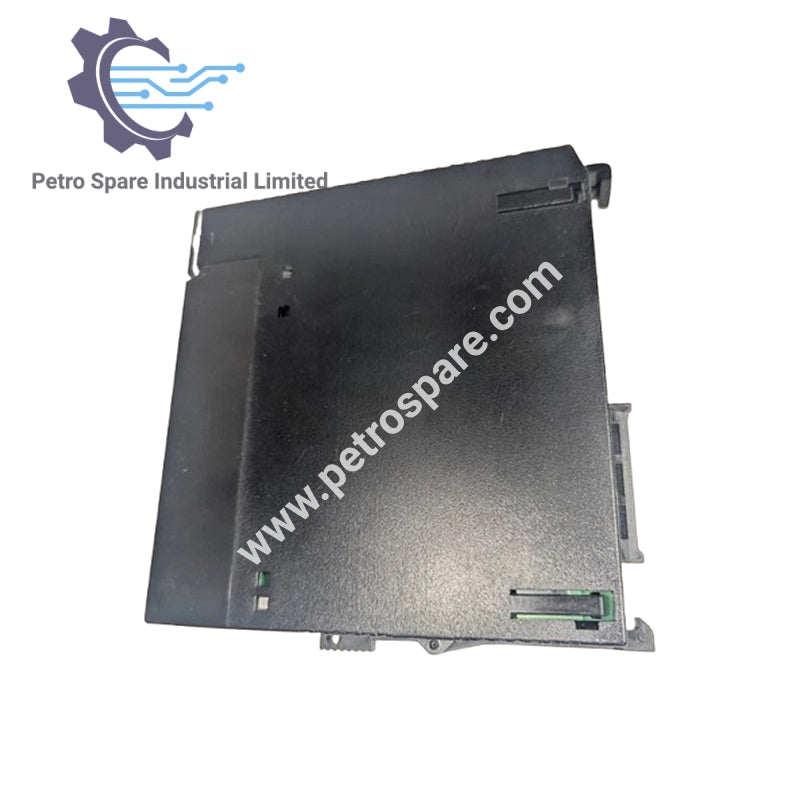

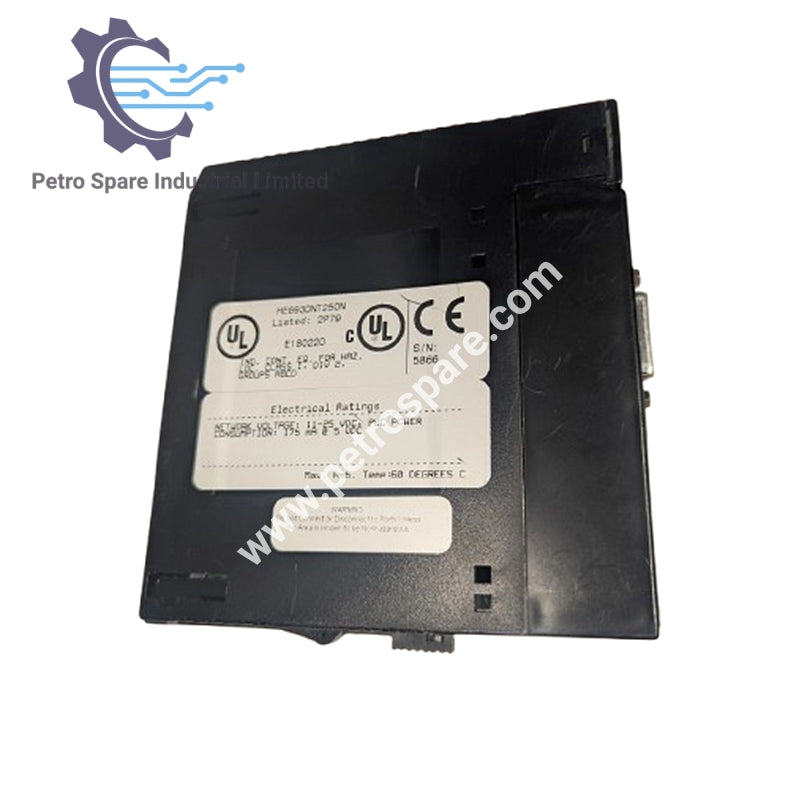

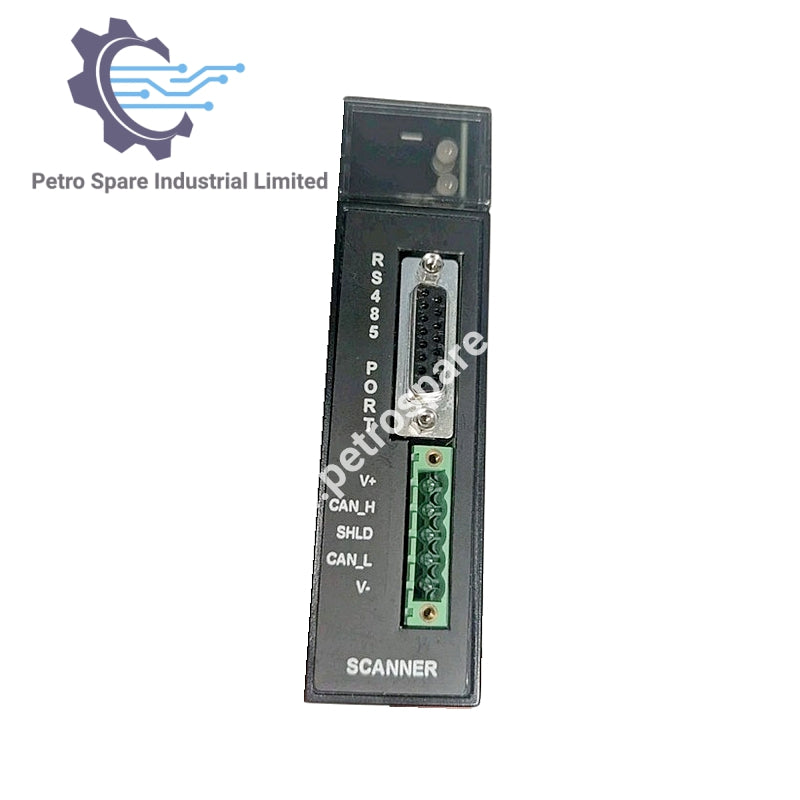

GE Fanuc HE693DNT250 DeviceNet Master Scanner Module enables Series 90‑30 PLCs to communicate with DeviceNet networks. It supports up to 63 slave devices and maps polled data directly into PLC I/O registers for efficient control and monitoring.

Identification

• Product ID: HE693DNT250

• Model: DeviceNet Master Scanner

• Type: Communication Interface Module

• Manufacturer: GE Fanuc Horner

Network Capabilities

• Protocol: DeviceNet

• Slave capacity: Up to 63 nodes

• Baud rate: 125–500 KHz

• Fanout: Up to 63 devices

• Max cable distance: 1,500 ft

PLC Integration

• Platform: GE Fanuc Series 90‑30

• Data mapping: Polled data mapped to %I, %Q, %AI, %AQ registers

• Communication: Backplane I/O for fast data exchange

• Functionality: Treated as large I/O module by ladder logic

Electrical Specifications

• DeviceNet voltage range: 11–25 V

• DeviceNet power load: Up to 65 mA

• PLC logic power: +5 VDC, max 175 mA

• Environmental:

  • Operating temperature: 0 to +60 °C

  • Storage temperature: −40 to +85 °C

  • Humidity: 5–95% RH non-condensing

Physical Characteristics

• Dimensions (mm): 90 × 70 × 125

• Weight: 0.4 kg

---
