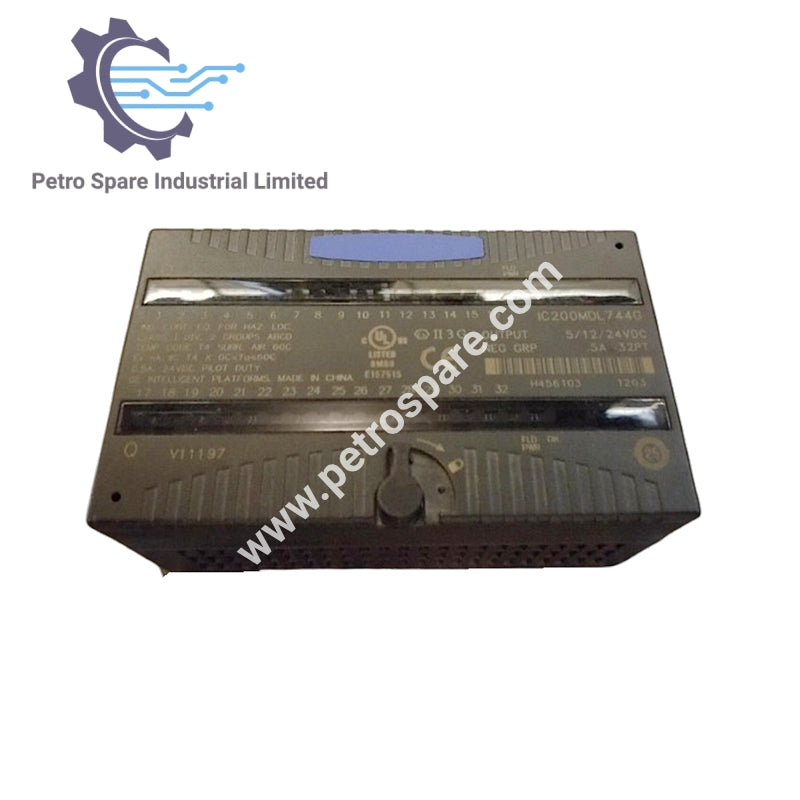

IC200MDL744

Overview

IC200MDL744 is a GE Fanuc VersaMax discrete output module designed to deliver reliable DC output signals for industrial automation applications.

Output Voltage

• 5 VDC‑TTL mode: +4.75 to +5.25 VDC, nominal +5 VDC

• 12/24 VDC mode: +10.2 to +30 VDC, nominal +12/24 VDC

Voltage Drop

• 5 VDC‑TTL mode: 0.4 V maximum

• 12/24 VDC mode: 0.3 V maximum

Load Current

• 5 VDC‑TTL mode: 25 mA maximum

• 12/24 VDC mode: 0.5 A at 30 VDC maximum (resistive)

• Inrush current: 2.0 A maximum for 100 ms

Leakage Current

• At 30 VDC: 0.5 mA maximum

Response Time

• On: 0.2 ms maximum

• Off: 1.0 ms maximum

Protection

• Internal fuses: None

---
