IC200MDL330

Overview

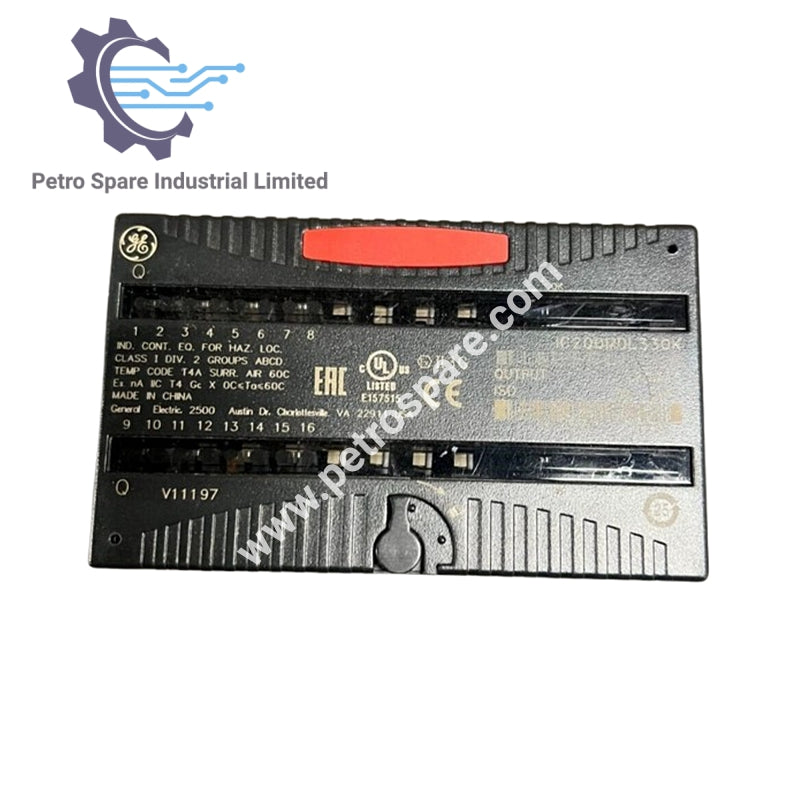

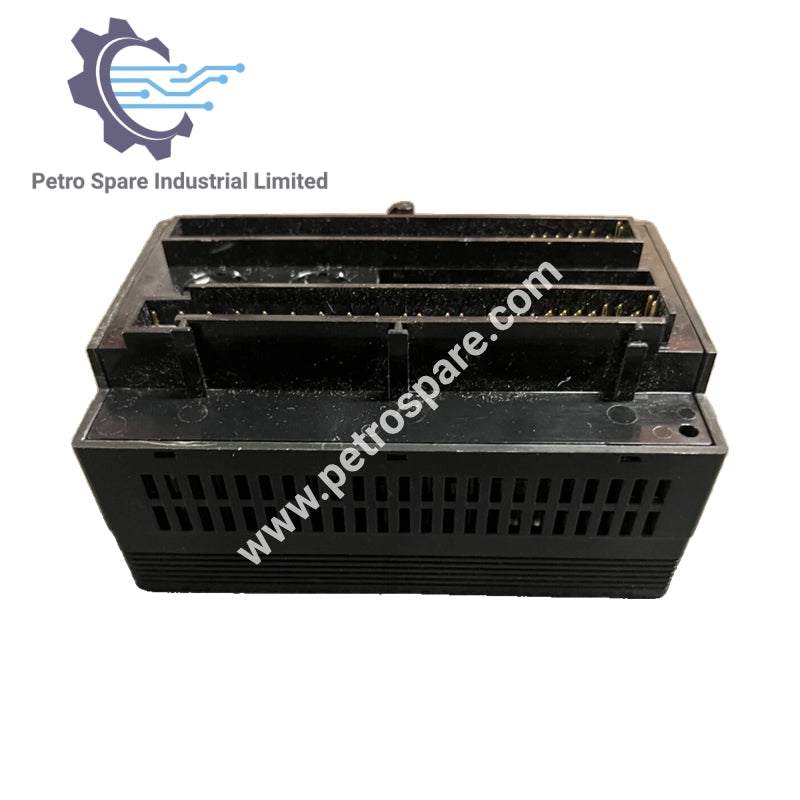

IC200MDL330 is a GE Fanuc VersaMax discrete output module with 16 isolated outputs, designed to control devices such as contactors, indicator lamps, and interposing relays.

Output Configuration

• Channels: 16 isolated outputs

• Supply voltage: 120 V AC external power

• Carrier base: Requires IC200CHSxxx

Indicators

• Output LEDs: Individual green LEDs for each output point

• Status LED: One green OK LED for backplane power

Usage Notes

• Inductive loads: External suppression circuits recommended

• Thermal derating: Number of active points depends on voltage, ambient temperature, and DIN rail orientation

---
