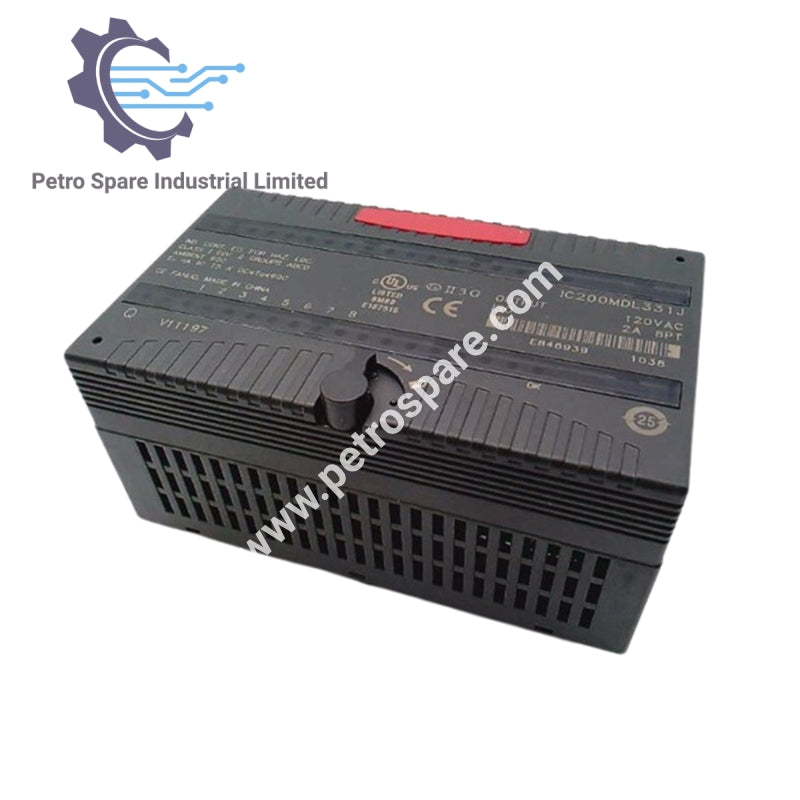

IC200MDL331

Overview

IC200MDL331 is a GE Fanuc VersaMax discrete output module with 8 isolated output points, designed for AC load control in industrial automation systems.

I/O Configuration

• Points: 8 isolated outputs

• Isolation: 250 VAC continuous, 1500 VAC for 1 minute

Indicators

• Per‑point LEDs: Show individual on/off state

• OK LED: Indicates backplane power presence

Power & Consumption

• Backplane current: 85 mA maximum at 5 V

• External supply: 85–132 VAC (47–63 Hz), nominal 120 VAC

Output Characteristics

• Voltage: 85–132 VAC (47–63 Hz), nominal 120 VAC

• Voltage drop: 2.0 V maximum

• Load current: 10 mA minimum, 2.0 A maximum per point

• Inrush current: 20 A for one cycle (20 ms) maximum

• Leakage current: < 2 mA at 132 VAC

Response Time

• On: < ½ cycle

• Off: < ½ cycle

Protection & Diagnostics

• Protection: Snubber and MOV per output

• Diagnostics: None

---
