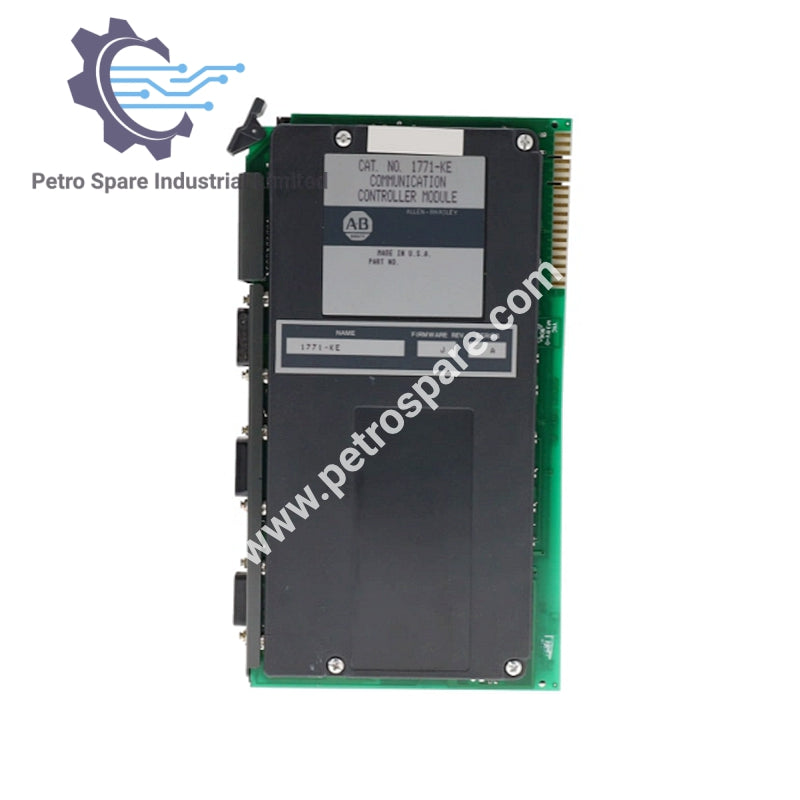

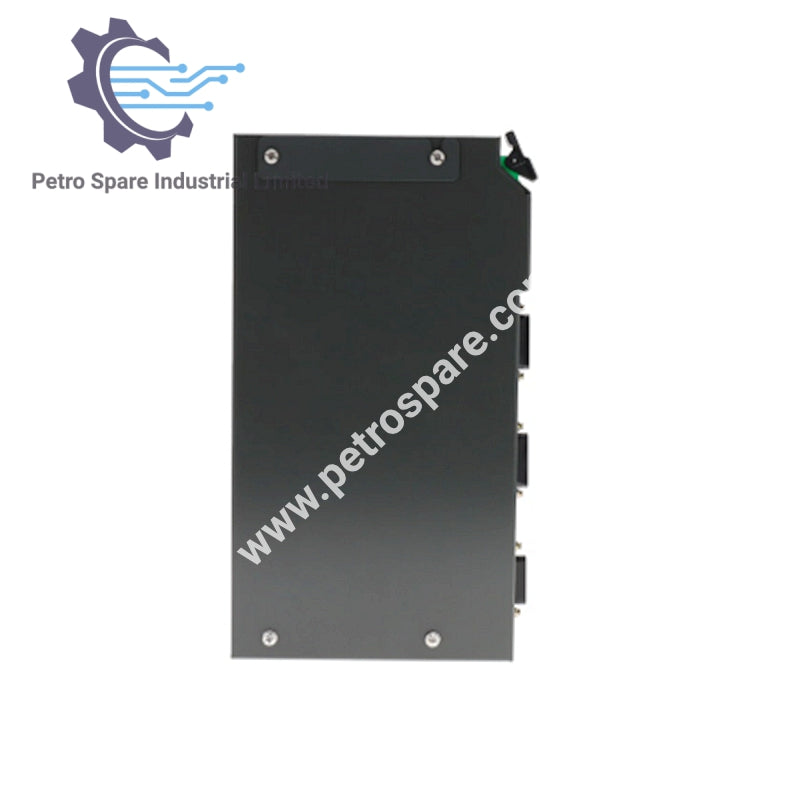

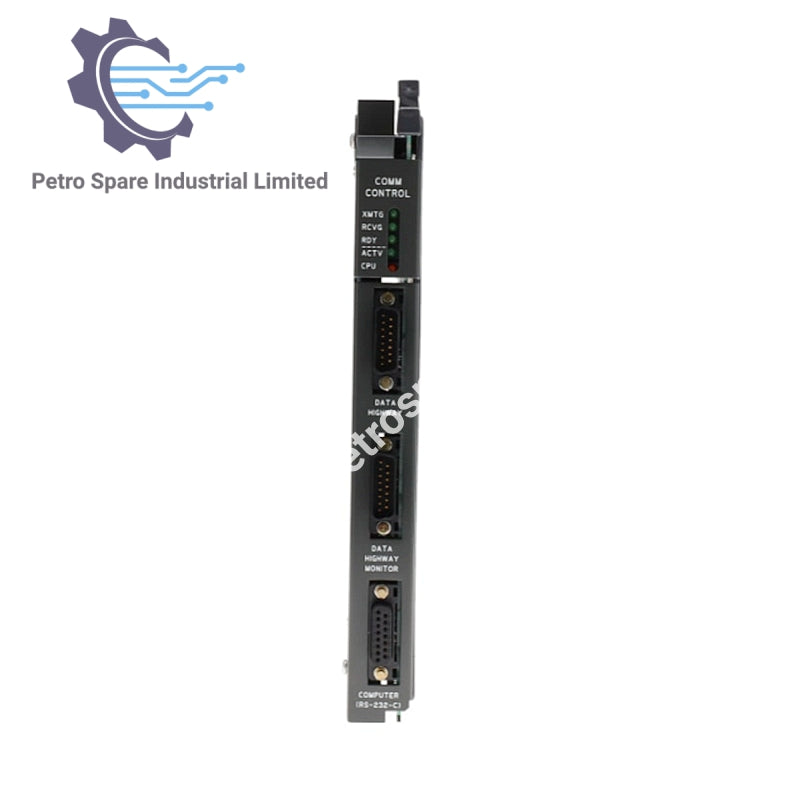

1771-KE

Description

• Product No.: 1771‑KE

• Type: Communication controller module

• Manufacturer: Allen‑Bradley (Rockwell Automation)

Physical Data

• Weight: 2.81 lbs (1.28 kg)

• Mounting: Rack‑mountable

Electrical Ratings

• Communication Ports: Data Highway and RS‑232‑C

• Power Requirement: 1.2 A at 5 V DC

• Processor Port: 91.2 kilobaud

• Voltage Range: Type B, E, J, K, R, S, T ±99.99 mV

• Current Range: N/A

• Backplane Current: 750 mA

• Required External Power: None

Wiring

• Wiring Arm: 1771‑WH

Coating

• Type: Conformal coat

Signal Performance

• Typical AC Signal Delay (Off): 45 ms (±15 ms)

• Typical DC Signal Delay (Off): 50 ms

---
