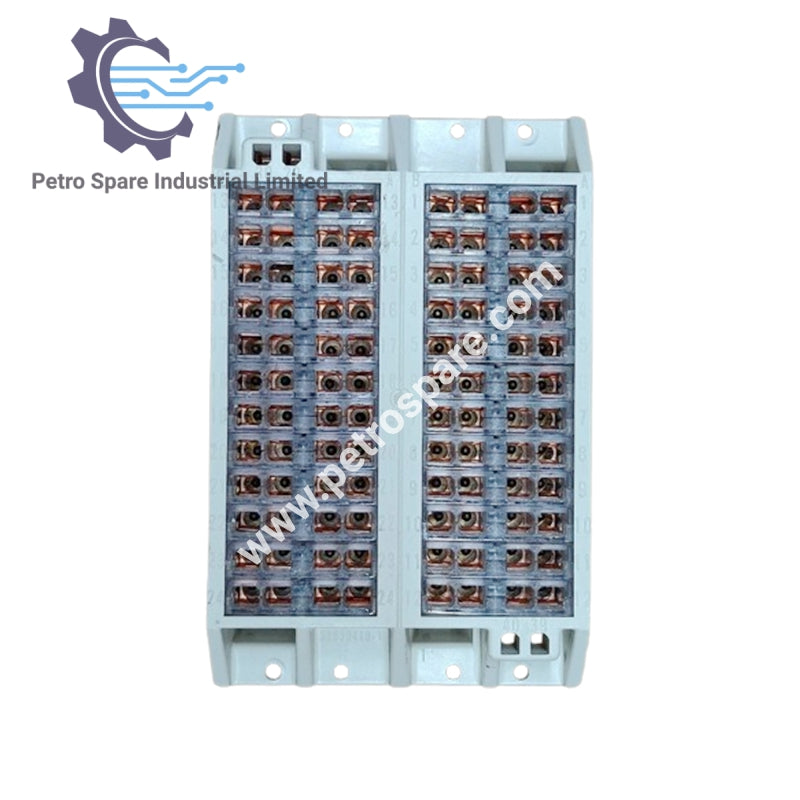

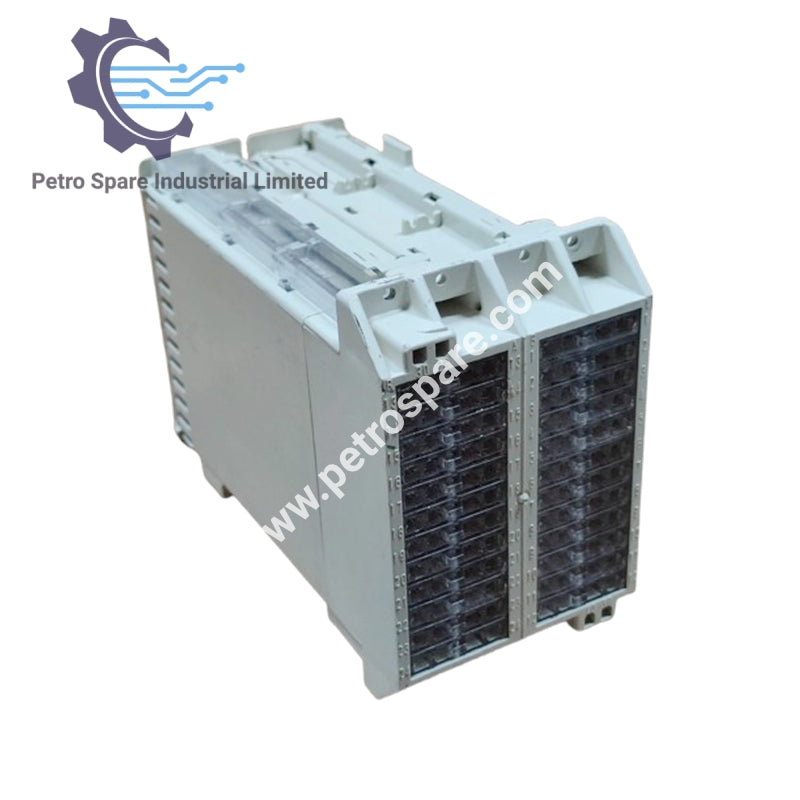

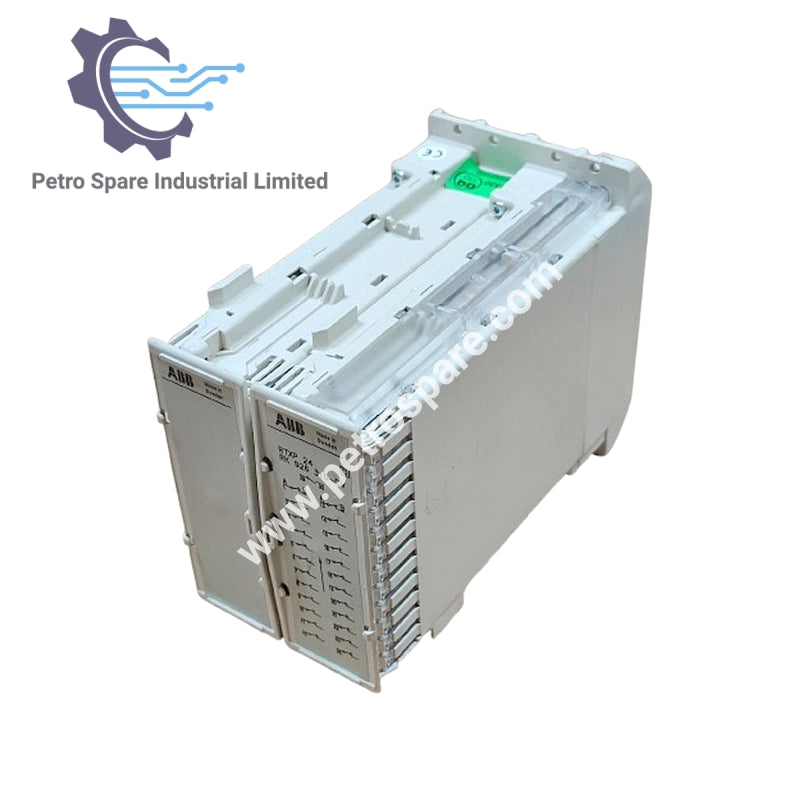

RTXP 24

Pregled proizvoda

RTXP 24 je test prekidač iz ABB-a dizajniran za pouzdan i siguran test u električnim sistemima.

Električne specifikacije

• Test voltage: 2.5 kV

• Highest system voltage: 600 V DC, 500 V AC

Trenutni kapacitet

• Test contacts (continuous): 20 A

• Test contacts (1 s): 500 A

• Signalling contact (continuous): 10 A

• Signalling contact (1 s): 150 A

Mehanički testovi

• Vibration test: IEC 60255-21-1, Klasa 2

• Response: 10–150 Hz, 8g / 14–150 Hz, 10g (prelazi Klasu 2)

• Endurance: 10–150 Hz, 3g (prelazi Klasu 2)

• Shock test: 25g, 10 ms, 10 impulsa po osi (X, Y, Z)

• Bump test: 25g, 10 ms, 300 impulsa

---
