AIP830

Product Overview

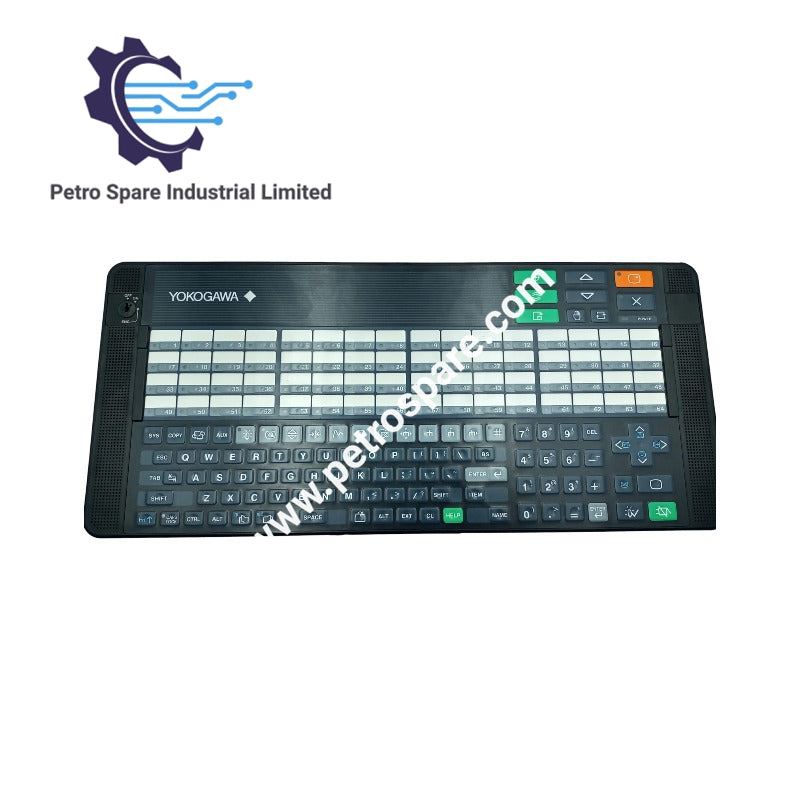

AIP830 The Yokogawa AIP830 is a ruggedized, flat-panel Operation Keyboard designed specifically for process control and plant monitoring in industrial automation systems (primarily for Yokogawa's CENTUM VP Distributed Control System).

Technical Specifications

Hardware & Interface:
The keyboard uses a flat membrane panel design and connects via two USB Type-A ports, both of which must be directly connected to the host PC. It operates through USB 2.0 for keyboard functions and USB 1.1 for sound functions, with both powered via USB.

Power Requirements:

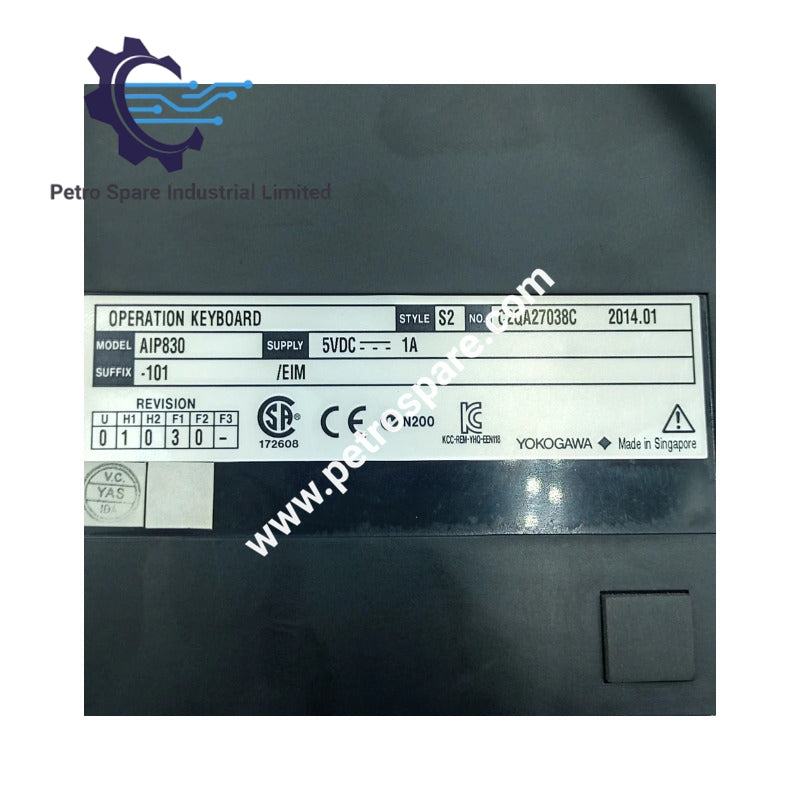

The device operates at 5 V ±5% supplied through USB, with a maximum current consumption of 1 A.

Physical Characteristics:

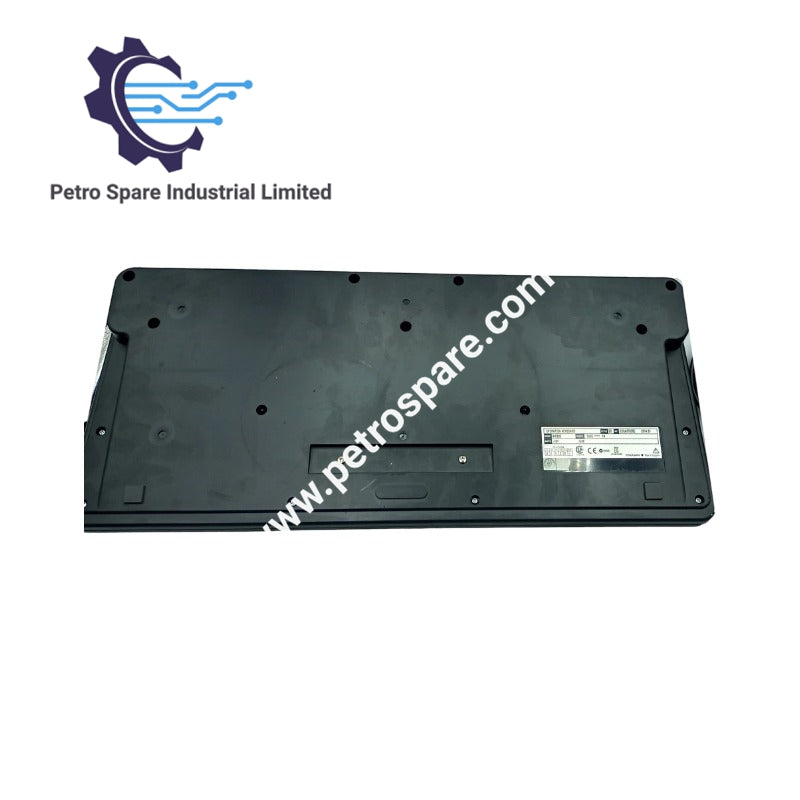

The unit measures approximately 20.3 cm × 22.9 cm × 7.6 cm and weighs about 2.0 kg without the VESA bracket or 2.5 kg with it. It features a black chassis (Munsell N1.5 equivalent) and supports desktop placement or VESA mounting (75 × 75 mm or 100 × 100 mm using M4 screws).

Environmental Conditions:
It operates in ambient temperatures from 5°C to 40°C with 20% to 80% relative humidity (non-condensing), and can be stored or transported between -20°C and 60°C.

Safety & Regulatory Compliance:
The device conforms to IEC 61010-1 Installation Category Class I and is compliant with CE, CSA, RCM, and KC certifications when used with a properly certified host PC.

---
