NFCP050-S15

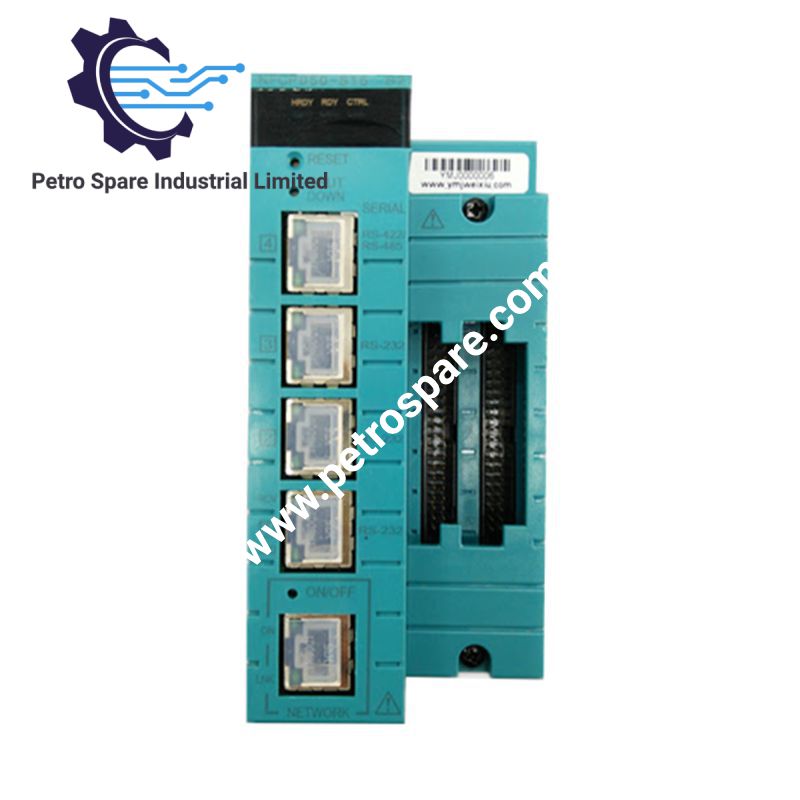

The Yokogawa NFCP050-S15 is a CPU module for the FCN-RTU platform, combining an SH-4A (SH7730) processor, 128 MB of onboard flash memory, Ethernet communication, serial interfaces, and embedded I/O. It provides digital and analog signal channels alongside pulse inputs, allowing control processing and field signal handling within one module. The specified configuration is a basic type without explosion protection.

CPU and Embedded I/O

The module integrates processing, communications, and signal interfaces in a single unit. Its embedded I/O includes 16 digital inputs, 8 digital outputs, 12 analog inputs for 1-5 V signals, one additional analog input for 0-32 V signals, two analog outputs for 4-20 mA signals, and two pulse input channels.

The two analog outputs require an external power supply. The serial interfaces are specified as non-isolated, so electrical isolation must not be assumed when evaluating field wiring and interface requirements.

Communication Interfaces

The NFCP050-S15 provides one Ethernet port, three RS-232 ports, and one RS-422/RS-485 port. All four serial ports use RJ45 modular jacks. The three RS-232 ports are identified as SERIAL 1, SERIAL 2, and SERIAL 3; SERIAL 4 supports RS-422/RS-485.

The CPU and LAN status indicators provide operating information. HRDY indicates hardware readiness, RDY indicates system readiness, and CTRL indicates control readiness. The LAN indicators show network power status and link or activity, while RCV and SND indicate serial data reception and transmission.

Technical Specifications

Parameter	Specification
Model	NFCP050-S15
Brand	Yokogawa
Product Type	FCN-RTU CPU Module
CPU	SH-4A (SH7730), 256 MHz
Onboard Flash Memory	128 MB
Ethernet	1 port
RS-232	3 ports, non-isolated
RS-422/RS-485	1 port, non-isolated
Analog Inputs	12 channels, 1-5 V; 1 channel, 0-32 V
Analog Outputs	2 channels, 4-20 mA; external power supply required
Digital Inputs	16 channels, 24 VDC
Digital Outputs	8 channels, 24 VDC
Pulse Inputs	2 channels
Power Consumption	1.6 W to 2.9 W, depending on network and embedded I/O configuration
Operating Temperature	-40 to 70 deg C
Dimensions (L x W x H)	14.25 x 6.58 x 13 cm
Weight	0.57 kg
Explosion Protection	Basic type without explosion protection

Ordering Code

The NFCP050-S15 ordering code identifies the CPU module and its specified configuration. Yokogawa's FCN-RTU hardware documentation identifies -S as Standard type, 1 as Extended type, and 5 as Basic type without explosion protection.

• NFCP050: CPU module for FCN-RTU.
• S: Standard type.
• 1: Extended type.
• 5: Basic type without explosion protection.

Frequently Asked Questions

Q: What communication interfaces are available on the NFCP050-S15?

A: It has one Ethernet port, three non-isolated RS-232 ports, and one non-isolated RS-422/RS-485 port. The serial ports use RJ45 modular jacks.

Q: Does the NFCP050-S15 include built-in I/O?

A: Yes. It includes digital inputs and outputs, analog inputs and outputs, and two pulse input channels. The analog outputs require an external power supply.

Q: Is the NFCP050-S15 suitable for explosion-protected installations?

A: The S15 configuration is identified as a basic type without explosion protection. Do not select it where a specific hazardous-area approval is required without verifying the applicable installation requirements.

---
