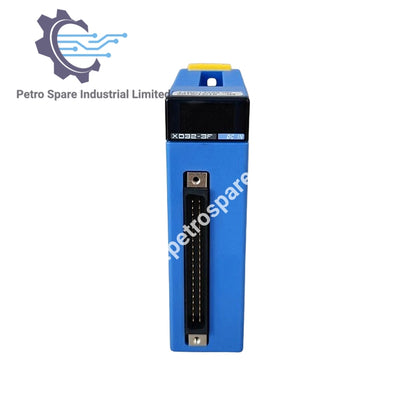

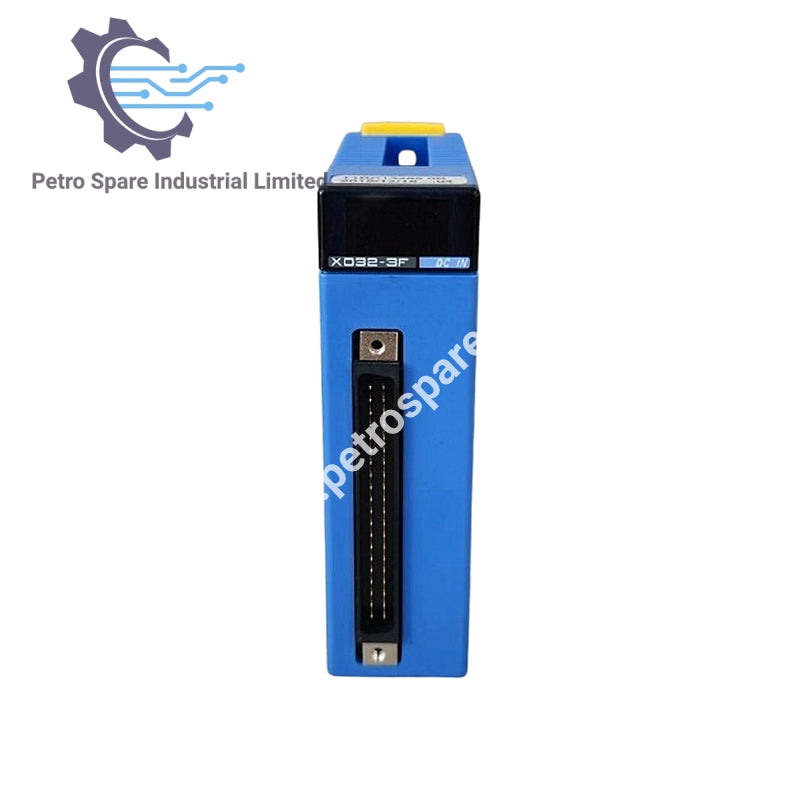

F3XD32-3F

Product Overview

• Model: F3XD32-3F

• Type: DC input module

• Platform: Yokogawa FA-M3 series

• Number of Inputs: 32

Input Specification

• Input Type: DC voltage (plus isolation) / Photocoupler DC

• Isolation Method: Photocoupler

• Rated Input Voltage: 24 V DC

• Rated Current: 4.1 mA per point

• Operating Voltage Range: 20.4 – 26.4 V DC

• ON Voltage/Current: ≥16.0 V DC, ≤5.8 mA DC

• OFF Voltage/Current: ≤3.2 V DC, ≤0.9 mA DC

• Maximum Ratio of Inputs Turned On Simultaneously: 100%

Response Time

• ON → OFF: Input sampling time selectable (62.5 μs, 125 μs, 250 μs, 1 ms, 16 ms)

• OFF → ON: Input sampling time selectable (62.5 μs, 125 μs, 250 μs, 1 ms, 16 ms)

---
