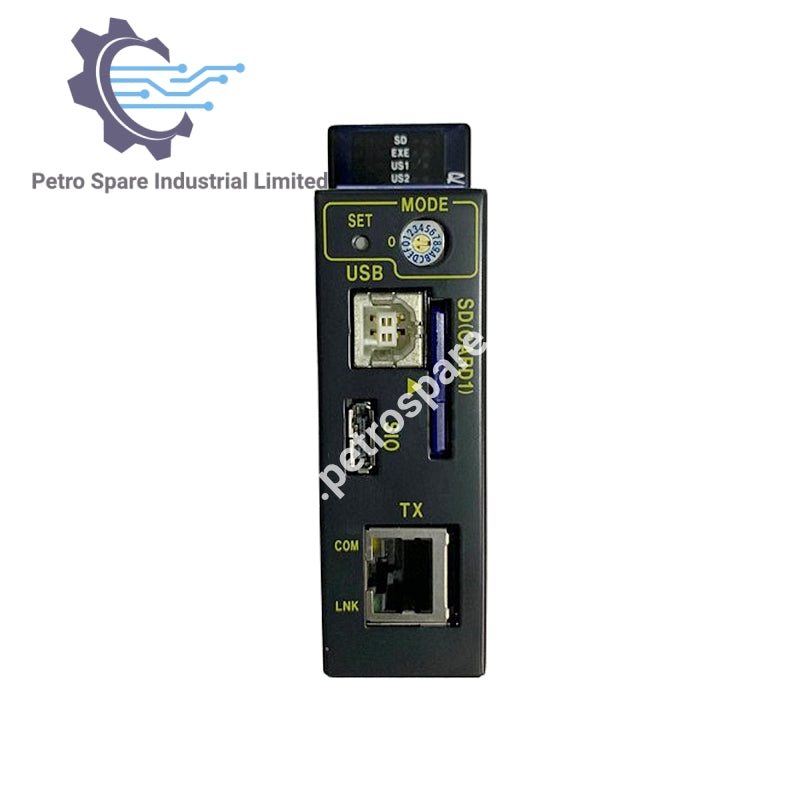

F3SP66-4S

Overview

• Model: F3SP66-4S

• Type: Sequence CPU module

• Control Method: Repetitive computation based on stored programs

• Control Computation Method: Refresh method / Direct I/O instruction

• Programming Language: Object ladder language

• Maximum I/O Points: 4096

Relay Specification

• Internal Relays (I): 16384

• Shared Extended Relays (E): 2048

• Extended Shared Relays (E): 2048

• Link Relays (L): 8192

• Special Relays (M): 9984

Timer & Counter Specification

• Timers (T): 1024

• Counters (C): 1024

Register Specification

• Data Registers (D): 16384

• Shared Registers (R): 1024

• Extended Shared Registers (R): 3072

• File Registers (B): 32768

• Link Registers (W): 8192

• Special Registers (Z): 1024

Program Specification

• Labels: 1024

• Input Interrupt Processing Routines: 4

---
