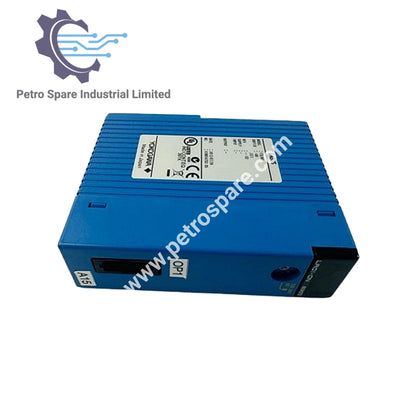

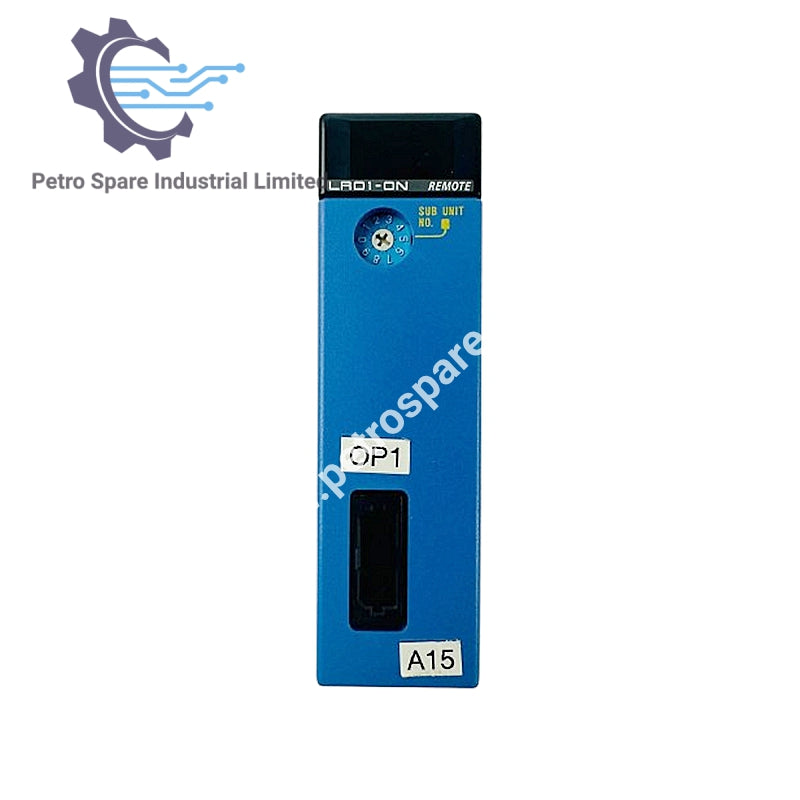

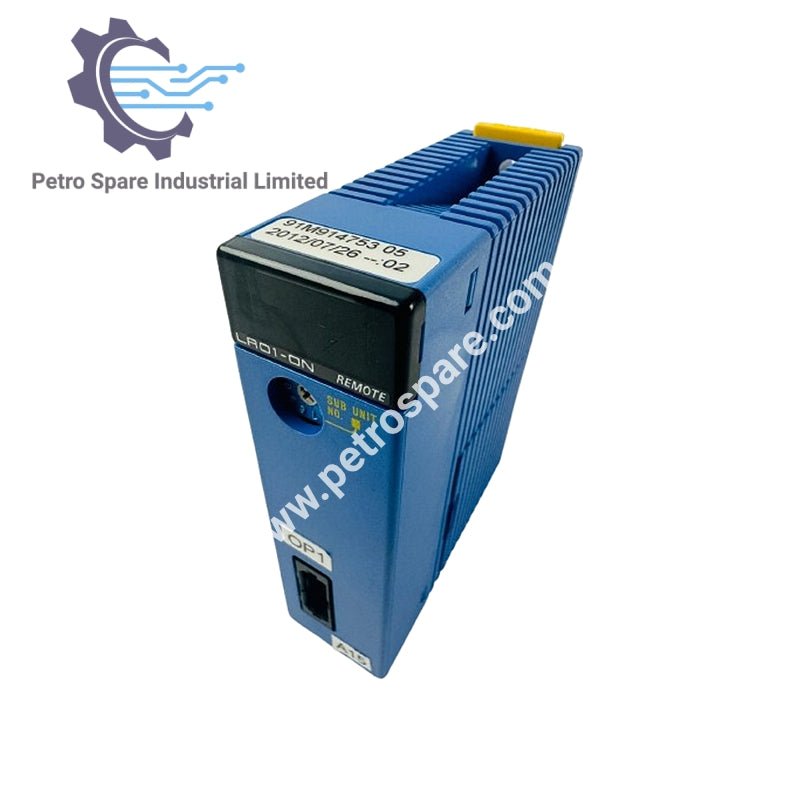

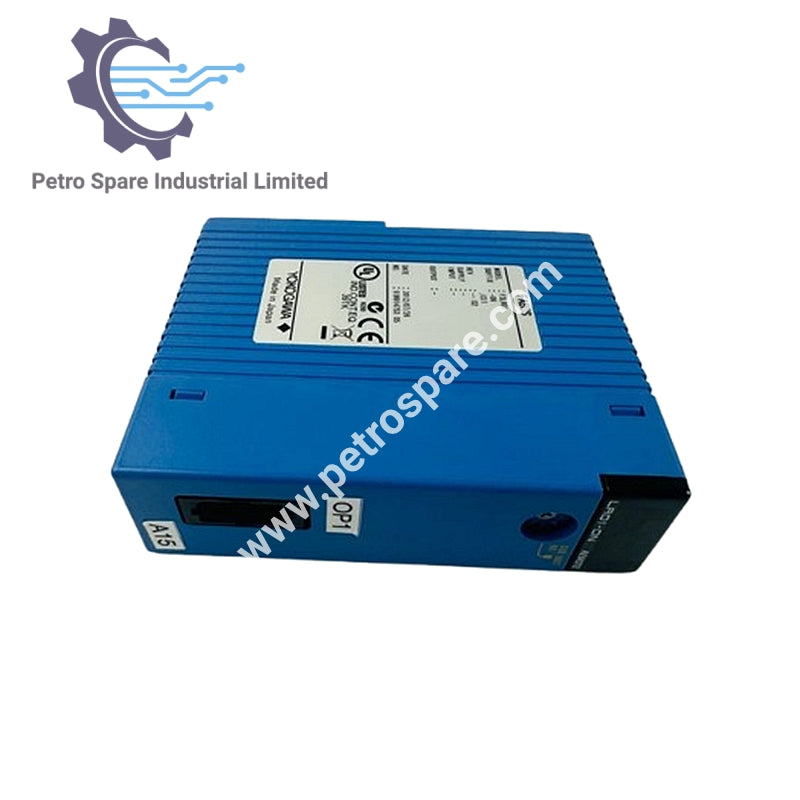

F3LR01-0N

Overview

• Model: F3LR01-0N

• Type: Fiber-Optic FA-bus Communication Module

Communication Specification

• Transmission Speed: 10 Mbps

• Transmission Media: 2-core optical fiber (hard plastic clad quartz fiber-optic, H-PCF)

• Transmission Distance:

  • Max. total distance: 200 m

  • Max. distance between stations: 200 m

• Transmission Configuration: Star topology

• Max. Number of Sub-units (Systems): 7

Reliability Features (RAS)

• Error Handling:

  • Shutdown I/O contact output on transmission channel error

  • Reporting of transmission channel error location

Electrical Specification

• Current Consumption: 220 mA

Mechanical Specification

• Dimensions (W × H × D): 28.9 × 100 × 83.2 mm

• Weight: 100 g

Environmental Specification

• Operating Temperature: 0–55 °C

• Storage Temperature: -20–75 °C

• Operating Humidity: 10–90% RH (non-condensing)

• Storage Humidity: 10–90% RH (non-condensing)

• Atmosphere Requirement: Free of corrosive gases, flammable gases, or heavy dust

---
