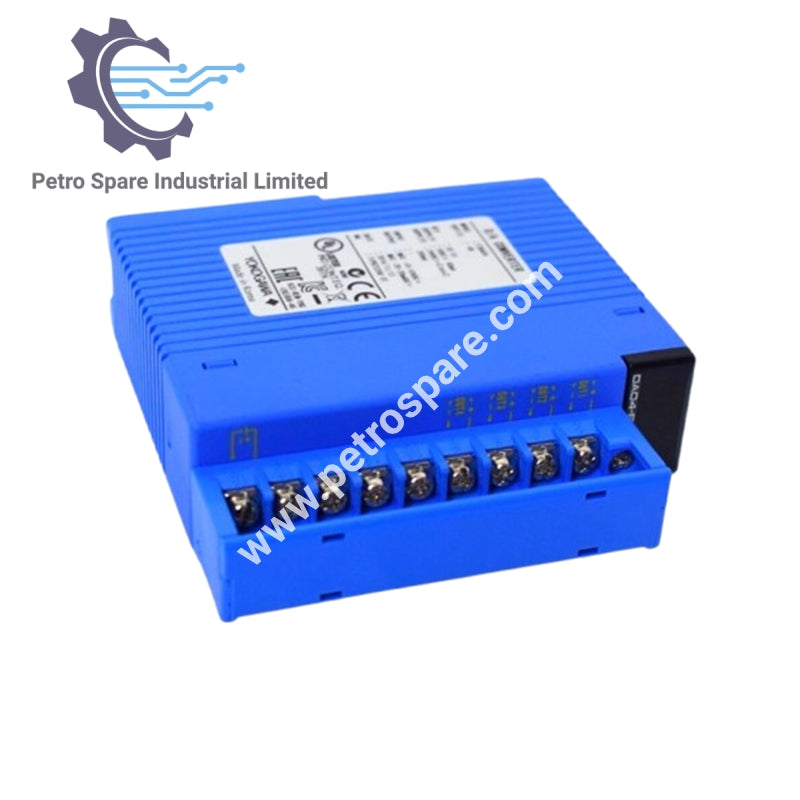

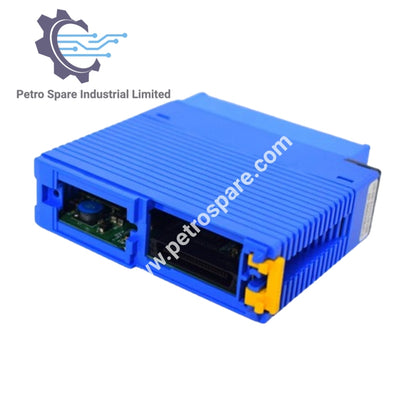

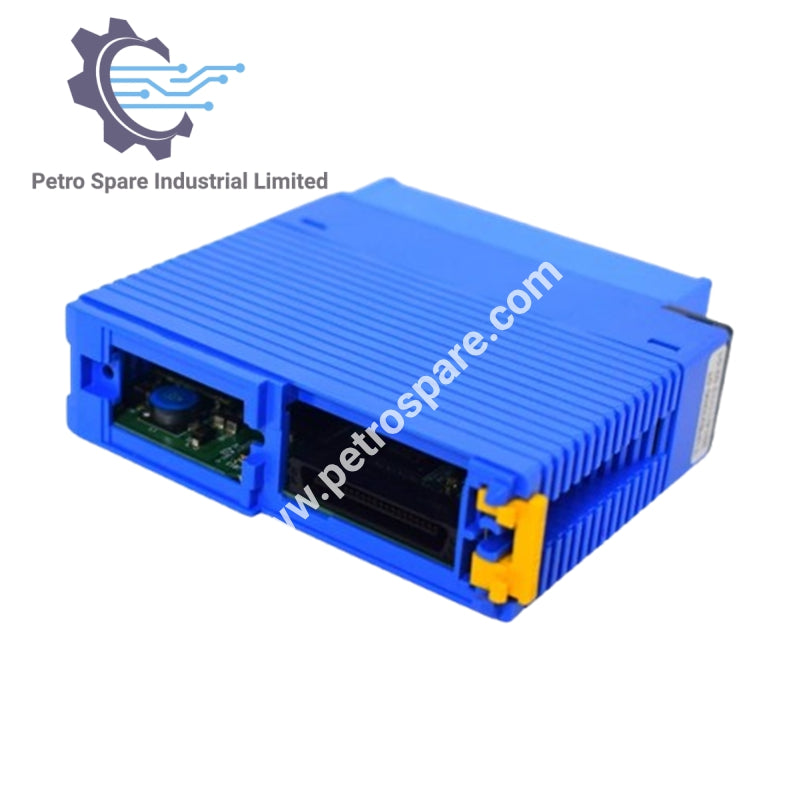

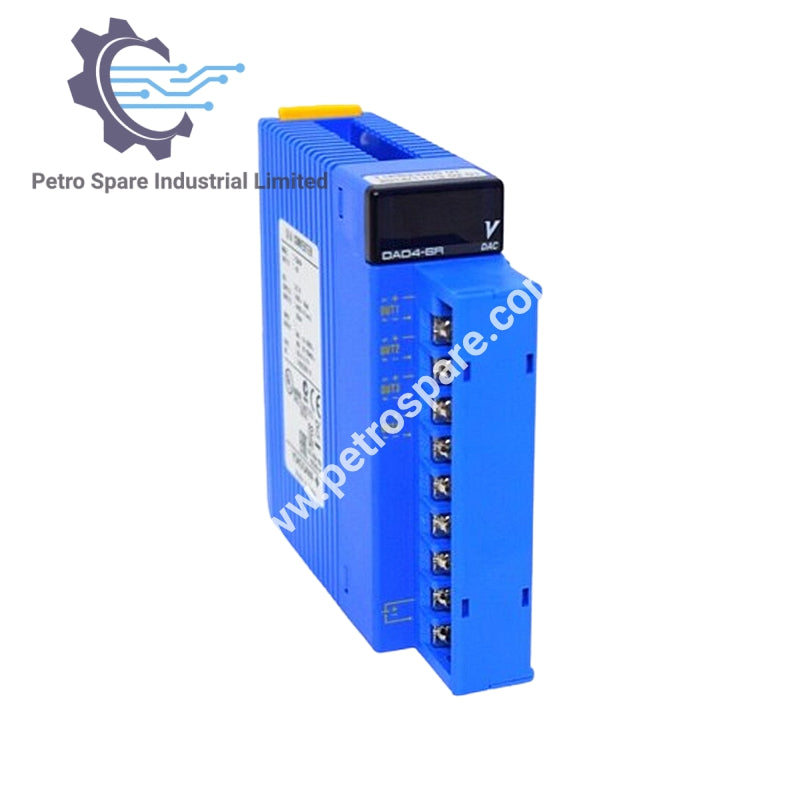

F3DA04-6R

Overview

• Model: F3DA04-6R

• Type: Analog Output Module

• Series: Yokogawa FA-M3 PLC

• Number of Outputs: 4

• Weight: 180 g

Electrical Specification

• Rated Voltage: 24 VDC

• Allowable Voltage Range: 19.2–30 VDC

• Current Consumption: 200 mA (inrush 1 A)

• Isolation:

  • Between output terminals and internal circuitry: isolated (digital signal isolation coupler, capacitance coupling), withstands 50 VDC for 1 min

  • Between output terminals or between output terminals and external supply: not isolated, common negative

• Voltage Output Impedance: 0.5 Ω max

• Current Output Impedance: 3 MΩ max

• Disabled Output Impedance: ≥1 MΩ (≥100 kΩ if external supply off)

• Leakage Current (Disabled): ±0.5 μA max

Output Specification

• Analog Outputs:

  • ±10 VDC up to 10 mA

  • ±20 mA up to 600 Ω

  • ±50 mA up to 240 Ω

  • ±100 mA up to 240 Ω

Mechanical Specification

• Dimensions (W × H × D): 28.9 × 100 × 106.2 mm

• External Connection: 18-point terminal block, M3.5 screws

Environmental Specification

• Operating Temp: 0–55 °C

• Storage Temp: -20–70 °C

• Humidity: 5–95%, non-condensing

---
