AFV10D-F1

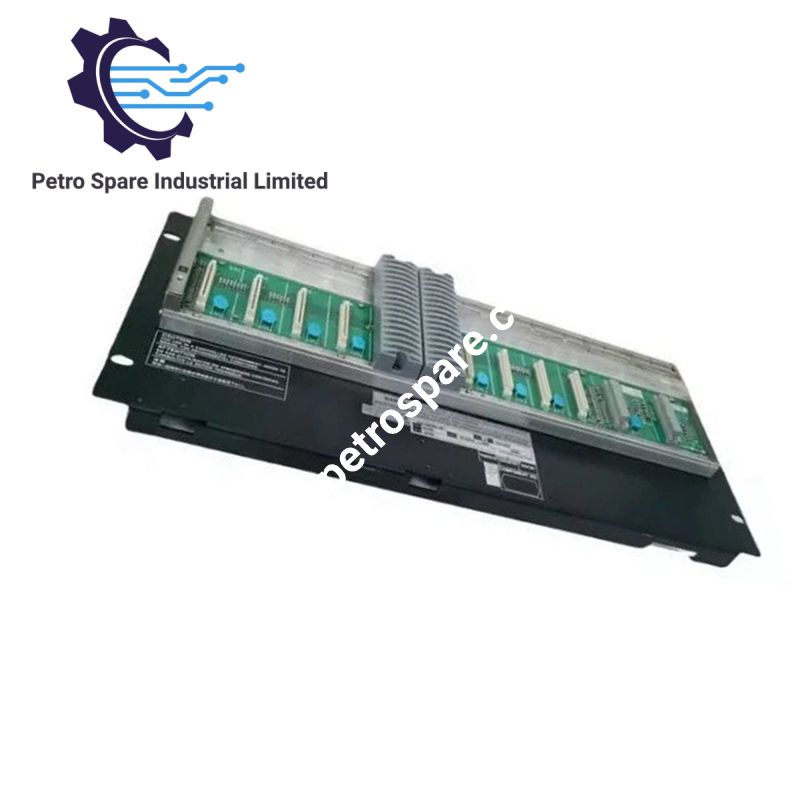

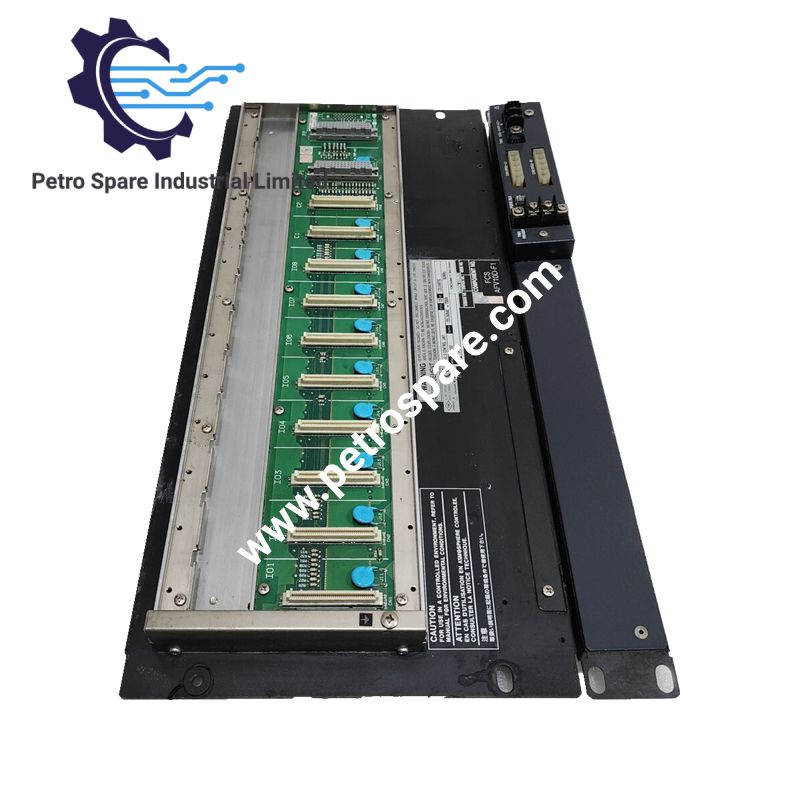

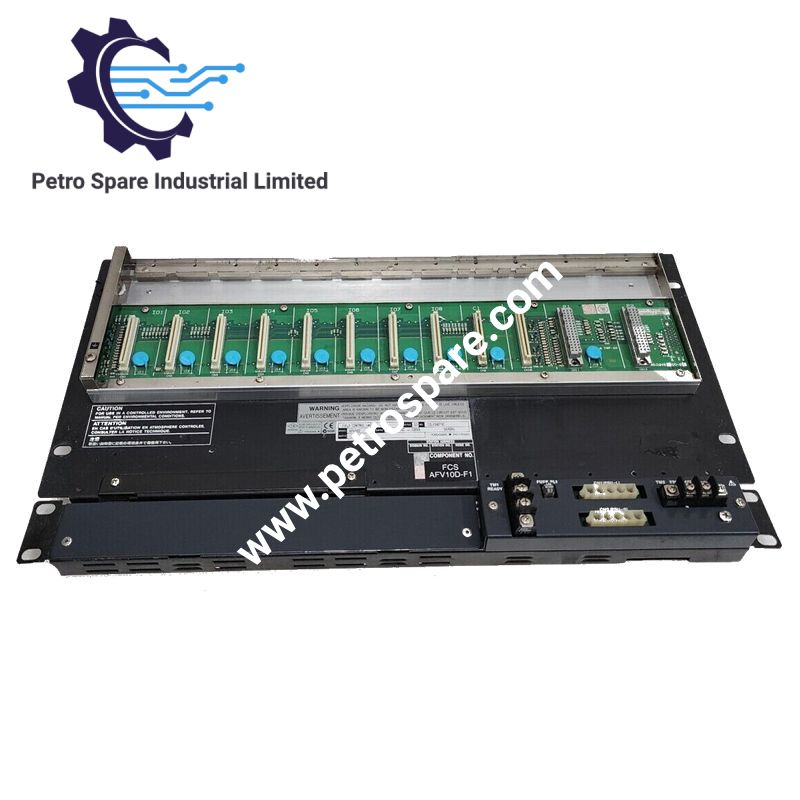

The Yokogawa AFV10D-F1 is a duplexed Field Control Unit (FCU) for the CENTUM VP distributed control system. It executes control functions, manages field I/O data, and communicates with the control network through Vnet/IP. The unit supports a 19-inch rack-mounted configuration and redundant processor and power supply arrangements. Its interface, power supply, memory backup, and environmental requirements should be verified when selecting a replacement or configuring an existing control station.

Control Functions and Redundancy

The FCU forms the processing core of a Field Control Station (FCS). It executes configured control logic and exchanges process data with field I/O equipment. The duplexed architecture provides redundant processing and power supply paths; actual failover behavior depends on the installed hardware configuration and system setup.

Vnet/IP and Field I/O Connectivity

The unit is specified for dual-redundant Vnet/IP communication at 1 Gbps full duplex. The supplied network requirements specify CAT5e or better UTP cabling with RJ45 connectors and a maximum cable length of 100 m. Node capacity is specified as up to 14 nodes per FCU, including up to 9 ESB bus node units.

Technical Specifications

Parameter	Specification
Model	AFV10D-F1
Brand	Yokogawa
Product Type	Duplexed Field Control Unit
System Compatibility	CENTUM VP; control function compatibility requires verification
Processor	VR5432, 133 MHz
Main Memory	32 MB
Memory Backup	Battery backup; maximum 72 hours; minimum recharge time 48 hours
Processor Redundancy	Dual-redundant
Power Supply Configuration	Dual-redundant power supply
Control Network	Dual-redundant Vnet/IP
Network Speed	1 Gbps, full duplex
Network Cabling	CAT5e or better UTP, RJ45
Maximum Network Cable Length	100 m
Connectable Nodes	Up to 14 nodes per FCU
ESB Bus Node Capacity	Up to 9 units
Status Contact Output	NC and C terminals
Status Contact Rating	30 V DC, maximum 0.3 A
AC Power Supply	100-120 V AC, 50/60 Hz; or 220-240 V AC, 50/60 Hz
DC Power Supply	24 V DC
Power Consumption	200 VA at 100-120 V AC; 230 VA at 220-240 V AC; 5.5 A at 24 V DC
Mounting	19-inch rack
Mounting Hardware	8 x M5 screws with insulating bushes
Dimensions	207 x 265.9 x 482.6 mm
Weight	8.0 kg
Operating Temperature	-10 to +55 deg C
Conformal Coating	G3 option stated in supplied data; exact suffix configuration requires verification

Power and Status Monitoring

The specified supply options cover two AC voltage ranges and a 24 V DC supply. These are alternative supply configurations, not a single universal input range. The status contact provides NC and common terminals for external status monitoring, with the connected circuit limited by the stated contact rating.

Frequently Asked Questions

Q: Does the AFV10D-F1 support redundant control processing?

A: The supplied specifications describe dual-redundant processors and power supplies. Confirm the installed hardware and configured control system before assuming a particular failover behavior.

Q: What network cable can be used with this unit?

A: The supplied data specifies CAT5e or better UTP cable with RJ45 connectors, with a maximum cable length of 100 m. Verify the applicable network installation requirements for the installed CENTUM VP configuration.

Q: Can the unit be powered directly from 24 V DC?

A: The supplied specifications list 24 V DC as a power supply option, with a stated consumption of 5.5 A. Confirm the complete model code and power supply configuration before ordering or replacing the unit.

---
