VMIVME-7807

Product Overview

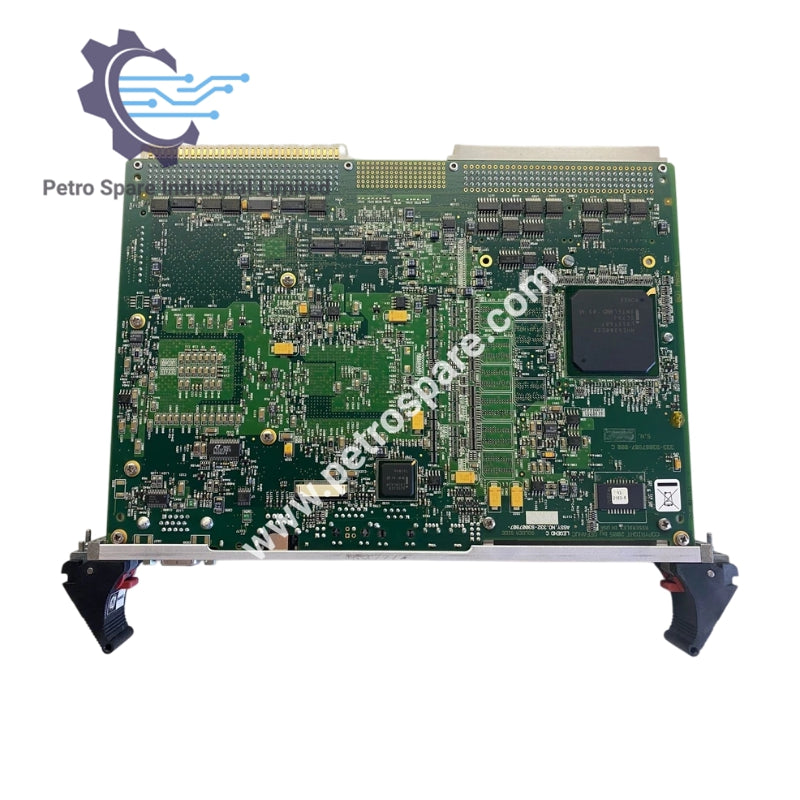

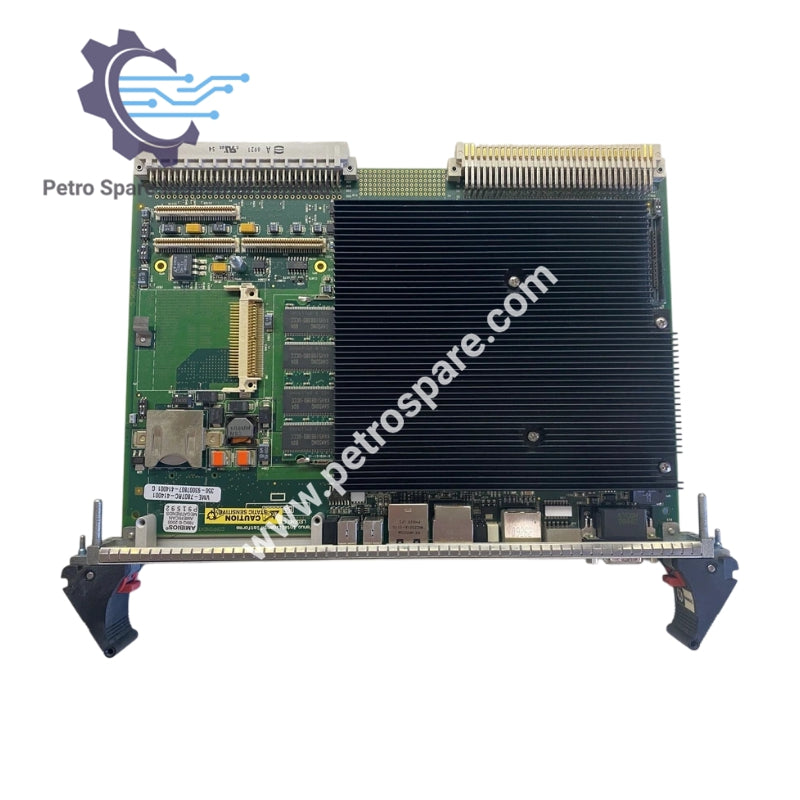

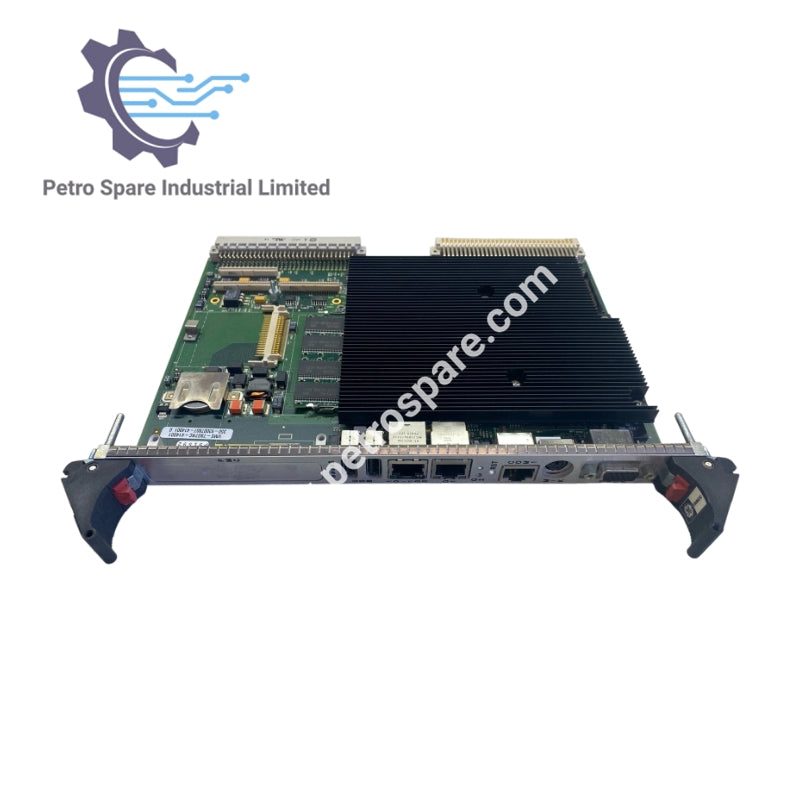

VMIVME-7807: The VMIVME-7807 supports DDR SDRAM with optional ECC for a maximum memory capacity of 1.5 GB.

Technical Specifications

• Memory: DDR SDRAM with optional ECC, dual-ported to the VMEbus, up to 1.5 GB
• Ethernet Interfaces:
  • 10/100 Mbit LAN via Intel 82551ER, front panel RJ45 with network status indicators
  • Dual Gigabit Ethernet via Intel 82546EB, one interface front panel, one to P2 backplane
• Form Factor: 6U single-slot Eurocard
  • Height: 9.2 in (233.4 mm)
  • Depth: 6.3 in (160 mm)
  • Thickness: 0.8 in (20.3 mm)
• Power Requirements: +5 VDC (±5%), typical and maximum TBD; 1.1 GHz option TBD
• Operating Temperature: 0 to 50 °C (1.1 GHz option: 0 to 60 °C), airflow >450 LFM
• Storage Temperature: -25 to 80 °C
• Relative Humidity: 10% to 90%, noncondensing
• VMEbus Interface:
  • DTB Master: BLT32/BLT64, A32/D32, A24/D32, A16/D32
  • DTB Slave: BLT32/BLT64, A32/D32, A24/D32, A16/D32
  • Requester: Programmable BR(3–0), ROR, RWD, BCAP
  • Interrupt Handler: IH(1–7) D8(O), Interrupter: IRQ7* to IRQ1*
  • Arbiter: SGL, PRI, RRS; BTO: 4 to 1,024 µs programmable
  • Compliance: Rev. C.1
• PMC Expansion Site Connector: 3.3 V signaling, 64-bit PCI-X, 66 MHz maximum
• MTBF: TBD
