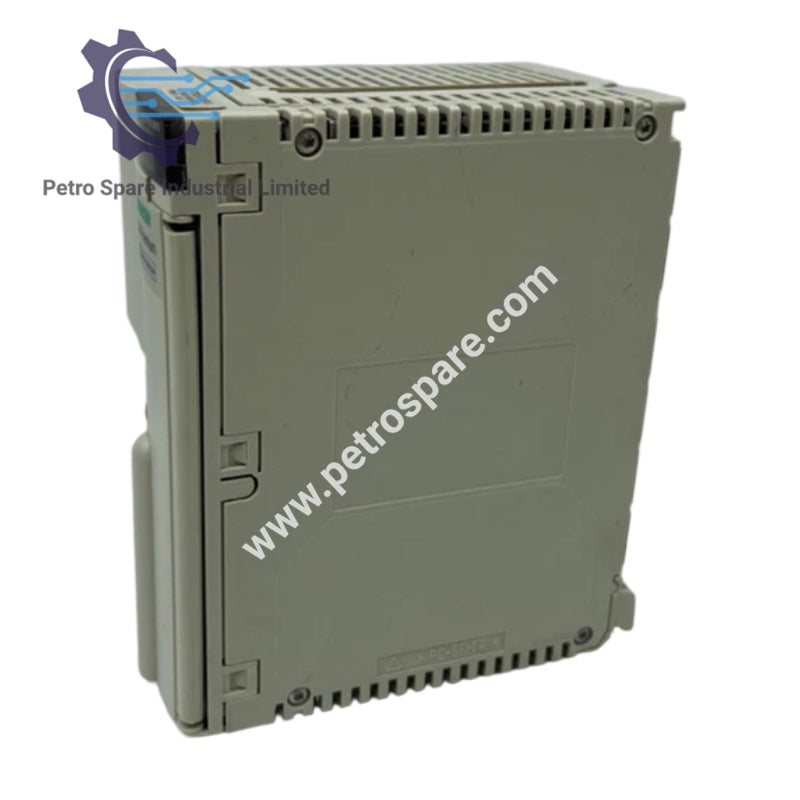

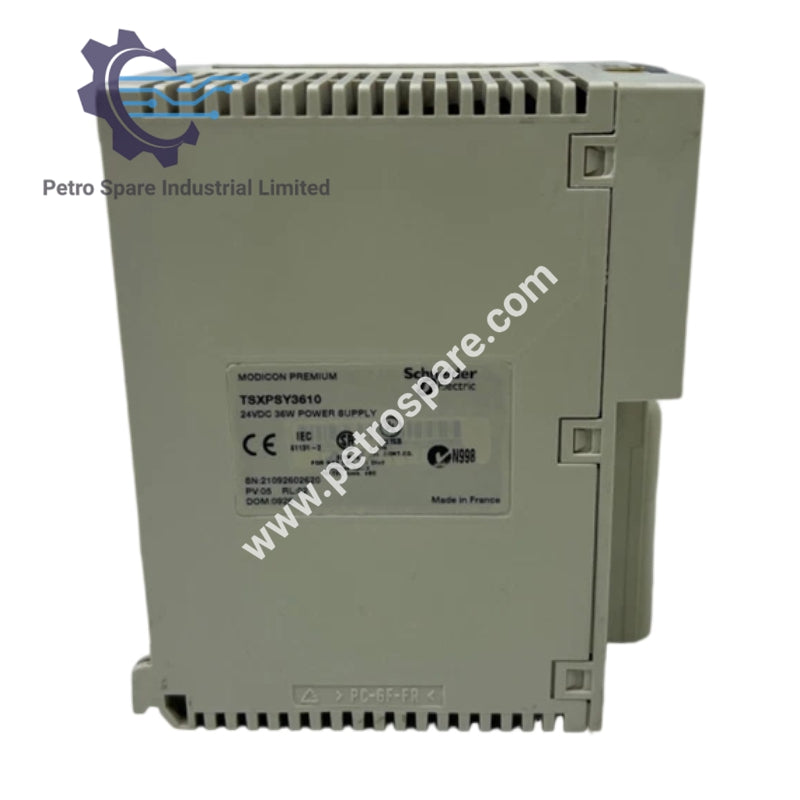

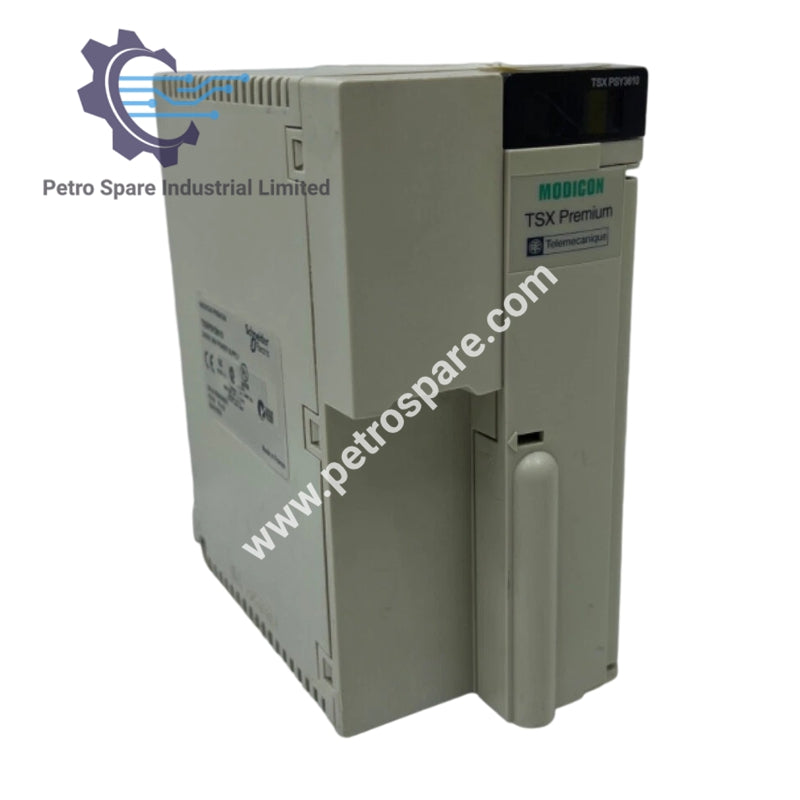

TSXPSY3610

Product Overview

TSXPSY3610 is a dual-output power supply module designed to deliver stable 24V and 5V DC outputs with integrated protection features and diagnostic indicators for reliable operation.

Technical Specifications

• Power Supply:
Input Voltage: 24VDC (19.2–30V)
Input Current: ≤1500mA
Inrush Current: 100A
It on Startup: 12.5A²·s
It on Startup: 0.2A·s

• Output Power:
Total Output Power: 30W
24VDC: 15W, 0.6A (relay power supply)
5VDC: 15W, 3A

• Electrical and Physical:
Dielectric Strength: 2000V (primary/earth and primary/secondary)
Immunity to Microbreaks: 1ms
Weight: 0.54kg
Module Format: Standard

• Environmental and Certifications:
Operating Temperature: 0–60°C
Storage Temperature: -25–70°C
Humidity: 10–95% non-condensing (operation), 5–95% (storage)
Altitude: up to 2000m
Protection Rating: IP20
Pollution Degree: 2

---
