TSXP573623A

Product Overview

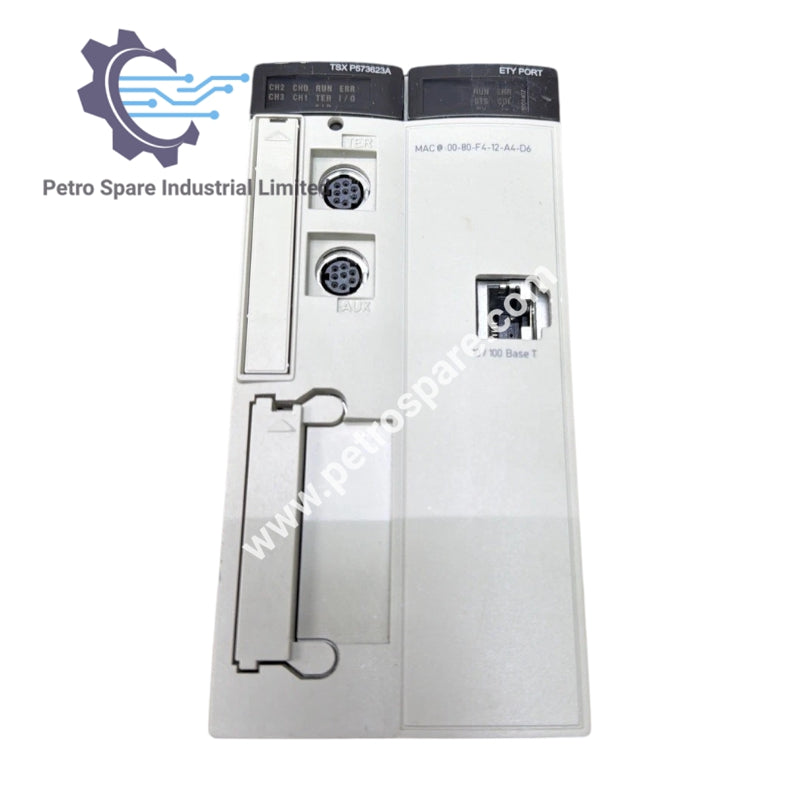

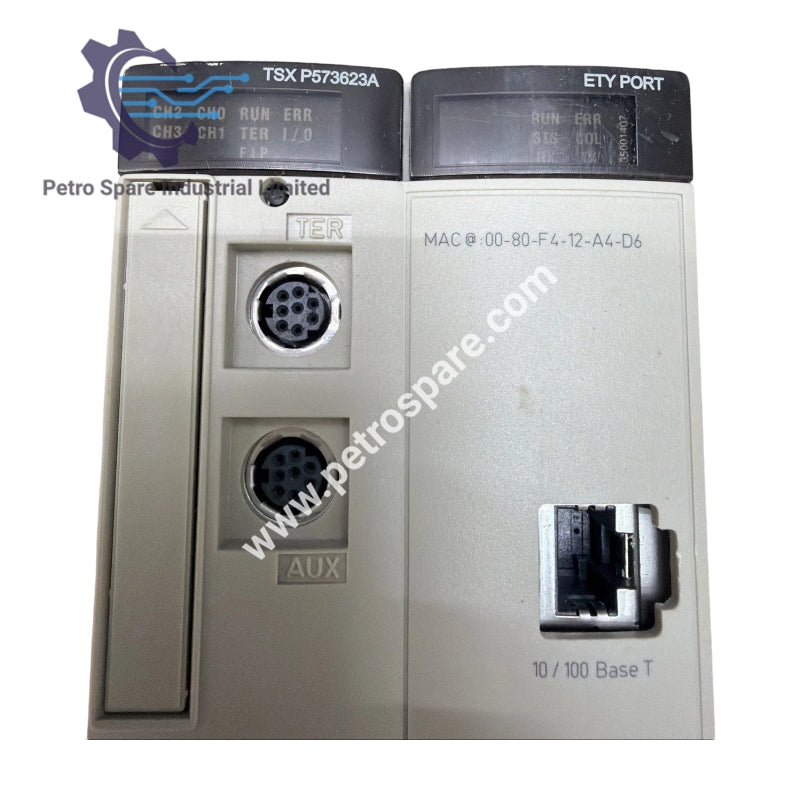

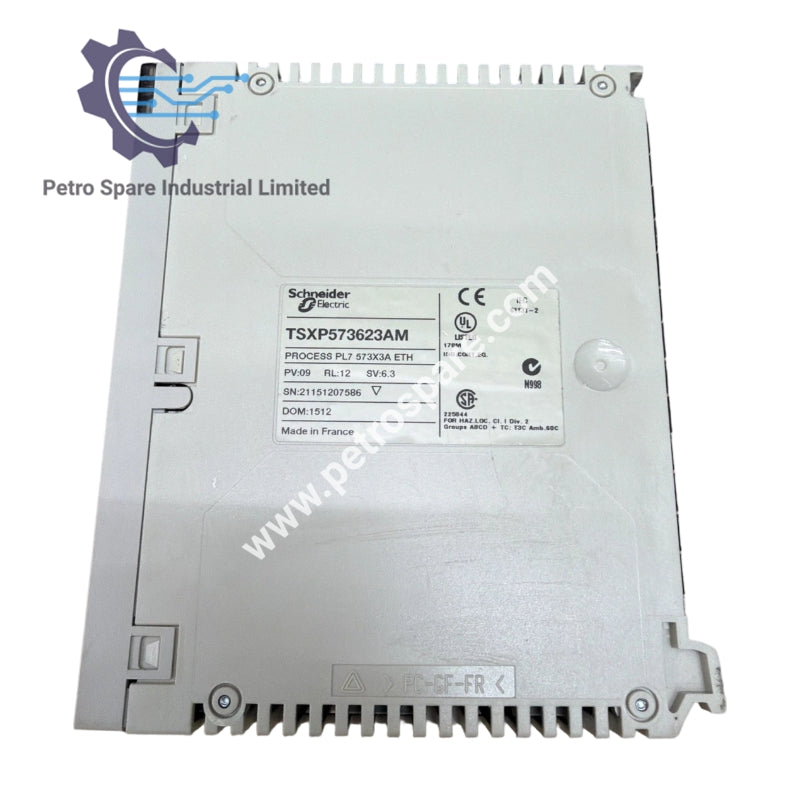

TSXP573623AM is a double-format PL7 processor from the Modicon Premium Automation platform.

Technical Specifications

Processor Type: Double-format PL7 processor
Software Designation: PL7 Junior/Pro
Concept: Transparent Ready
Number of Racks: 16 racks with 4/6/8 slots, 8 racks with 12 slots
Number of Slots: 64, 96, 128
Discrete I/O Capacity: 1024 I/O
Analogue I/O Capacity: 128 I/O
Application Specific Channels: ≤32
Process Control Channels: ≤15, up to 45 simple loops
Integrated Connection Type: Ethernet TCP/IP RJ45 10/100 Mbit/s
Non-Isolated Serial Link: 2 female mini DIN, 19.2/115 kbit/s
Communication Module Capacity: 2 fieldbus, 2 network modules, 1 fieldbus module (1 if CANopen used), 8 AS-Interface bus modules
Memory: Internal RAM 64 Kwords program/data (without PCMCIA), 80 Kwords data (with PCMCIA)
PCMCIA Card: 384 Kwords program, 2688 Kwords additional data storage
Maximum Object Area Size: 16384 %Mi internal bits, 30.5 %MWi internal words, 32 %KWi constant words
Application Structure: 1 fast task, 1 master task, 64 event tasks
Execution Time per Instruction: 0.12 µs Boolean (without PCMCIA), 0.17 µs Boolean (with PCMCIA), 0.17 µs word/fixed-point arithmetic (without PCMCIA), 0.33 µs word/fixed-point arithmetic (with PCMCIA), 2.5 µs floating point (without PCMCIA), 2.6 µs floating point (with PCMCIA)

Environment:
• Standards: 73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC, CSA C22.2 No 142, IEC 61131-2, UL 508, CSA C22.2 No 213 Class I Division 2 Groups A-D
• Certifications: ABS, BV, DNV, GL, LR, RINA, RMRS
• Operating Temperature: 0…60 °C
• Storage Temperature: -25…70 °C
• Relative Humidity: 10…95 % without condensation (operation), 5…95 % without condensation (storage)
• Operating Altitude: 0…2000 m
• Protective Treatment: TC
• IP Degree of Protection: IP20
• Pollution Degree: 2

---
