TSXDEY16A5

Product Overview

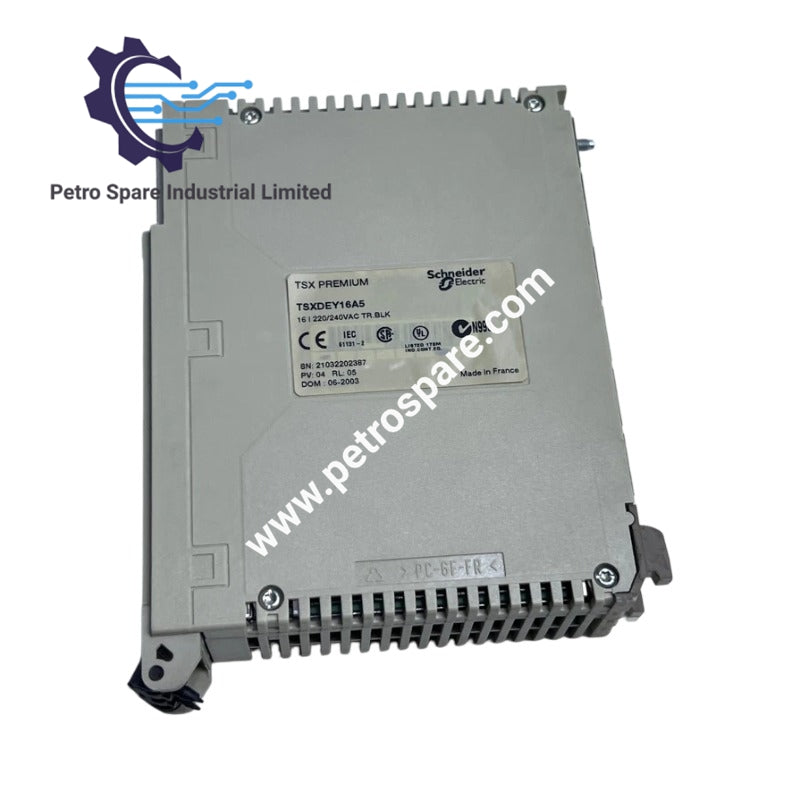

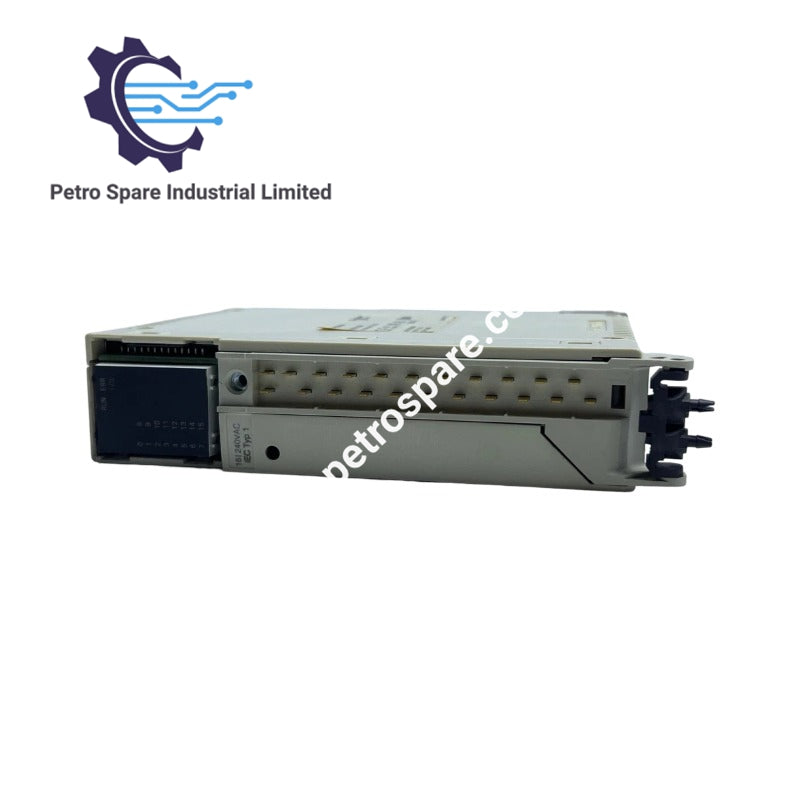

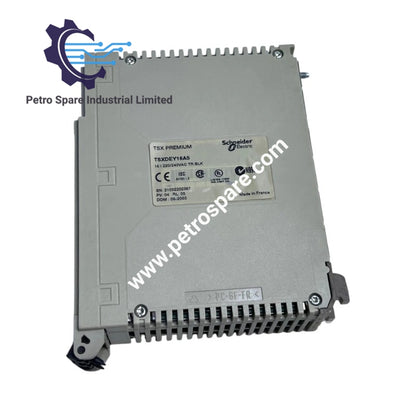

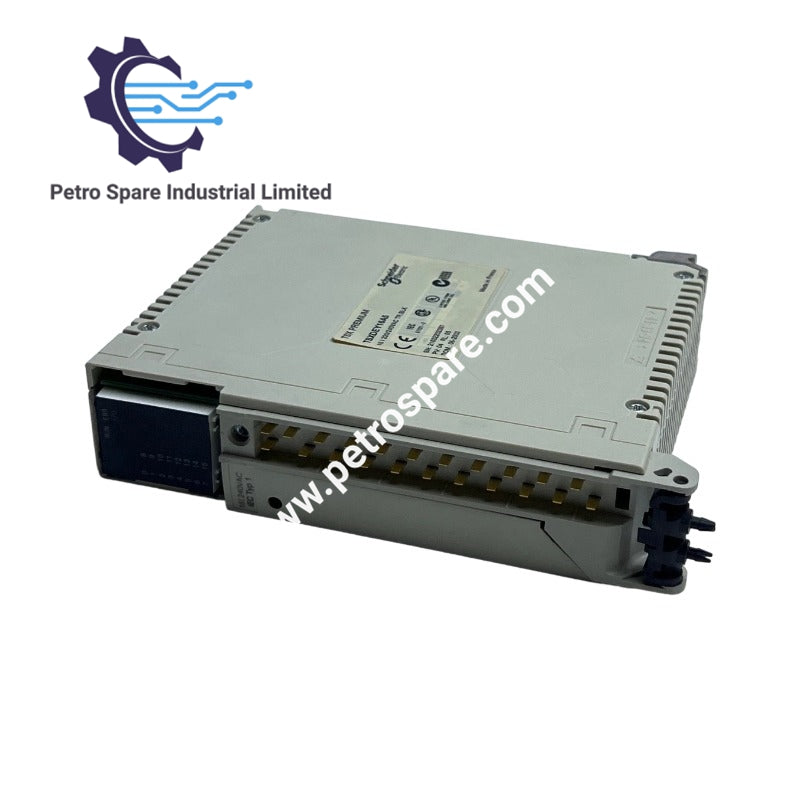

TSXDEY16A5 is a 16-channel 200–240 V AC discrete input module from the Modicon Premium Automation platform designed for capacitive isolated inputs compliant with EN/IEC 61131-2 Type 2.

Technical Specifications

• Discrete input type: 16 capacitive isolated inputs, EN/IEC 61131-2 Type 2
• Rated input voltage: 200–240 V AC
• Frequency range: 47–63 Hz (50/60 Hz nominal)
• Sensor power supply: 170–264 V AC
• Input compatibility: 2-wire and 3-wire proximity sensors (EN/IEC 60947-5-2)
• Discrete input current: 15 mA
• Guaranteed ON state voltage: ≥159 V
• Guaranteed ON state current: ≥6 mA
• Guaranteed OFF state voltage: ≤40 V
• Guaranteed OFF state current: ≤4 mA
• Input impedance: 20 kΩ at ON state
• Response time: ≤10 ms / ≤20 ms
• Insulation resistance: <10 MΩ at 500 V DC
• Power dissipation: 0.97 W
• Electrical connection: Screw terminal
• Current consumption: 80 mA at 5 V DC
• Module format: Standard
• Product weight: 0.36 kg (0.79 lb)
• Marking: CE
