TSXAMZ600

Product Overview

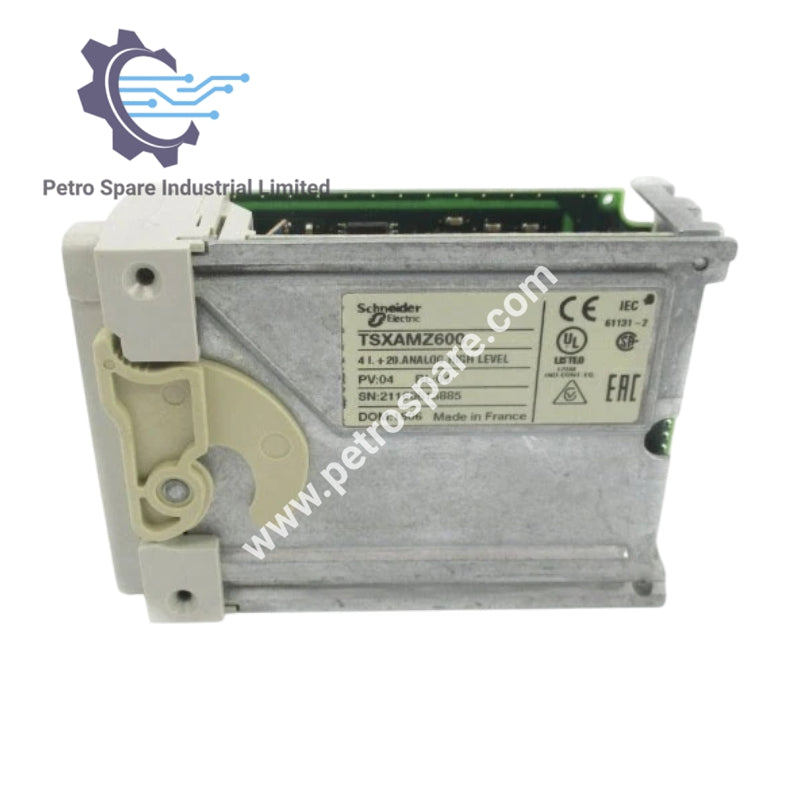

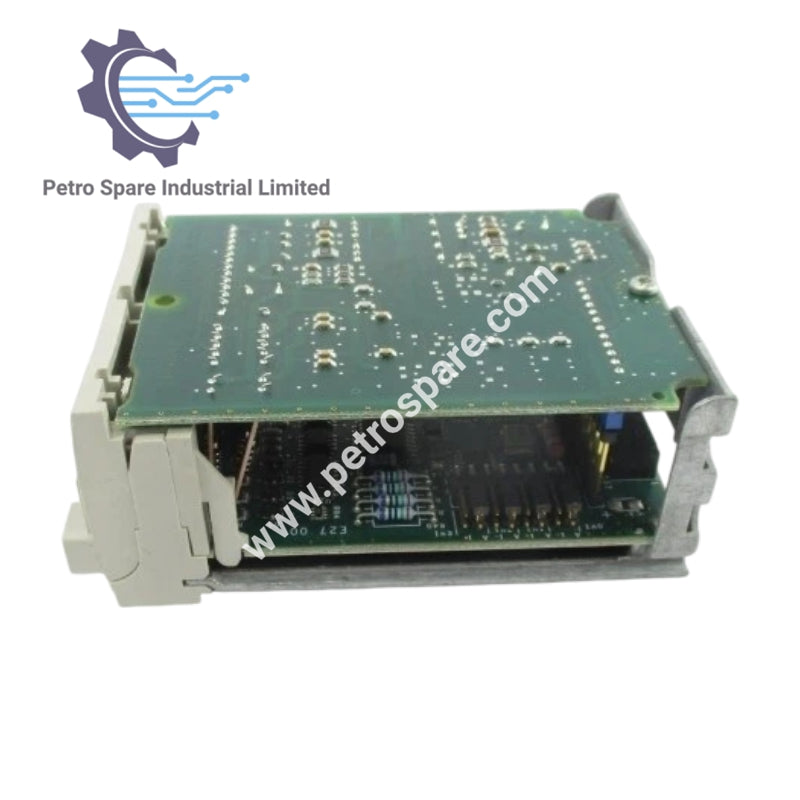

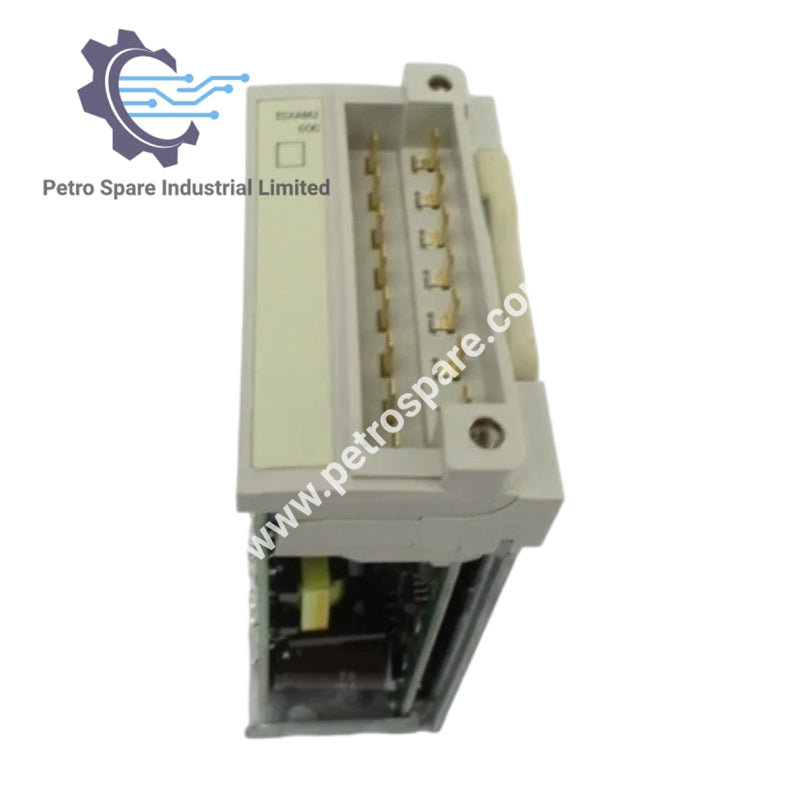

The TSXAMZ600 is an analogue I/O module featuring 4 inputs and 2 outputs designed for the Modicon TSX Micro automation platform.

Technical Specifications

• Channels: 4 inputs and 2 outputs
• Analogue Input Types: 4...20 mA, 0...20 mA, +/- 10 V, and 0...10 V
• Analogue Output Types: 4...20 mA, 0...20 mA, 0...10 V, and +/- 10 V
• Analogue/Digital Conversion: 11 bits for 0...10 V and 0...20 mA / 4...20 mA, and 11 bits + sign for +/- 10 V
• Measurement Resolution: 0...20 mA, 4...20 mA, 0...10 V, or +/- 10 V
• Acquisition Period: 16 ms for 0...20 mA, 4...20 mA, 0...10 V, or +/- 10 V
• Response Time: 400 µs for all input and output ranges
• Output Load: <= 0.6 Ohm for current signals and >= 2 Ohm for voltage signals
• Protection Type: Short-circuit protection for all voltage and current configurations
• Temperature Drift: Ranges from 0.054 %/10 °C to 0.107 %/10 °C depending on the signal configuration
• Input Impedance: 250 Ohm for current inputs and 2.2 Ohm for voltage inputs
• Current Consumption: 180 mA
• Isolation Voltage: 1000 V AC
• Product Weight: 0.53 lb (US) (0.24 kg)
