6ES7350-2AH01-0AE0

Product Overview

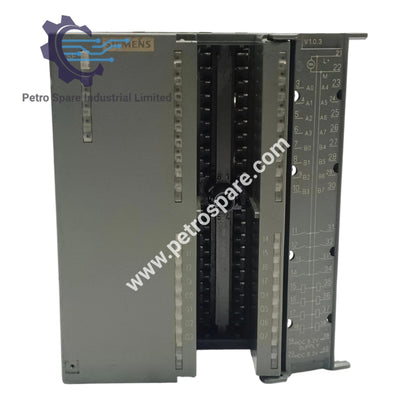

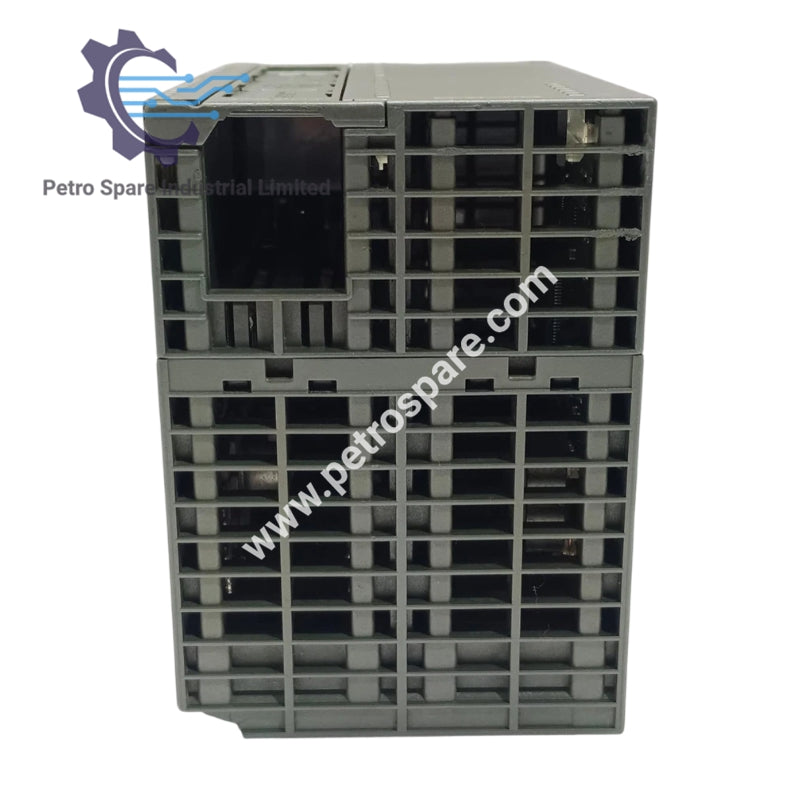

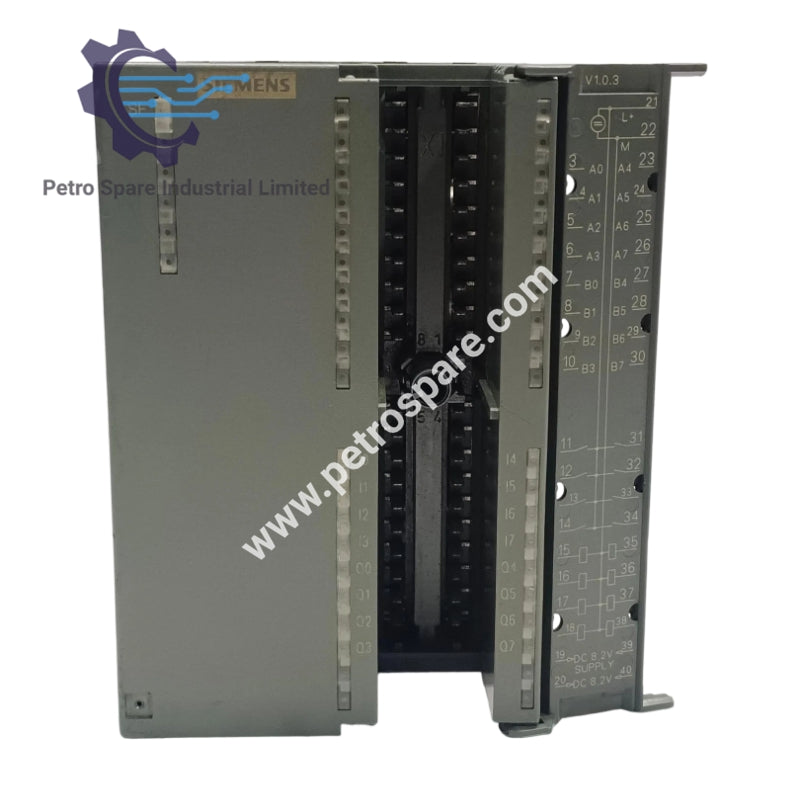

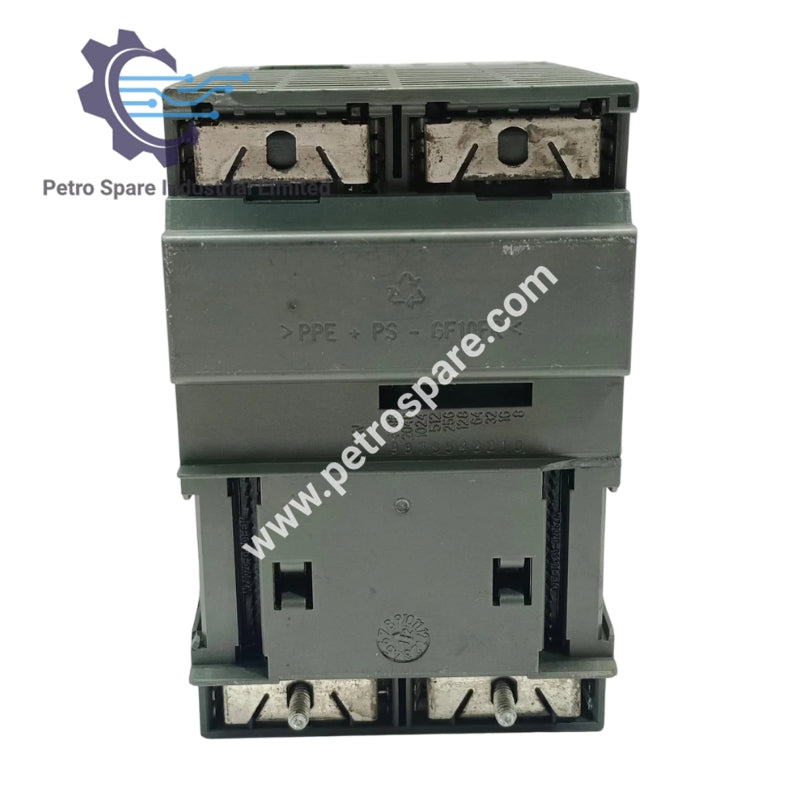

6ES7350-2AH01-0AE0 is SIMATIC S7-300 Counter module FM 350-2 with 8 channels, supporting counting, frequency measurement, speed measurement, period duration measurement, and dosing.

Technical Specifications

• Supply Voltage:Rated value (DC) 24 V

  Permissible range: 20.4 V – 28.8 V

• Input Current:

  From load voltage L+ (without load), max. 150 mA

  From backplane bus 5 V DC, max. 100 mA

• Encoder Supply:NAMUR encoder supply 8.2 V

  Short-circuit protection: Yes

  Max. output current: 200 mA

• Power Loss:Typical 10 W

• Digital Inputs:

  Number of digital inputs: 8

  Number of NAMUR inputs: 8

  Functions: 1 each for gate start/gate stop

  Input voltage:

  Signal "0": -3 to +5 V

  Signal "1": 11 to 30.2 V

  Input current:

  Signal "0" max. 2 mA

  Signal "1" typ. 9 mA

  NAMUR signal "0" max. 1.2 mA, signal "1" min. 2.1 mA

  Input delay max. 50 µs

  Input frequency max. 20 kHz

  Cable length max. 100 m (shielded)

• Digital Outputs:

  Number of digital outputs: 8

  Short-circuit protection: Yes

  Output voltage signal "1" min. L+ (-0.8 V)
