6ES7315-6FF01-0AB0

Product Overview

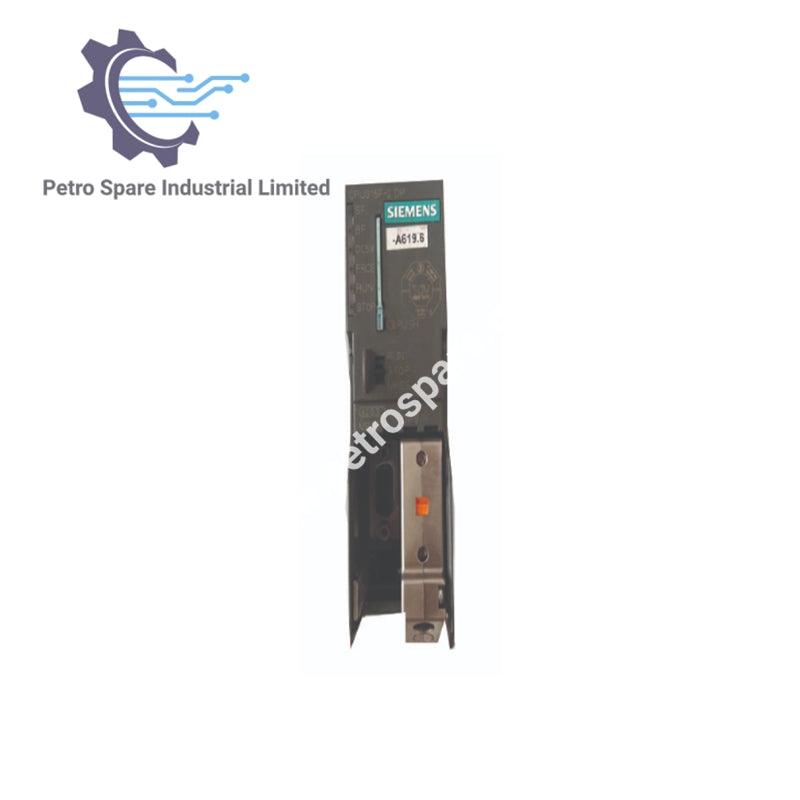

SIMATIC S7-300, CPU 315F is a central unit for S7-300F.

Technical Specifications

• Working memory: 192 KB
• Width: 40 mm
• PAE/PAA: 384 bytes / 384 bytes
• Interfaces: 1 MPI, 1 DP
• Integrated 24 V DC power supply
• Micro memory card required
• Hardware product version: 01
• Firmware version: V2.6
• Engineering with STEP 7 V5.2 SP1 or higher with HSP 0126

Electrical Data

• Supply voltage: 24 V DC
• Permissible range: 20.4–28.8 V DC
• Recommended external protection: 2 A min.
• Current consumption (no-load): 60 mA
• Inrush current: 2.5 A
• I²t: 0.5 A²·s
• Power loss: 2.5 W

---
