6ES7193-6BP00-0DA1

Product Overview

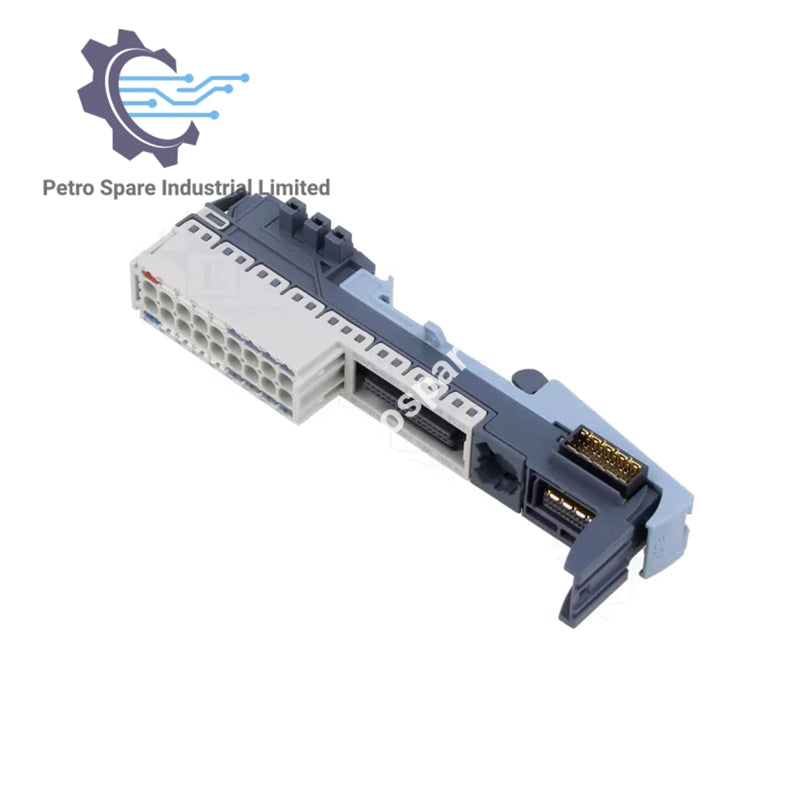

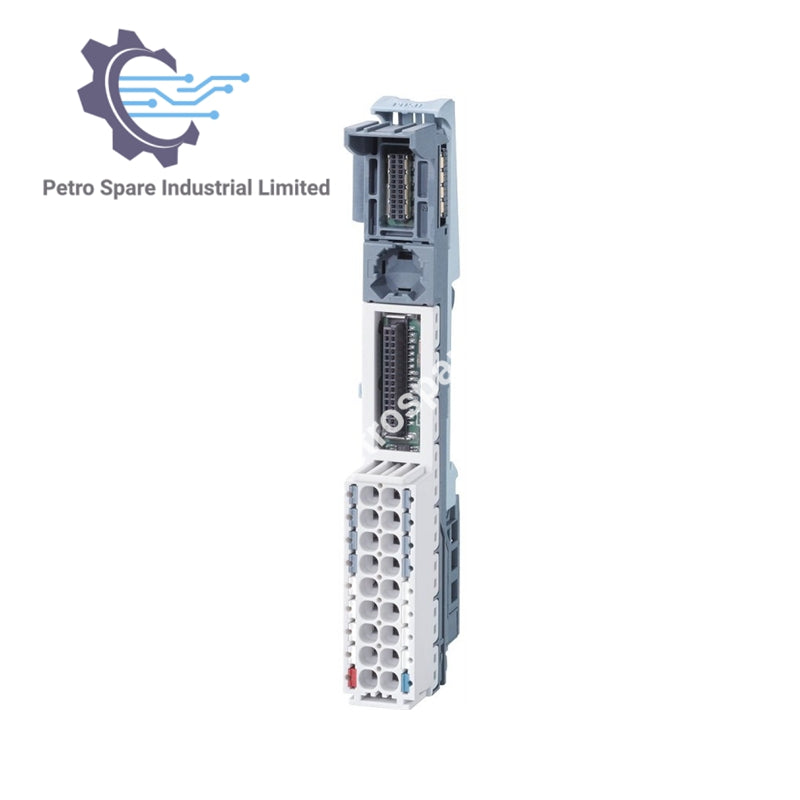

SIMATIC ET 200SP, BaseUnit BU15-P16+A0+2D/T, BU type A1, Push-in terminals
New load group, WxH: 15x117 mm, with temperature acquisition

Technical Specifications

• Product type designation: BU type A1
• HW functional status: FS10 and higher
• Supply voltage: Rated value DC 24 V
• External protection for power supply lines: Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic
• Current carrying capacity: For P1 and P2 bus, max. 10 A; For process terminals, max. 2 A
• Hardware configuration: Temperature sensor included
• Formation of potential groups: New potential group; potential group continued from the left: No
• Slots: 1; Type A1
• Potential separation between the potential groups: Yes
• Isolation: Isolation tested with 707 V DC (type test)
