6ES7972-0BA52-0XA0

Product Overview

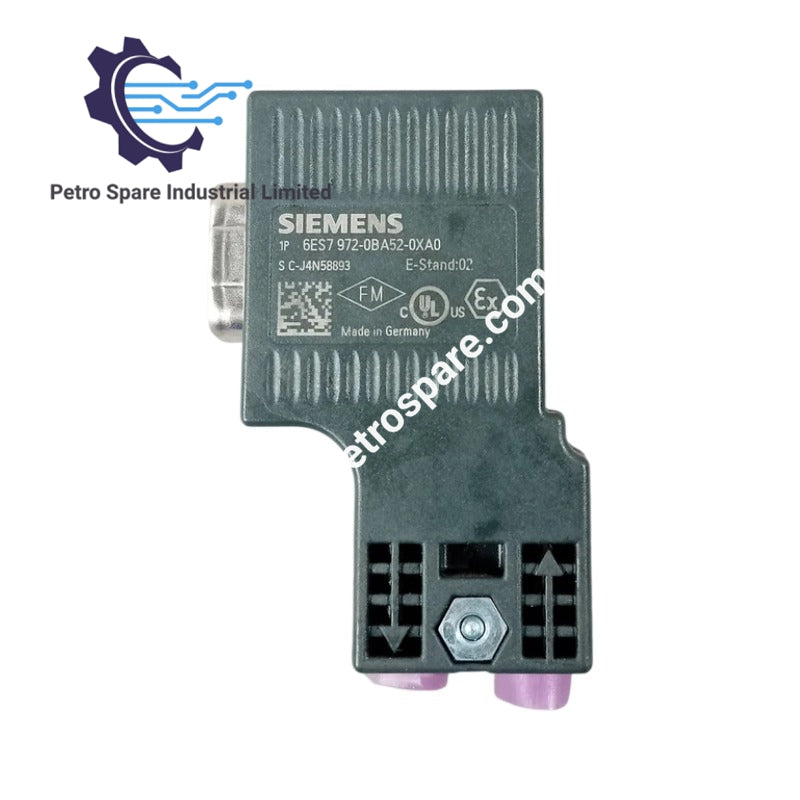

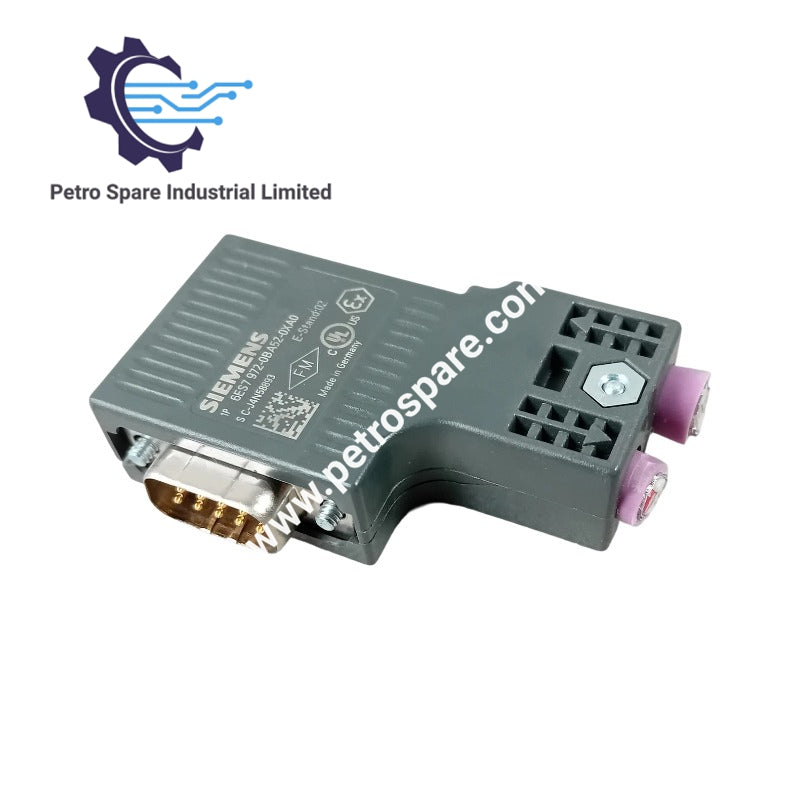

6ES7972-0BA52-0XA0 is a PROFIBUS bus connector with RS 485 interface, FastConnect insulation displacement technology, and a 90° cable outlet designed for up to 12 Mbit/s transmission without a programming port.

Technical Specifications

Transfer rate: 9.6 kbit/s to 12 Mbit/s for PROFIBUS DP communication.

Interfaces: Two electrical connections for PROFIBUS cables using integrated insulation displacement terminals for 2-core FC installation cables, and one 9-pin Sub-D connector for network components or terminal equipment.

Electrical connection type: FastConnect insulation displacement system for quick and tool-efficient wiring of PROFIBUS cables.

Terminating resistor design: Integrated resistor combination with selectable activation via slide switch for bus termination.

Mechanical data: Housing made of plastic with a screwed locking mechanism, 90° cable outlet design, compact dimensions of 15.8 × 59 × 35.6 mm, and a net weight of 36 g.

---
