Product Overview

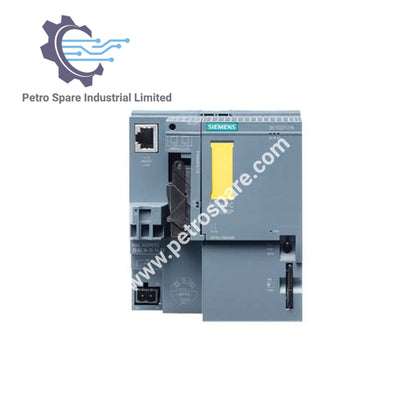

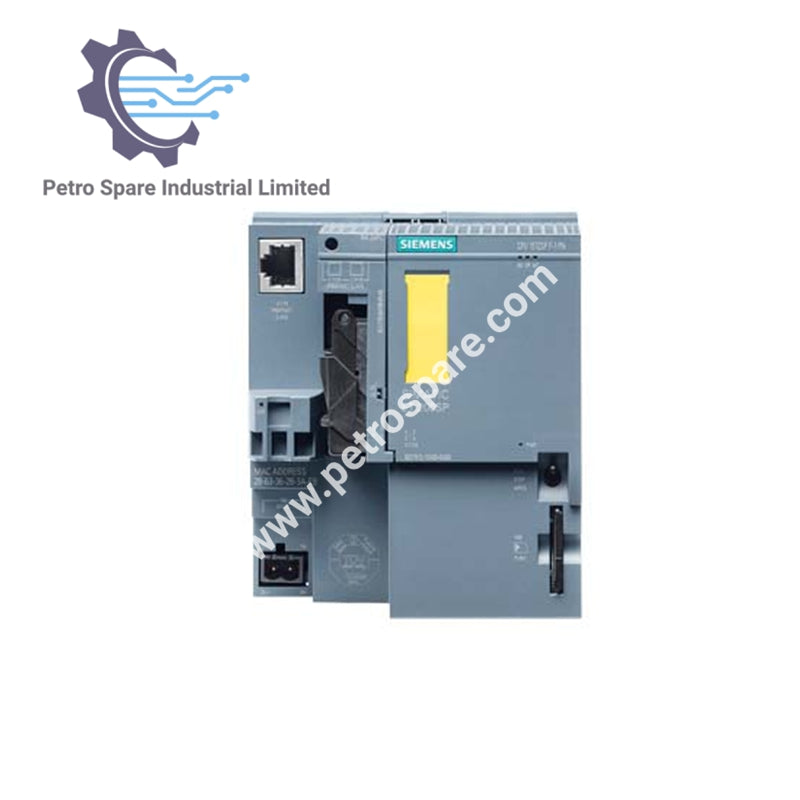

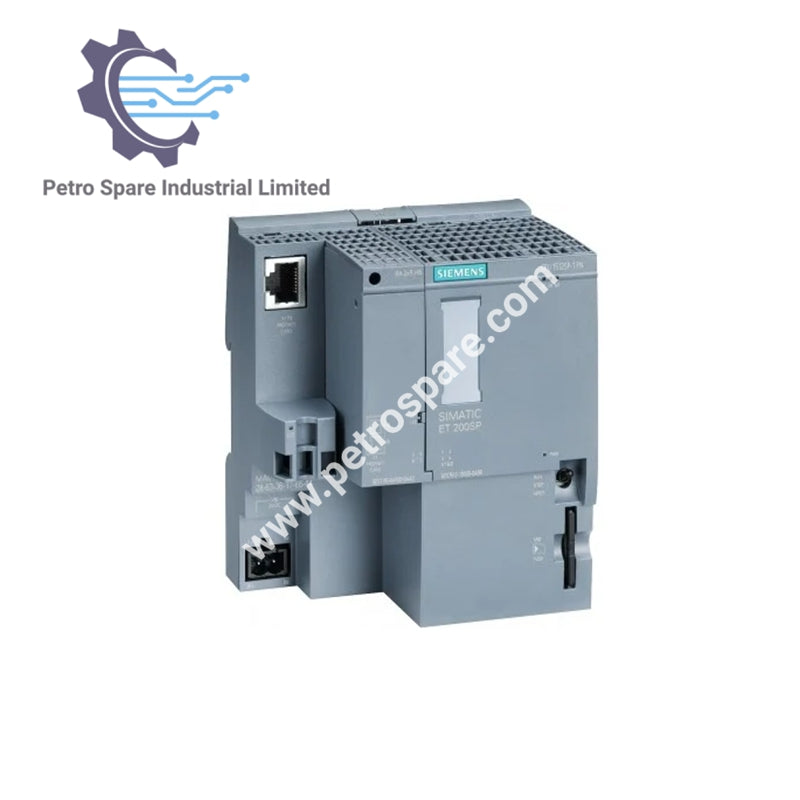

CPU 1512SP-1 PN for ET 200SP, Central processing unit with Work memory 200 KB for program and 1 MB for data.

Technical Specifications

 HW functional status: FS05
 Firmware version: V2.9

Product Function：
 I&M data: Yes; I&M0 to I&M3
 Module swapping during operation (hot swapping): Yes; Multi-hot swapping
Isochronous mode: Yes; Only with PROFINET; with minimum OB 6x cycle of 625 µs

Engineering:
STEP 7 TIA Portal configurable/integrated from version V17 (FW V2.9) / V13 SP1 Update 4 (FW V1.8) or higher

Configuration Control:
 Via dataset: Yes

Control Elements:
Mode selector switch: 1

Supply Voltage:
 Rated value (DC): 24 V
 Permissible range, lower limit (DC): 19.2 V
 Permissible range, upper limit (DC): 28.8 V
 Reverse polarity protection: Yes

Mains Buffering
 Mains/voltage failure stored energy time: 5 ms

Input Current:
Current consumption (rated value): 0.6 A
 Current consumption, max.: 0.9 A
 Inrush current, max.: 4.7 A
 I²t: 0.14 A²·s

---
