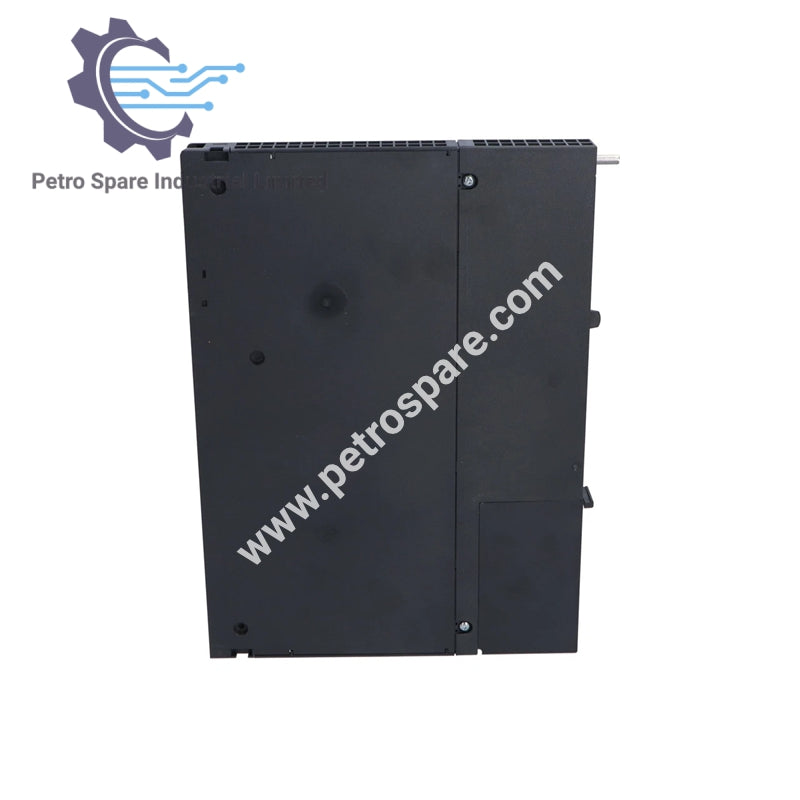

6GK7443-5DX05-0XE0

Overview

• Model: 6GK7443-5DX05-0XE0

• Type: Communication Processor Module

• Application: PROFIBUS communication processor for Siemens S7‑400 automation systems

Transmission Specifications

• Transfer Rate (PROFIBUS): 9.6 kbit/s … 12 Mbit/s

• Industrial Ethernet Interfaces: None

Interfaces

• Number of Interfaces (PROFIBUS): 1

• Electrical Connection (PROFIBUS): 9‑pin Sub‑D socket (RS485)

Electrical Characteristics

• Supply Voltage Type: DC

• Supply Voltage (Backplane Bus): 5 V DC ±5%

• Current Consumption: 0.6 A typical @ 5 V DC

• Power Loss: 3 W

Environmental Specifications

• Operating Temperature: 0 … 60 °C

• Storage Temperature: –40 … +70 °C

• Transport Temperature: –40 … +70 °C

• Relative Humidity (max): 95% @ 25 °C, non‑condensing

• Protection Class: IP20

Mechanical Specifications

• Module Format: Compact S7‑400 single‑width module

• Width: 2.5 cm

• Height: 29.0 cm

• Depth: 21.0 cm

• Net Weight: 0.65 kg

---
