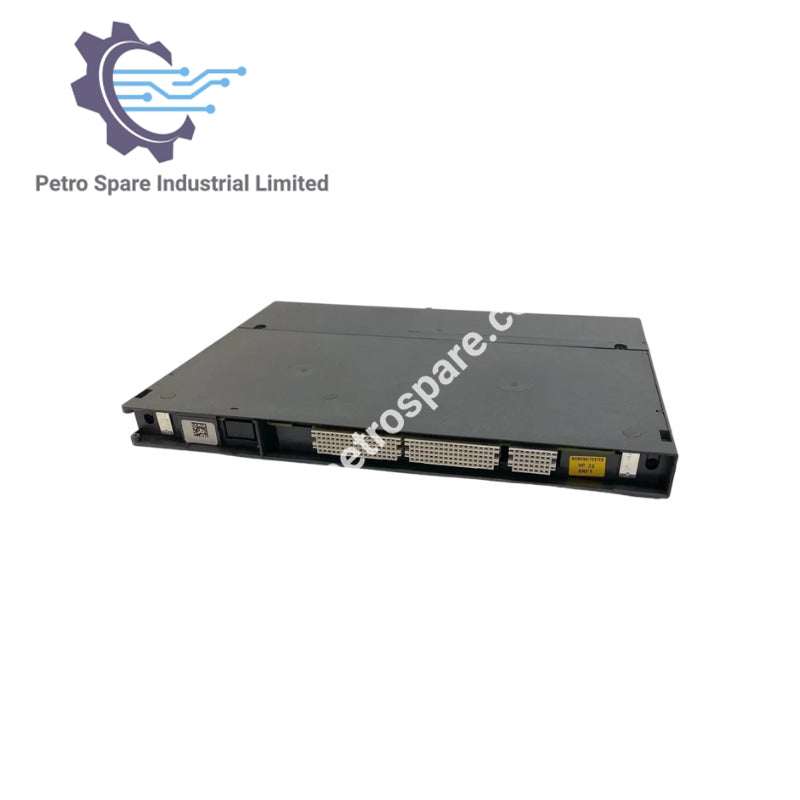

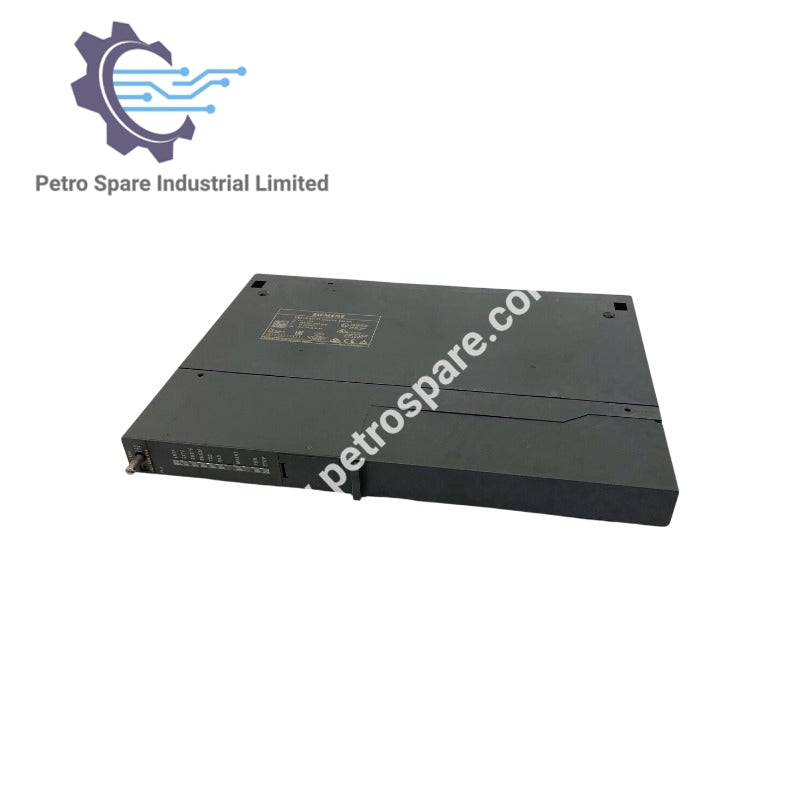

6GK7443-1RX00-0XE0

General Specifications

• Product type designation: CP 443-1 RNA
• Order number: 6GK7443-1RX00-0XE0
• Family: SIMATIC NET
• Description: Communications processor for SIMATIC S7-400; 1x 10/100 Mbit/s RJ45 port for ISO, S7, H-communication, open communication (send/receive), S7 routing; 2x 100 Mbit/s RJ45 ports for PRP, ISO, ISO-on-TCP, TCP, UDP, S7, H-communication, open communication (send/receive), S7 routing; time synchronization; IP access control list; web diagnostics; SNMPv1
• Protection class IP: IP20

Interfaces

• Number of interfaces (Industrial Ethernet): 3
• Number of electrical connections at 1st interface (Industrial Ethernet): 1
• Number of electrical connections at 2nd interface (Industrial Ethernet): 2
• Type of electrical connection at 1st interface (Industrial Ethernet): RJ45 port
• Type of electrical connection at 2nd interface (Industrial Ethernet): RJ45 port

Supply Voltage, Current Consumption and Power Loss

• Type of supply voltage: DC
• Supply voltage from backplane bus: 5 V
• Relative symmetrical tolerance at 5 V: 5 %
• Current consumption from backplane bus (5 V, typical): 1.8 A
• Power loss: 9 W

Ambient Conditions

• Ambient temperature during operation: 0 ... 60 °C
• Ambient temperature during storage: -40 ... +70 °C
• Ambient temperature during transport: -40 ... +70 °C
• Relative humidity at 25 °C without condensation during operation, max.: 95 %

Design, Dimensions and Weight

• Module format: Compact module S7-400 single width
• Width: 25 mm
• Height: 290 mm
• Depth: 210 mm
• Net weight: 0.7 kg

---
