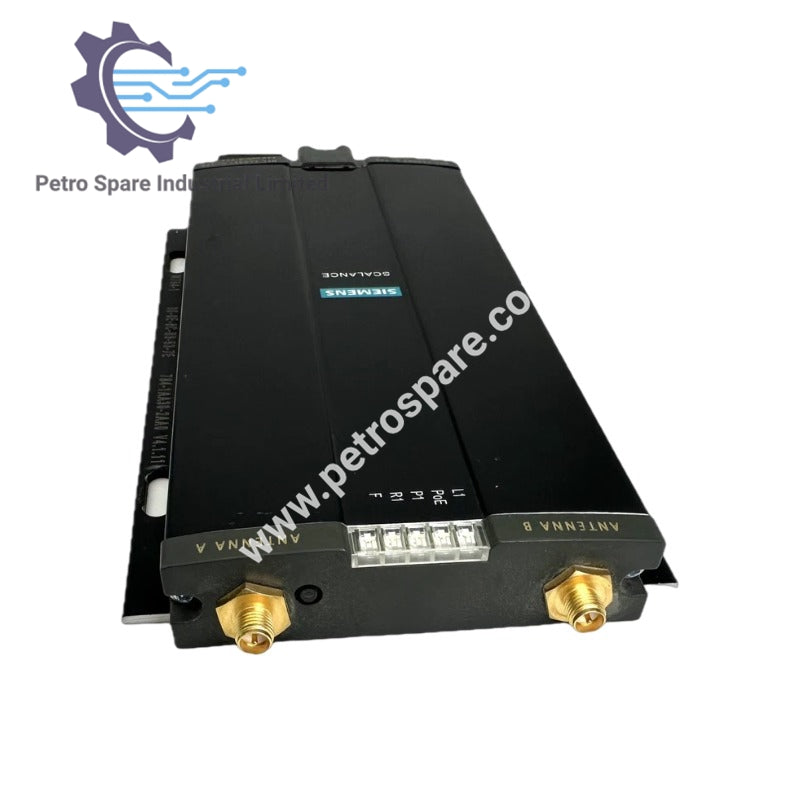

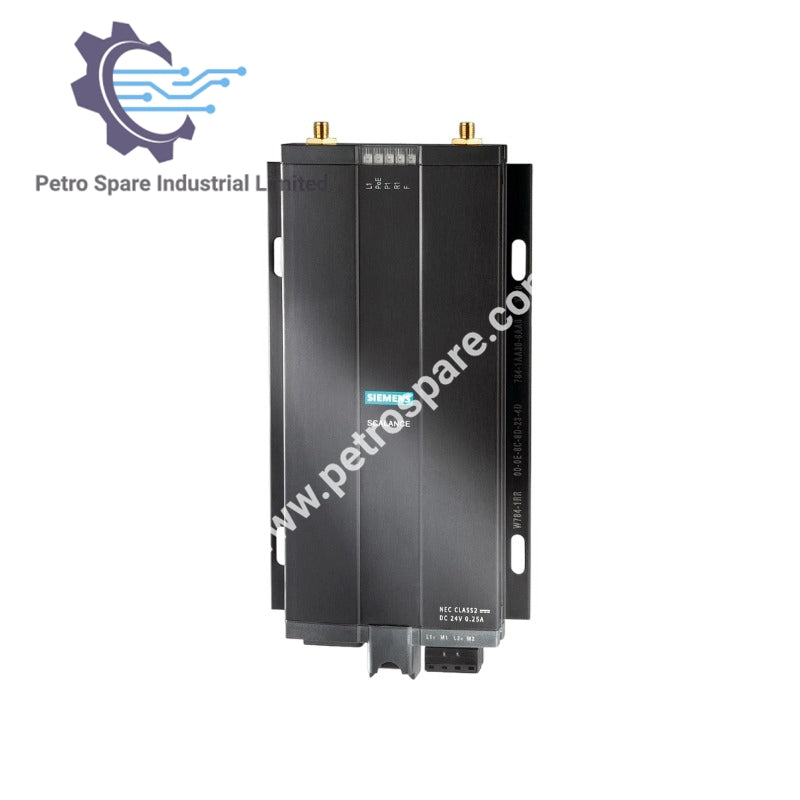

6GK5784-1AA30-2AA0

General Specifications

• Product type designation: SCALANCE IWLAN Access Point
• Order number: 6GK5784-1AA30-2AA0
• Family: SCALANCE
• Description: Industrial Wireless LAN access point for industrial environments
• Protection class IP: IP30

Transmission Rate

• Transmission rate with W-LAN, max.: 54 Mbit/s
• Transmission rate with Industrial Ethernet: 10 ... 100 Mbit/s
• Note: Due to the simultaneous use of several radio channels, a transmission rate of 108 Mbit/s is possible (turbo mode)

Interfaces

• Number of electrical connections for network components and terminal equipment: 1
• Number of electrical connections for power supply: 1
• Number of electrical connections for redundant power supply: 1
• Type of electrical connection for network components and terminal equipment: RJ45 socket
• Type of electrical connection for power supply: 4-pole screw terminal, PoE
• Removable storage (C-PLUG): Yes
• Number of radio cards (permanently installed): 1
• Number of electrical connections for external antenna(s): 2
• Type of electrical connection for external antenna(s): R-SMA female (socket)

Permitted Ambient Conditions

• Ambient temperature during operation: -20 ... +60 °C
• Ambient temperature during storage: -40 ... +70 °C
• Ambient temperature during transport: -40 ... +70 °C
• Relative humidity at 25 °C without condensation during operation, max.: 90 %

Design, Dimensions and Weight

• Width of enclosure (without antenna): 100 mm
• Height of enclosure (without antenna): 205 mm
• Depth of enclosure (without antenna): 20 mm
• Net weight: 0.29 kg

---
