6GK5206-2BD00-2AC2

Product Overview

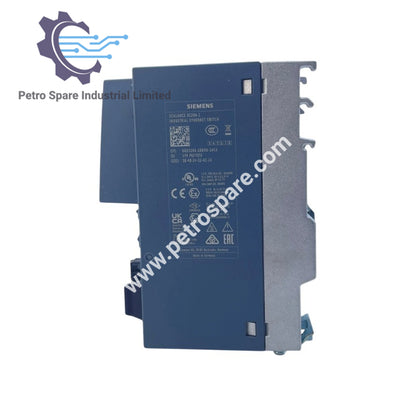

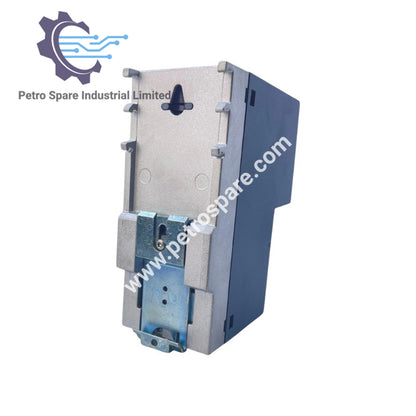

The 6GK5206-2BD00-2AC2 is a SCALANCE XC206-2 manageable Layer 2 IE switch with 6 × 10/100 Mbit/s RJ45 ports, 2 × 100 Mbit/s SC ports (multimode), and a console port, certified to IEC 62443-4-2 for industrial cybersecurity.

Transmission Rate

• Transfer Rate: 10, 100 Mbit/s

Interfaces

• RJ45 Ports: 6 (with securing collar)
• 100 Mbit/s SC Ports (Multimode): 2
• Transmission Method (Optical): 100BaseFX
• Console Port: 1 × RJ11
• Signaling Contact: 1 × 2‑pole terminal block
• Power Supply: 1 × 4‑pole terminal block (redundant)

Features

• IEC 62443-4-2 certified
• Redundancy functions (RSTP, VLAN)
• PROFINET IO device
• Ethernet/IP‑compliant
• Diagnostics LED
• C‑PLUG slot (removable storage)

Signal Contacts

• Operating Voltage: 24V DC (rated)
• Operating Current: 0.1 A max

Ambient Conditions

• Operating Temperature: –40°C to +70°C
• Storage Temperature: –40°C to +85°C
• Transport Temperature: –40°C to +85°C
• Relative Humidity (at 25°C, non‑condensing): 95% max

Physical Specifications

• Protection Class: IP20
• Design: Compact
• Width: 60 mm
• Height: 147 mm
• Depth: 125 mm
• Net Weight: 0.54 kg
• Enclosure Material: Polycarbonate (PC‑GF10) / pressure die‑cast aluminum

Mounting

• DIN rail / S7 mounting rail / wall

---
