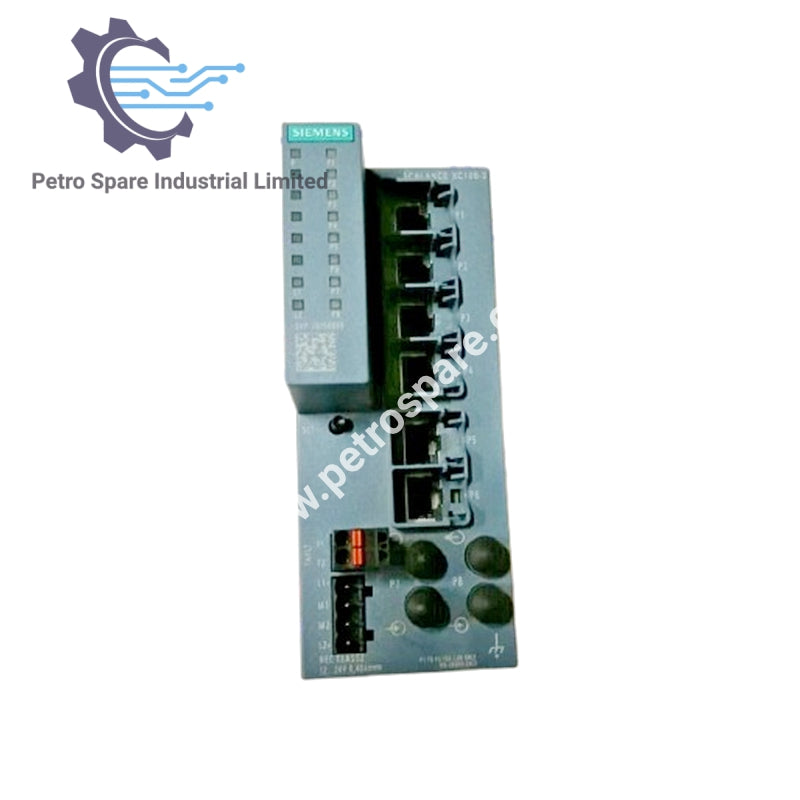

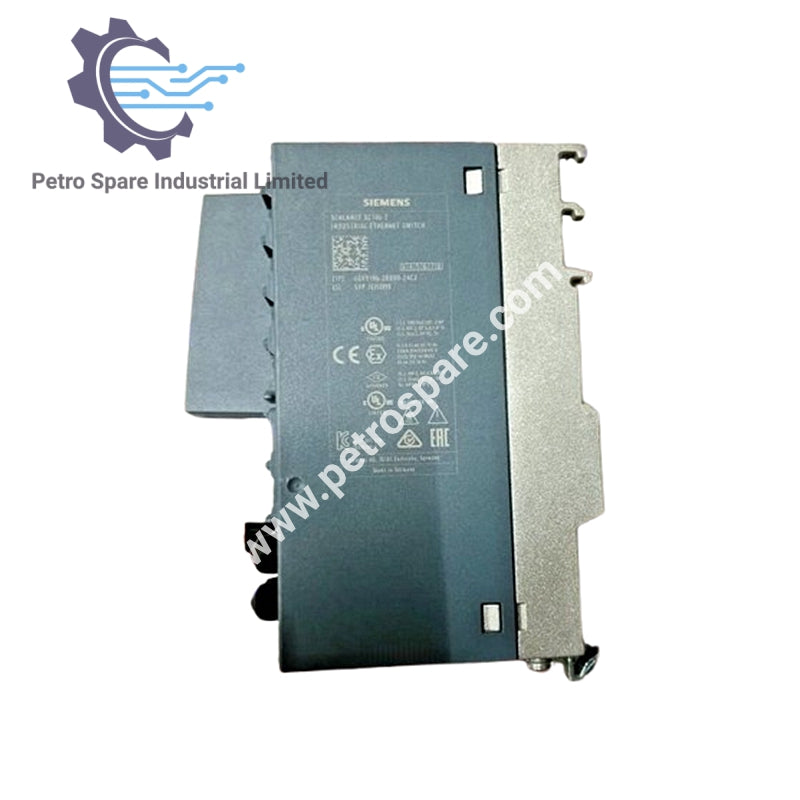

6GK5106-2BB00-2AC2

Overview

• Model: 6GK5106-2BB00-2AC2

• Type: Unmanaged Industrial Ethernet Switch Module

• Application: Provides unmanaged Ethernet switching for industrial communication networks

Interfaces

• RJ45 Ports: 6 × 10/100 Mbit/s (network components or terminal equipment)

• Optical Ports: 2 × 100 Mbit/s ST (BFOC) multimode fiber

• Other Connections:

  • 1 × 2‑pole terminal block (signaling contact)

  • 1 × 3‑pole terminal block (power supply, permanently installed)

  • 1 × terminal block (redundant voltage supply)

Electrical Characteristics

• Operating Voltage (Signaling Contacts): 24 V DC (rated)

• Operating Current (Signaling Contacts): 0.1 A max

• Power Supply: External, redundant supported

Features

• Diagnostics: LED indicators for port and module status

• Error Signaling: Contact with set button

• Reliability: Designed for continuous operation in industrial environments

• Manual: Available for download

Mechanical Specifications

• Design: Compact

• Width: 6.0 cm

• Height: 14.7 cm

• Depth: 12.5 cm

• Net Weight: 0.85 kg

---
