6GK5102-1GS00-2AC2

Product Overview

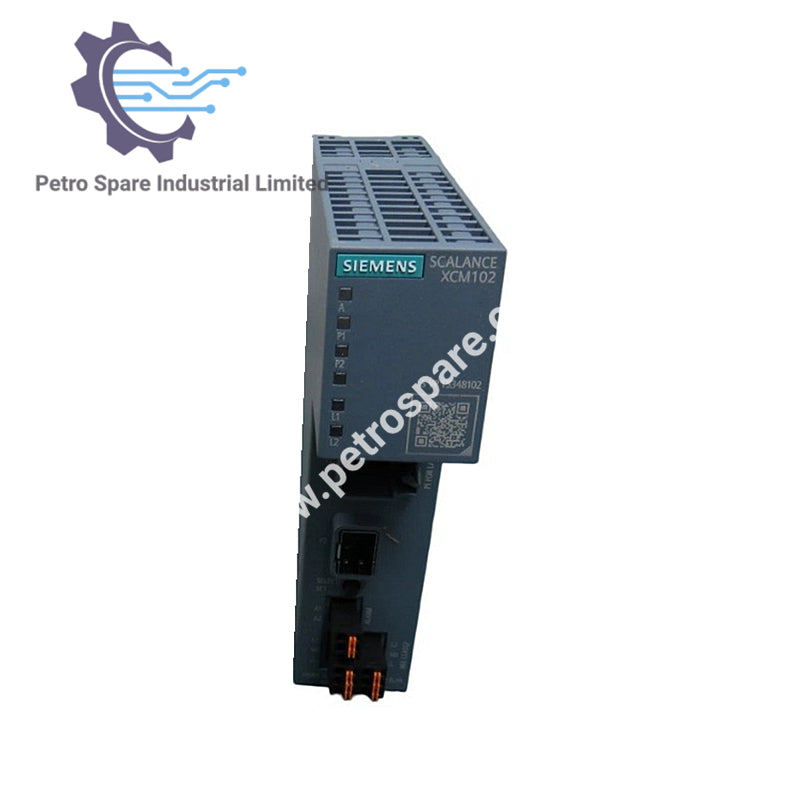

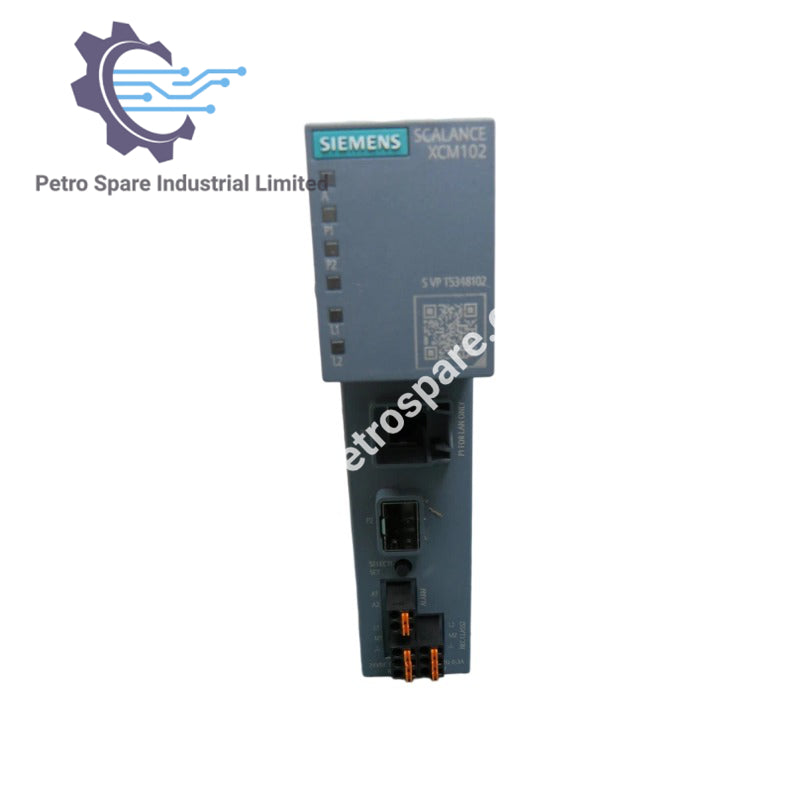

The 6GK5102-1GS00-2AC2 is a SCALANCE XCM102 unmanaged IE media converter with 1 × 100/1000 Mbps RJ45 port and 1 × 100/1000 Mbps SFP port for fiber connectivity.

Interfaces

• Electrical Connections (Network): 1 × RJ45 port
• SFP Slot: 1 (100 Mbps and 1000 Mbps SFP plug‑in transceivers usable)
• Signaling Contact: 1 × 2‑pole terminal block
• Power Supply: 2 × 3‑pole terminal block (redundant)

Signal Inputs/Outputs

• Operating Voltage (Signaling Contact): 24V DC (rated)
• Operating Current (Signaling Contact): 0.1 A max

Features

• LED diagnostics
• Error signaling contact with set pushbutton
• Redundant power supply
• Securing collar

Physical Specifications

• Design: Compact
• Width: 35 mm
• Height: 147 mm
• Depth: 123 mm
• Net Weight: 0.22 kg

Mounting Type

• 35 mm top hat DIN rail: Yes
• S7‑300 rail: Yes
• S7‑1500 rail: Yes
• Wall mounting: Yes

---
