6GK1503-2CC00

Product Overview

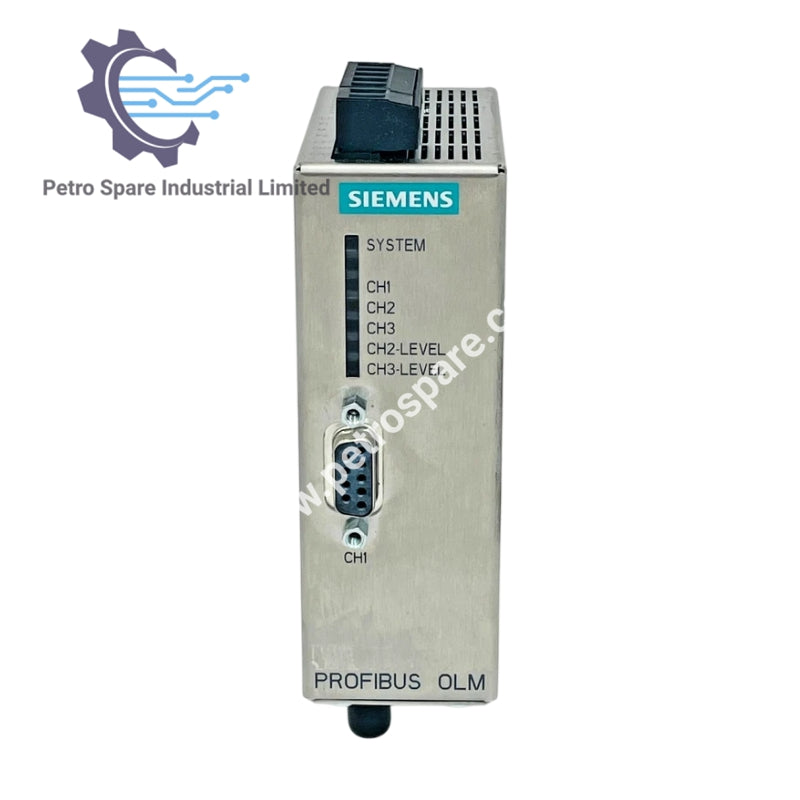

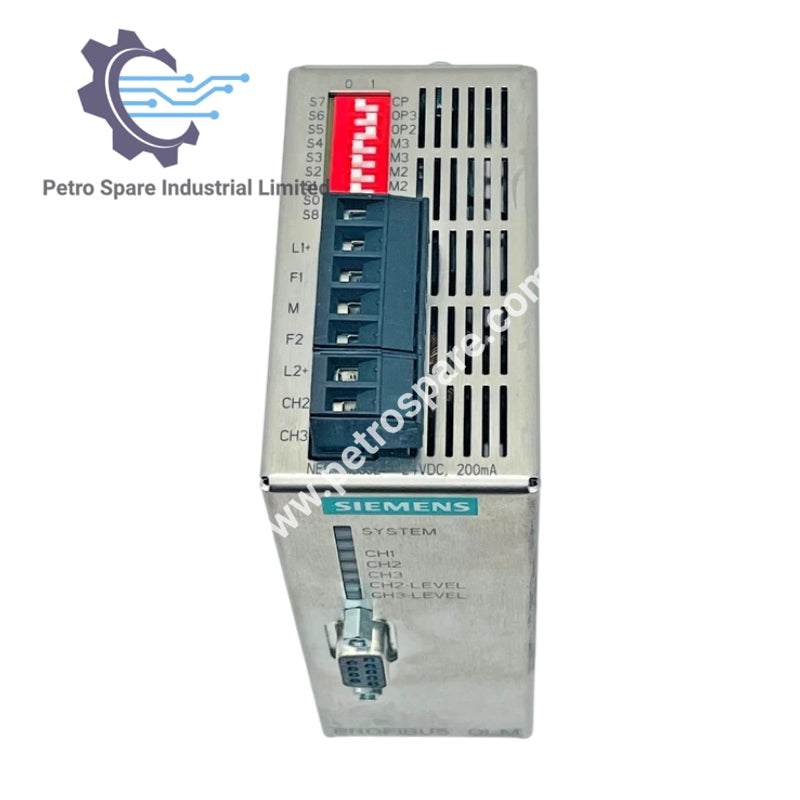

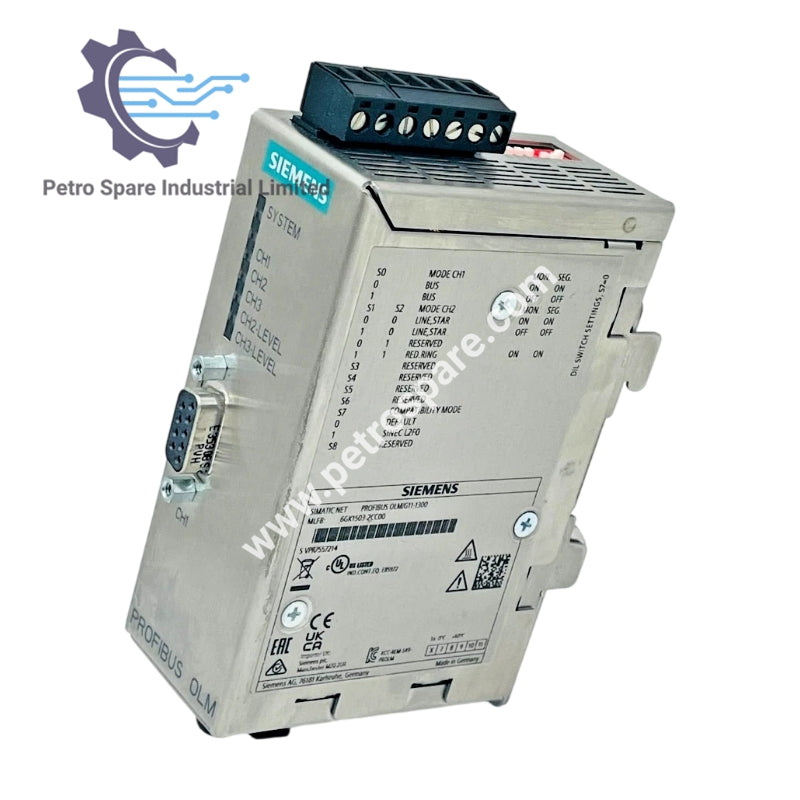

The 6GK1503-2CC00 is a PROFIBUS OLM/G11-1300 V4.0 optical link module designed for long-distance PROFIBUS communication using single-mode glass fiber optic transmission.

Technical Specifications

• Product Type: PROFIBUS Optical Link Module

• Series: OLM/G11-1300 V4.0

• Communication Interfaces:
1 × RS485 interface
1 × glass fiber optic interface with 2 BFOC sockets

• Supported Transfer Rates:
PROFIBUS: 9.6 kbit/s to 12 Mbit/s
PROFIBUS PA: 45.45 kbit/s

• Optical Transmission:
Single-mode fiber, 1310 nm wavelength
Maximum fiber length: 15 km
Maximum attenuation: 8 dB

• Electrical Connections:
9-pin Sub-D socket for network connection
2-pole terminal block for measuring device
5-pole terminal block for power supply and signaling contact

• Power Supply:
24 V DC nominal voltage
Operating range: 18.8 to 28.8 V DC
Maximum current consumption: 0.2 A

• Signal Features:
Integrated signaling contact and test port
24 V DC signaling contact voltage
Maximum signaling current: 0.1 A

---
