6GK1411-2AB10

Product Overview

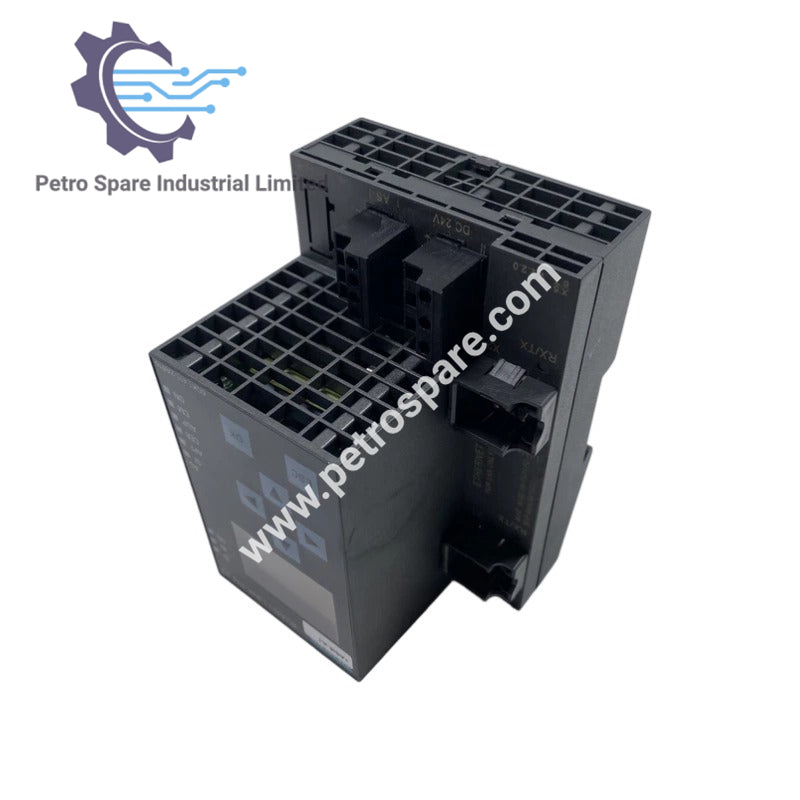

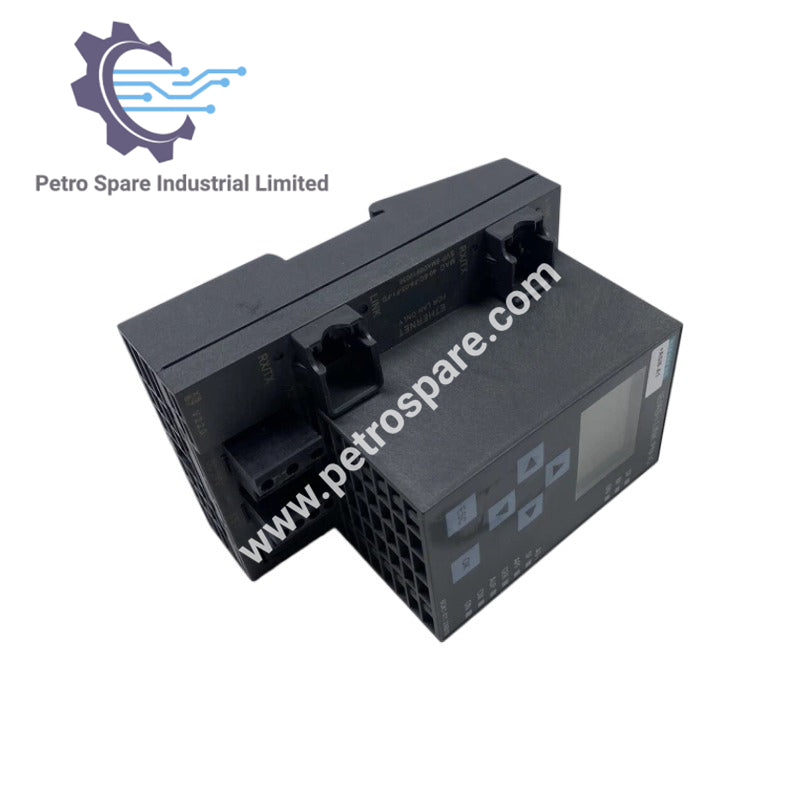

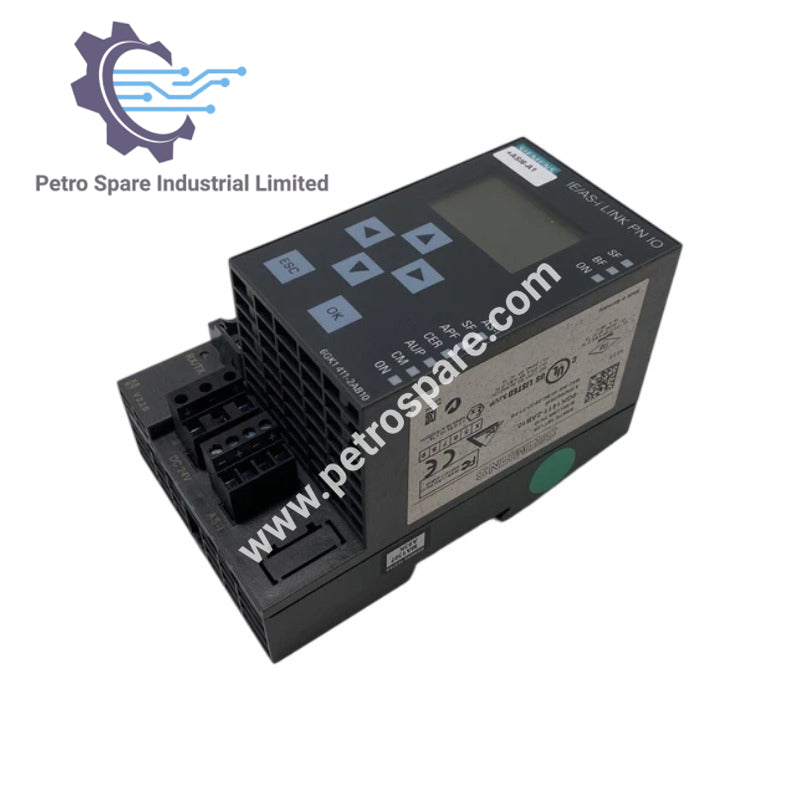

The 6GK1411-2AB10 is a SIMATIC NET IE/AS‑i Link PN IO gateway module for connecting an AS‑Interface network to PROFINET IO.

General Specifications

• Product Designation: PROFINET IO / AS‑Interface Link
• Product Type Designation: IE/AS‑i LINK PN IO (single master)
• Protection Class: IP20
• AS‑Interface Connection: Screw‑type terminal

Power Supply

• Voltage Supply: Via AS‑i or 24V DC
• Separate 24V Power Supply Required: No
• Supply Voltage: 24V DC
• Current Consumption (via AS‑i): 320 mA max at 30V / 24V
• Power Loss: 9.6W

Features

• Galvanic Isolation: Yes
• Redundancy Capable: No
• Suitable for AS‑i Power24V: No (from product status 4 / firmware V2.2)
• Web‑based Management: Yes
• Diagnostics via Email: Yes

Status Display

• LED Indicators: SF, BF, ON, APF, CER, AUP, CM
• Display: LCD, full graphic, backlighting, 128 x 64 pixels

Configuration

• Operator display, integrated web server, STEP7, GSD, command interface

Physical Specifications

• Width: 90 mm
• Height: 132 mm
• Depth: 88.5 mm
• Mounting: Snap‑on on 35 mm DIN rail
• Module Format: IP20

Ambient Conditions

• Operating Temperature (horizontal mounting rail): 0°C to +60°C
• Transport Temperature: –30°C to +70°C
• Storage Temperature: –30°C to +70°C
• Relative Humidity (at 25°C, operation): 95% max

---
