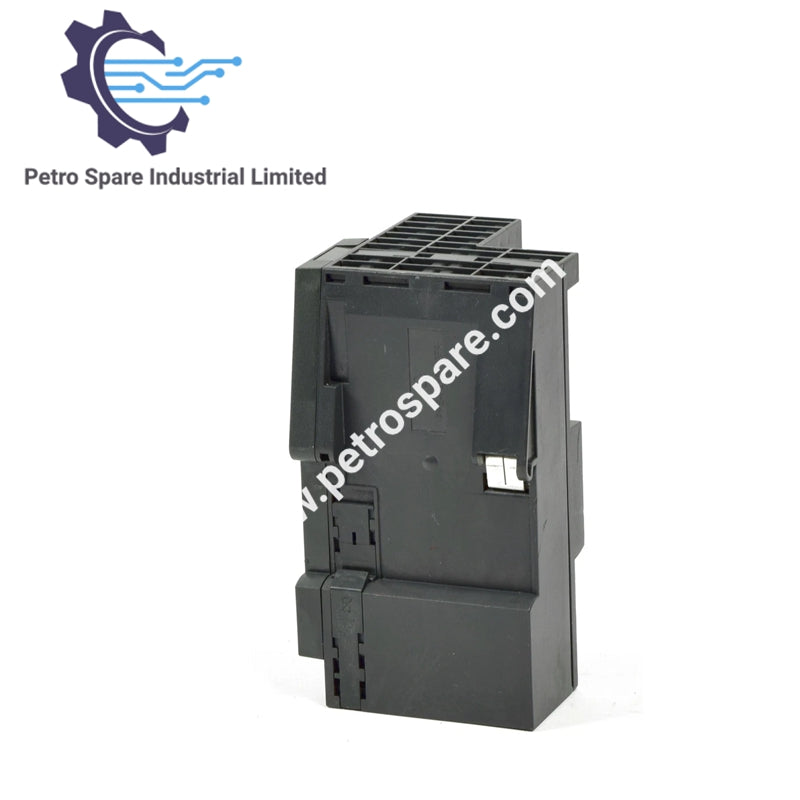

6ES7151-7AA21-0AB0

Overview

• Model: 6ES7511-1FK02-0AB0

• Type: SIMATIC S7‑1500 CPU (CPU 1511F‑1 PN)

• Application: Compact CPU with integrated safety functions, designed for distributed and central automation tasks

General Specifications

• HW Functional Status: FS03

• Firmware Version: V2.8 (FW update supported)

• I&M Data Support: I&M0 … I&M3

• Isochronous Mode: Supported (distributed min. OB 6x cycle 625 µs; central min. cycle 1 ms)

• Configuration Control: Via dataset

Engineering & Configuration

• STEP 7 TIA Portal: Configurable/integrated from V16 (FW V2.8) or V15 (FW V2.5)

• Compatibility: With older TIA Portal versions configurable as 6ES7511‑1FK01‑0AB0

Display & Control

• Screen Diagonal: 3.45 cm

Memory

• Work Memory: 225 KB

Mechanical Specifications

• Width: 35 mm

• Height: 147 mm

• Depth: 129 mm

• Weight: Approx. 405 g

---
