6ES7510-1SJ01-0AB0

Product Overview

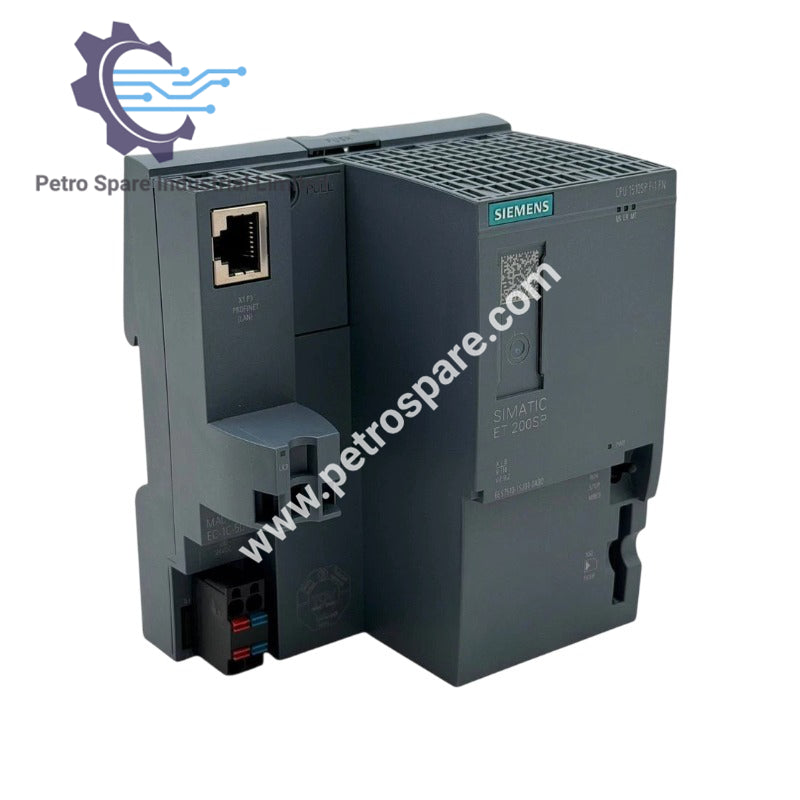

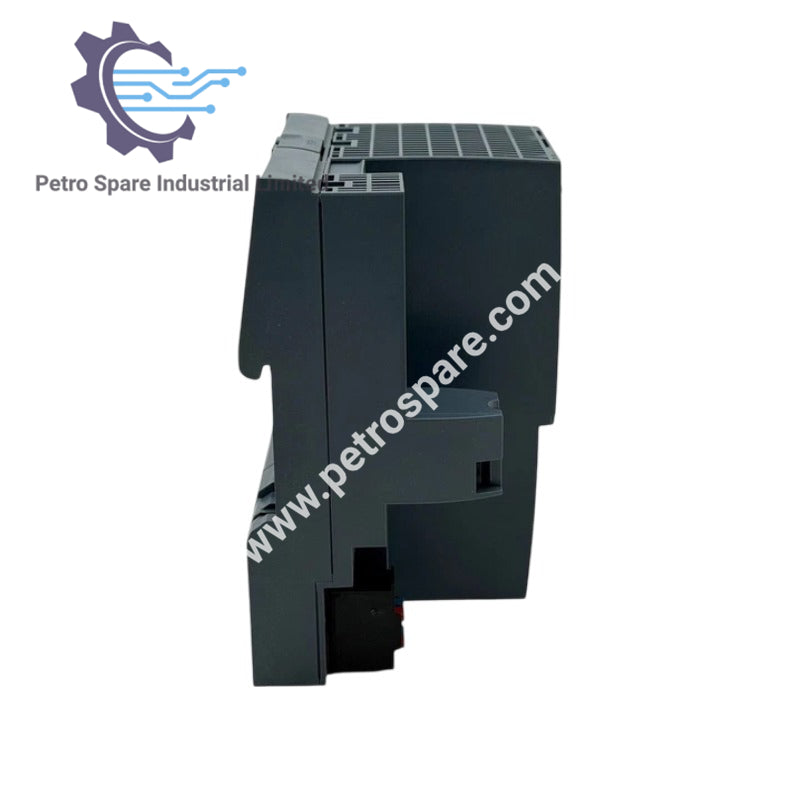

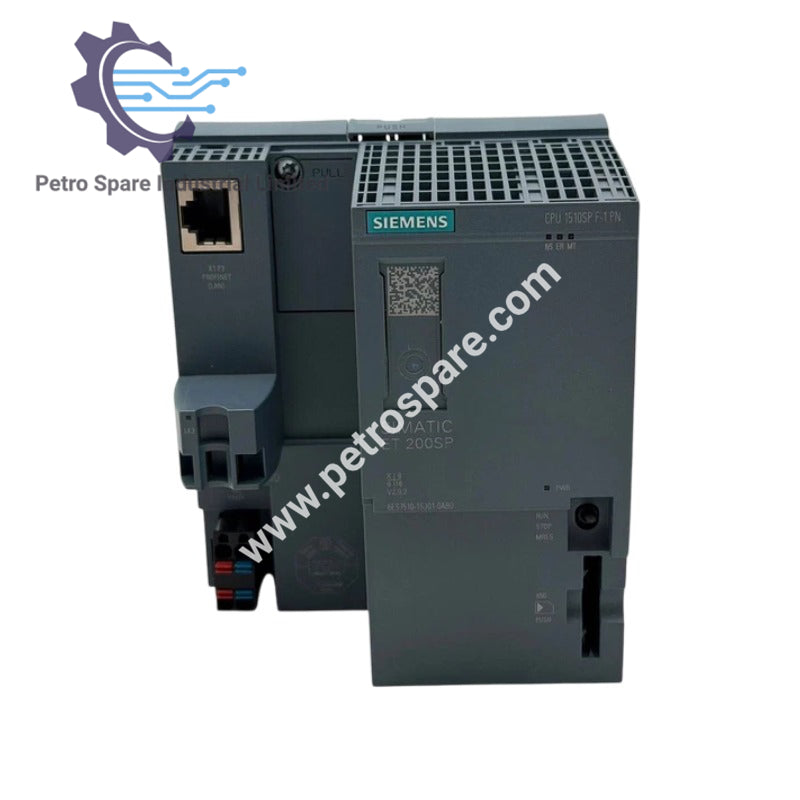

The 6ES7510-1SJ01-0AB0 is a SIMATIC DP CPU 1510SP F-1 PN for ET 200SP, with 150 KB program memory and 750 KB data memory, featuring a PROFINET IRT interface with 3‑port switch and 72 ns bit‑performance.

General Information

• Product Type Designation: CPU 1510SP F‑1 PN
• HW Functional Status: FS01
• Firmware Version: V1.8
• Mode Selector Switch: 1
• Configuration Control via Dataset: Yes

Engineering

• STEP 7 TIA Portal: V13 SP1 Update 4 or higher

Supply Voltage

• Type: 24V DC
• Permissible Range: 19.2V to 28.8V DC
• Reverse Polarity Protection: Yes
• Mains Buffering (Voltage Failure): 5 ms

Cycle Time Monitoring

• Lower Limit: Adjustable
• Upper Limit: Adjustable

Physical Specifications

• Width: 100 mm
• Height: 117 mm
• Depth: 75 mm
• Weight: approx. 310 g

---
