6ES7414-3EM07-0AB0

Description

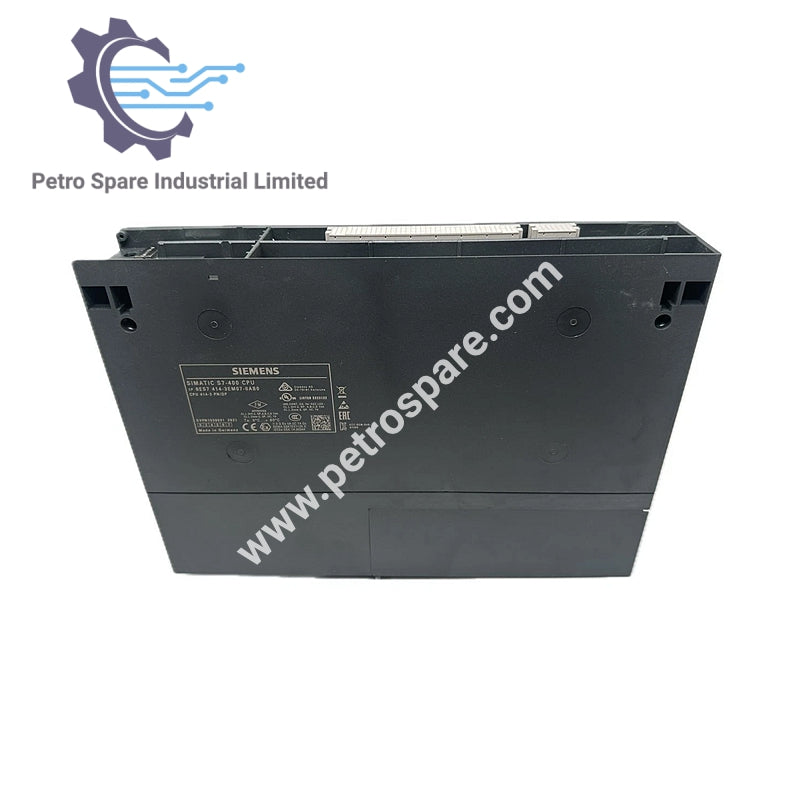

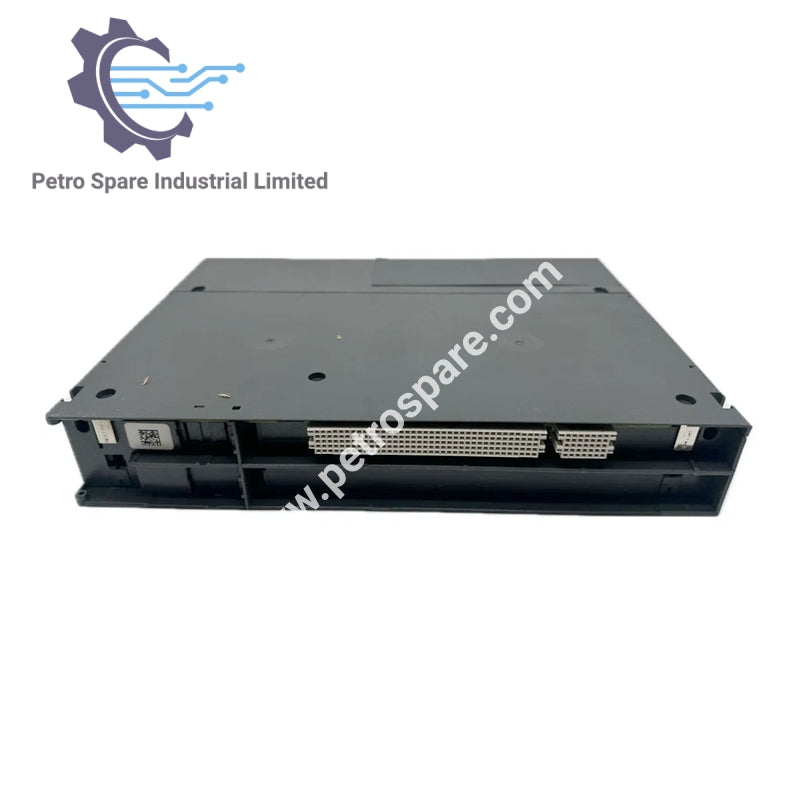

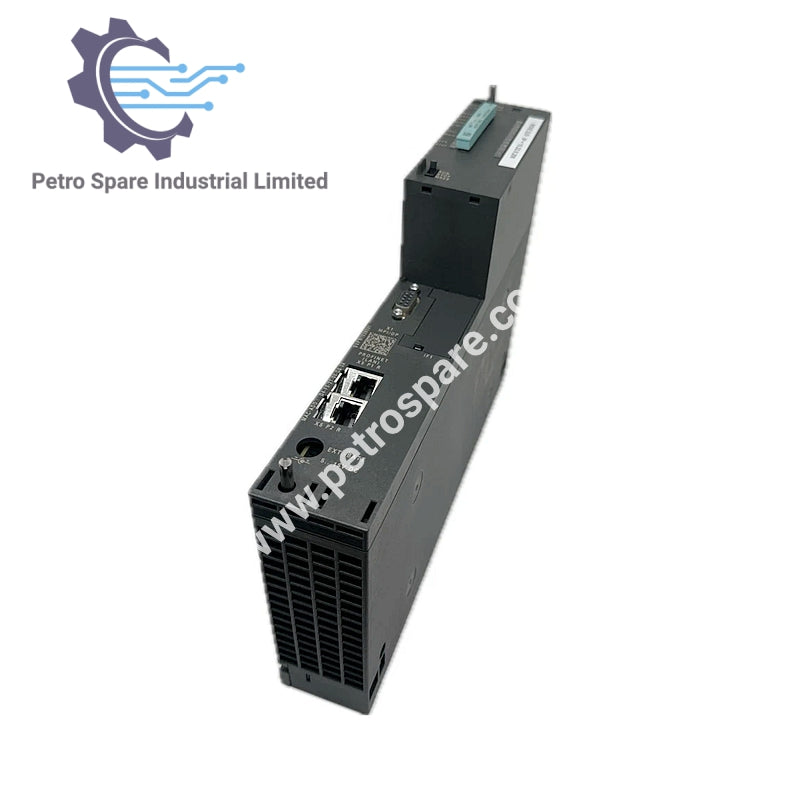

6ES7414-3EM07-0AB0 is a Siemens SIMATIC S7-400 CPU 414-3 PN/DP central processing unit with 4 MB work memory, advanced communication interfaces, and support for isochronous mode via PROFIBUS DP or PROFINET.

Identity

• Part Number: 6ES7414-3EM07-0AB0

• Series: SIMATIC S7-400

• Type: Central Processing Unit

• Designation: CPU 414-3 PN/DP

• HW Status: 01

• Firmware Version: V7.0

Product Function

• Isochronous Mode: Supported via PROFIBUS DP / PROFINET

• CiR (Configuration in RUN): Supported

• CiR Sync Time: 100 ms (basic load), 15 µs per I/O byte

Engineering

• Programming: STEP 7 V5.5+ with HSP 262

Electrical Characteristics

• Supply Voltage: Via system power supply

CPU Performance

• Bit Operations: 18.75 ns

• Word Operations: 18.75 ns

• Fixed Point Arithmetic: 18.75 ns

• Floating Point Arithmetic: 37.5 ns

Mechanical Characteristics

• Dimensions: W 50 mm × H 290 mm × D 219 mm

• Weight: 900 g

---
