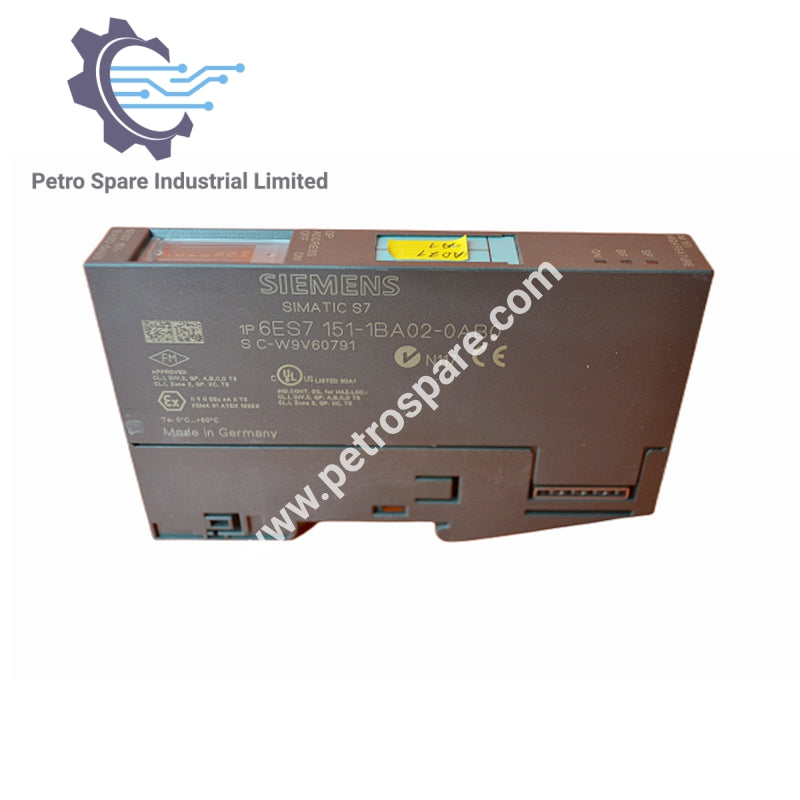

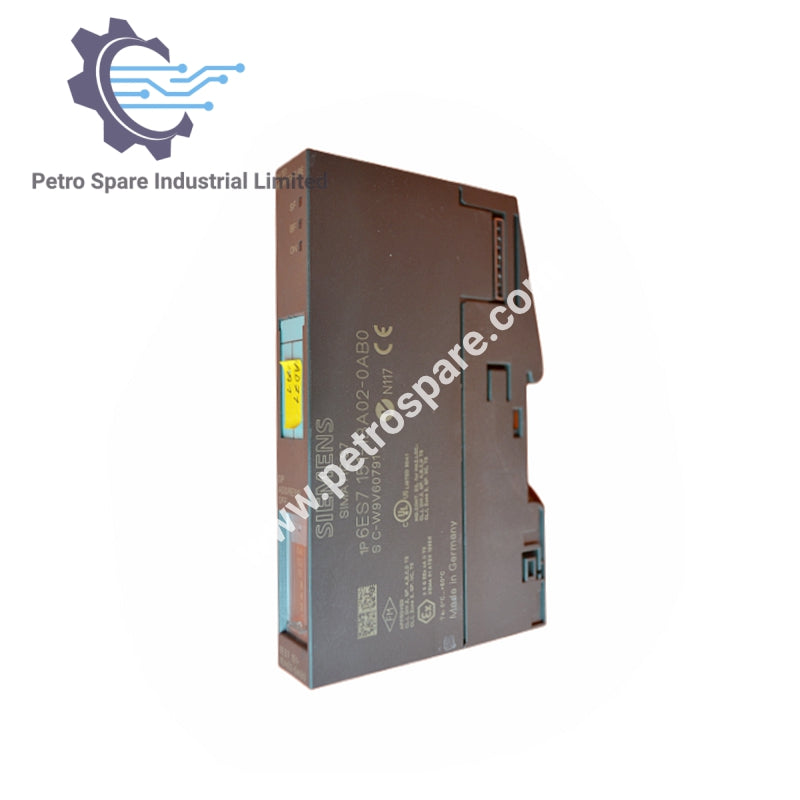

6ES7151-1BA02-0AB0

Overview

• Model: 6ES7151-1BA02-0AB0

• Type: SIMATIC DP Interface Module (IM151‑1 High Feature)

• Application: Interface module for ET200S distributed I/O systems, supporting PROFIBUS DP communication up to 12 Mbit/s

Electrical Characteristics

• Supply Voltage Type: DC

• Mains Buffering: min. 20 ms

• Input Current (from supply voltage L+): max. 200 mA

• Power Loss: 3.3 W (typical)

Communication Specifications

• Transmission Rate: up to 12 Mbit/s

• Addressing Volume:

  • Inputs: 244 bytes

  • Outputs: 244 bytes

• Max. Connectable Modules: 63

• Isochrone Mode: Supported

• Bus Interface: 9‑pin Sub‑D connector (RS485)

• Terminating Module: Included

Isolation

• Isolation Test: 500 V DC

Mechanical Specifications

• Width: 4.5 cm

• Height: 11.95 cm

• Depth: 7.5 cm

• Weight: 0.15 kg

---
