6ES7135-7TD00-0AB0

Product Overview

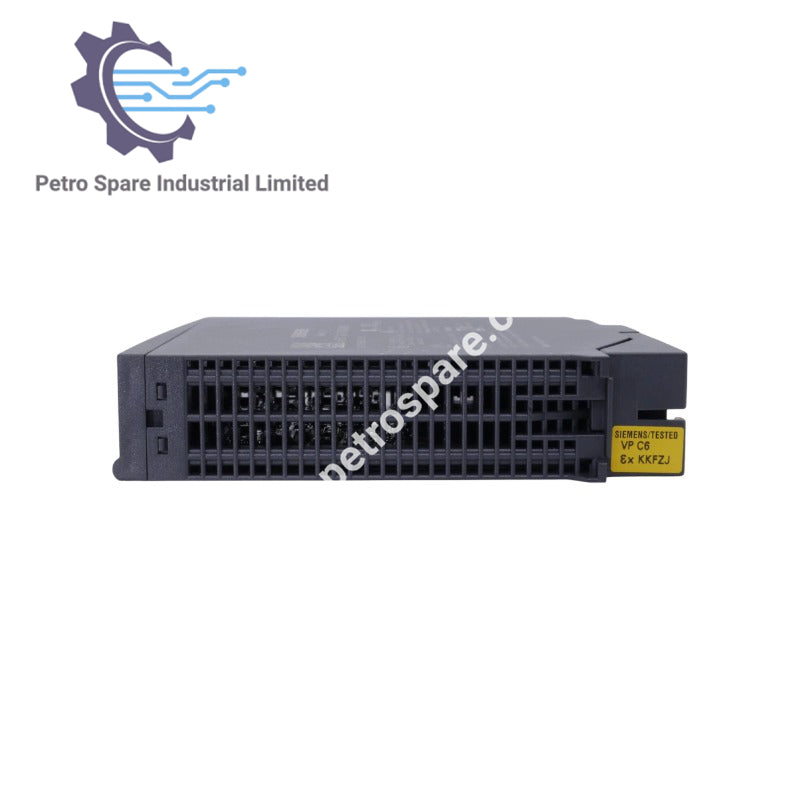

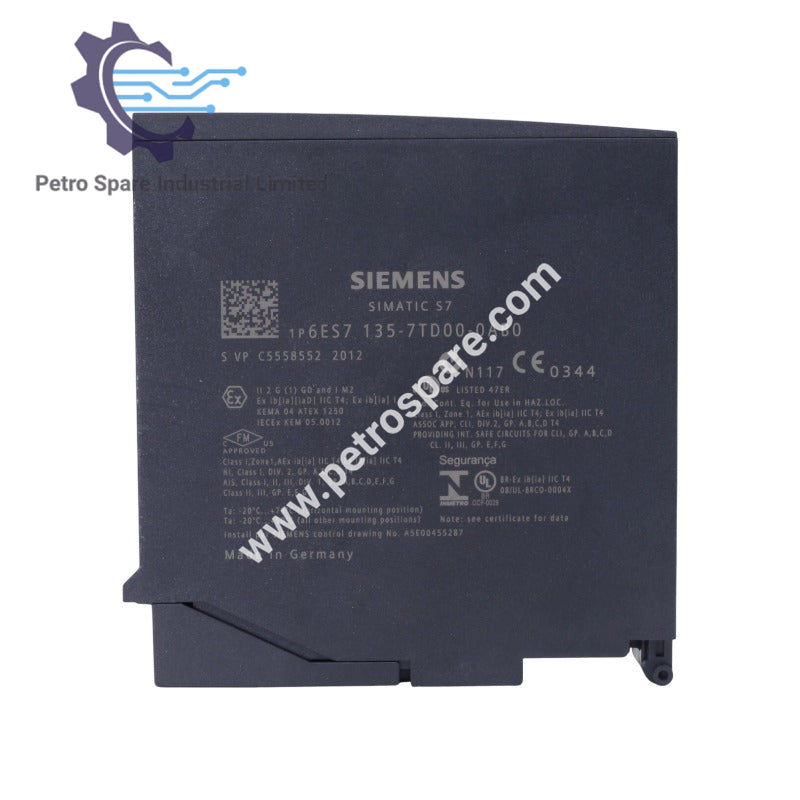

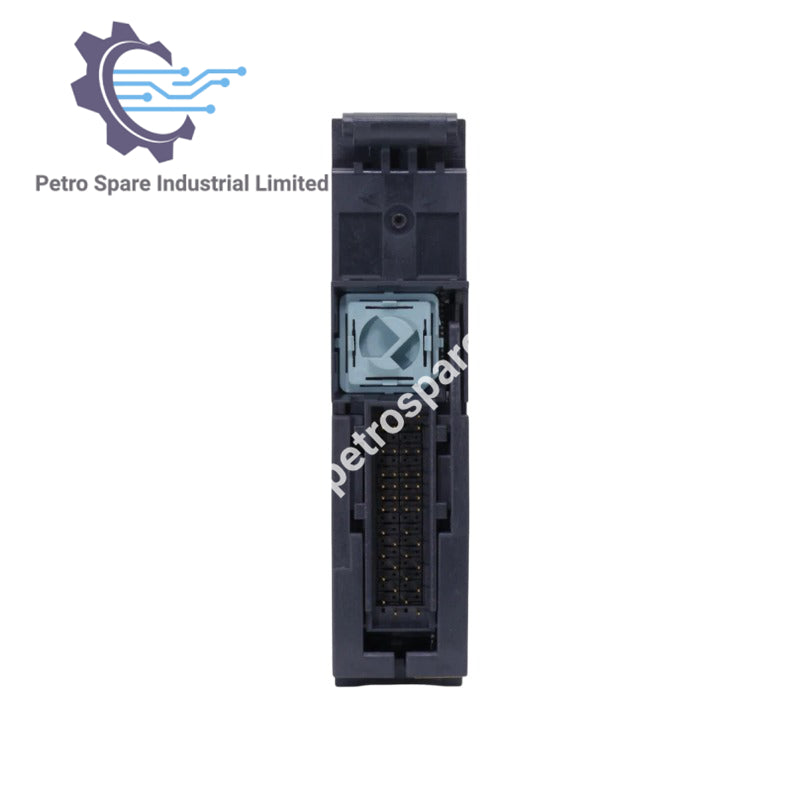

The 6ES7135-7TD00-0AB0 is a SIMATIC DP electronics module for ET 200iSP with 4 analog current outputs, supporting 0‑20mA and 4‑20mA ranges.

Input Current

• from Load Voltage L+ (without load, max): 330 mA

Power Loss

• Power Loss (typ): 2.7 W

Analog Outputs

• Number of Analog Outputs: 4
• Cycle Time (all channels, max): 3.6 ms
• Output Current Ranges: 0‑20mA, 4‑20mA
• Actuator Connection: Two‑wire connection
• Load Impedance (max): 750 Ω
• Cable Length (shielded, max): 500 m

Physical Specifications

• Width: 30 mm
• Height: 129 mm
• Depth: 136.5 mm
• Weight: approx. 265 g

---
