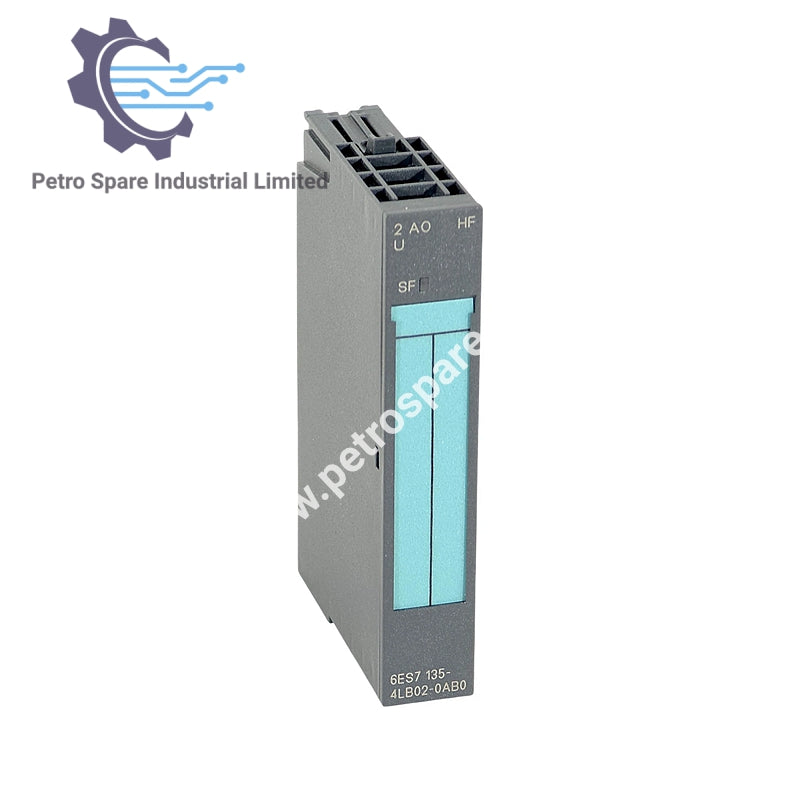

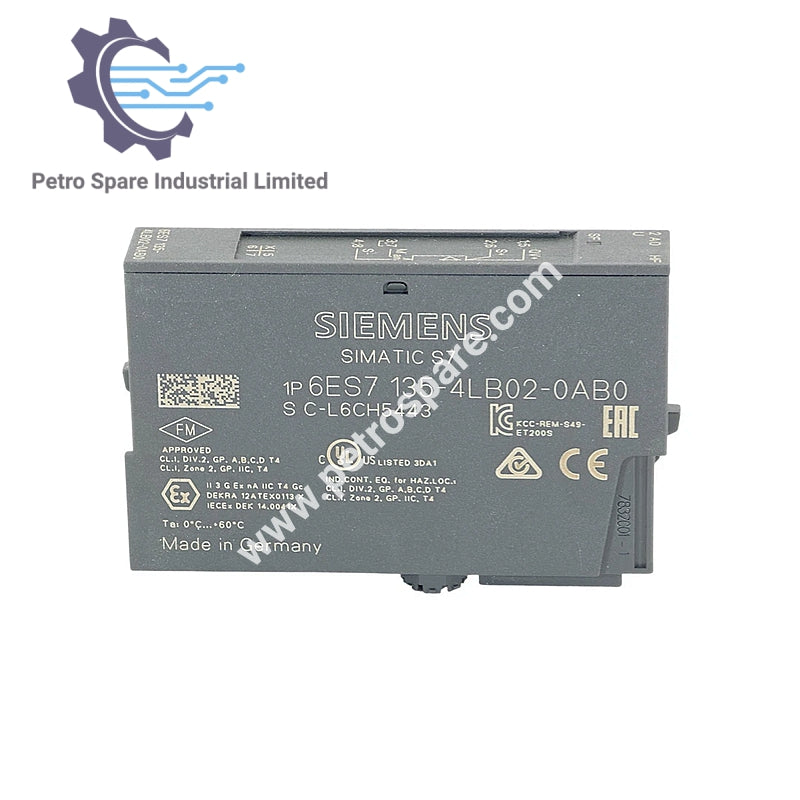

6ES7135-4LB02-0AB0

Overview

• Model: 6ES7135-4LB02-0AB0

• Type: SIMATIC DP Electronic Module (ET 200S)

• Application: 2‑channel analog output module, high‑feature version for ET 200S distributed I/O systems

Electrical Characteristics

• Load Voltage (L+): 24 V DC (rated)

• Input Current (without load): max. 80 mA

• Backplane Bus Supply: 3.3 V DC, max. 10 mA

• Power Loss: max. 1.2 W

• Address Space per Module: 4 bytes

Analog Outputs

• Number of Outputs: 2

• Output Protection: Short‑circuit protected

• Short‑circuit Current: max. 25 mA

• Cycle Time (all channels): max. 0.5 ms @ 0.5 µF load

• Output Ranges (Voltage):

  • 1 … 5 V

  • –5 … +5 V

  • –10 … +10 V

• Resolution: 15‑bit + sign

• Operational Limits: ±0.07%

Features

• Diagnostics: LED SF (group fault indication)

• Performance: High‑feature module with fast cycle time (0.5 ms)

• Application Areas: Precise analog voltage output for automation and process control

Mechanical Specifications

• Width: 1.5 cm

• Height: 8.1 cm

• Depth: 5.2 cm

• Weight: 0.04 kg

---
