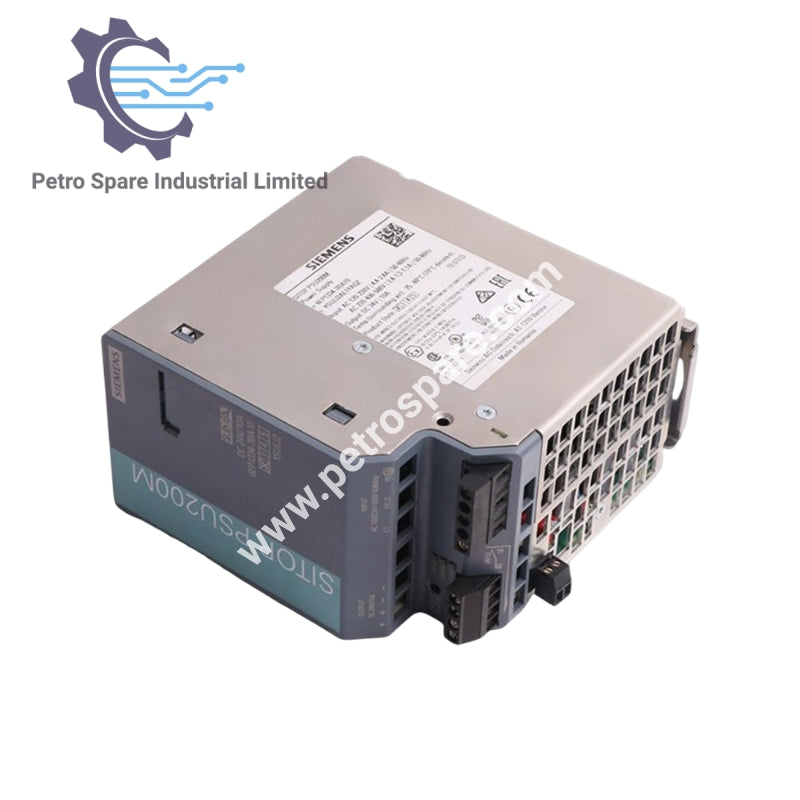

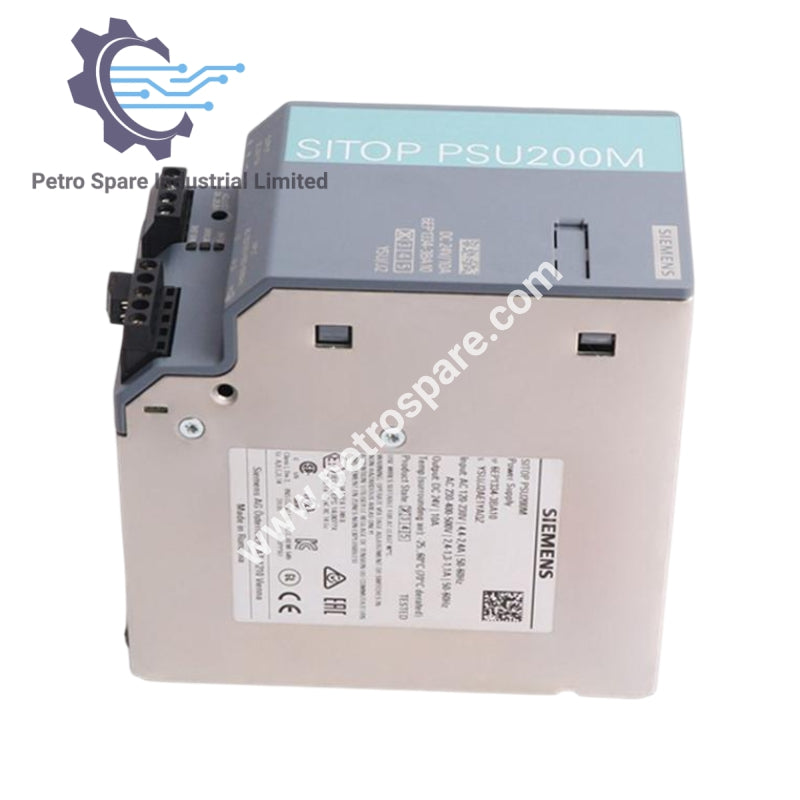

6EP1334-3BA10

Overview

• Model: 6EP1334-3BA10

• Type: Stabilized Power Supply (PSU200M, 10 A)

• Application: Reliable DC power supply for industrial automation systems, with wide‑range AC input and adjustable output voltage

Input Characteristics

• Power Supply Network: 1‑phase and 2‑phase AC

• Supply Voltage (AC):

  • Range 1: 120 … 230 V (selector switch)

  • Range 2: 230 … 500 V (selector switch)

• Input Voltage (AC):

  • Range 1: 85 … 264 V

  • Range 2: 176 … 550 V

• Wide Range Input: Yes

• Overvoltage Overload Capability: 1300 V peak, 1.3 ms

• Buffering Time (at rated output current, power failure): ≥ 25 ms

Output Characteristics

• Output Voltage (DC, rated): 24 V

• Voltage Curve: Controlled, isolated DC

• Adjustable Output Voltage: 24 … 28.8 V (via potentiometer)

• Voltage Tolerance: ±3%

• Control Precision:

  • Input fluctuation: ±0.1%

  • Load fluctuation: ±0.1%

Mechanical Specifications

• Dimensions (W × H × D): 7.0 × 12.5 × 12.1 cm

• Installation Width × Mounting Height: 7.0 × 22.5 cm

---
