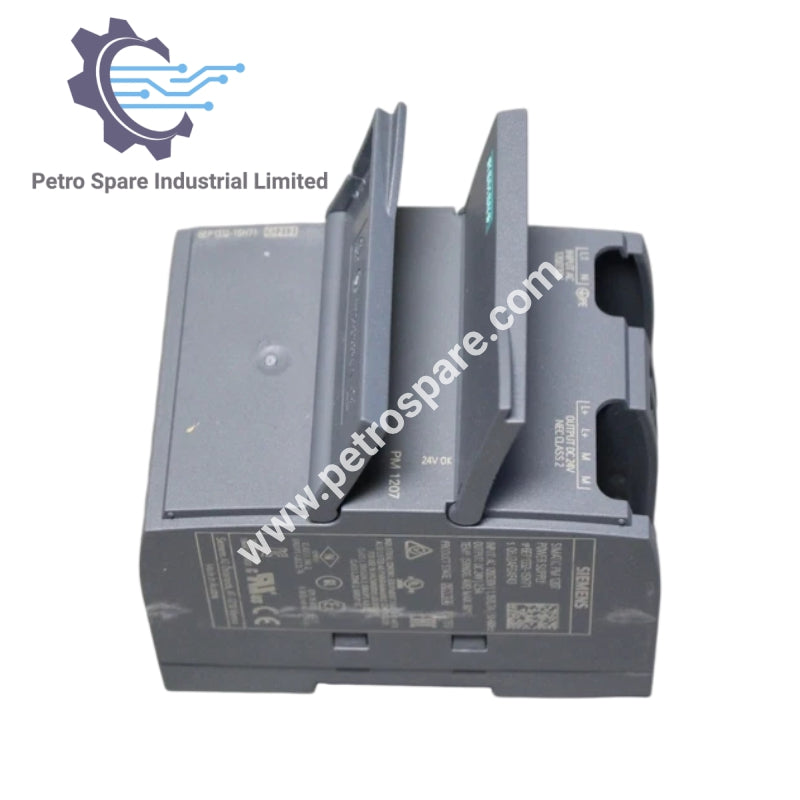

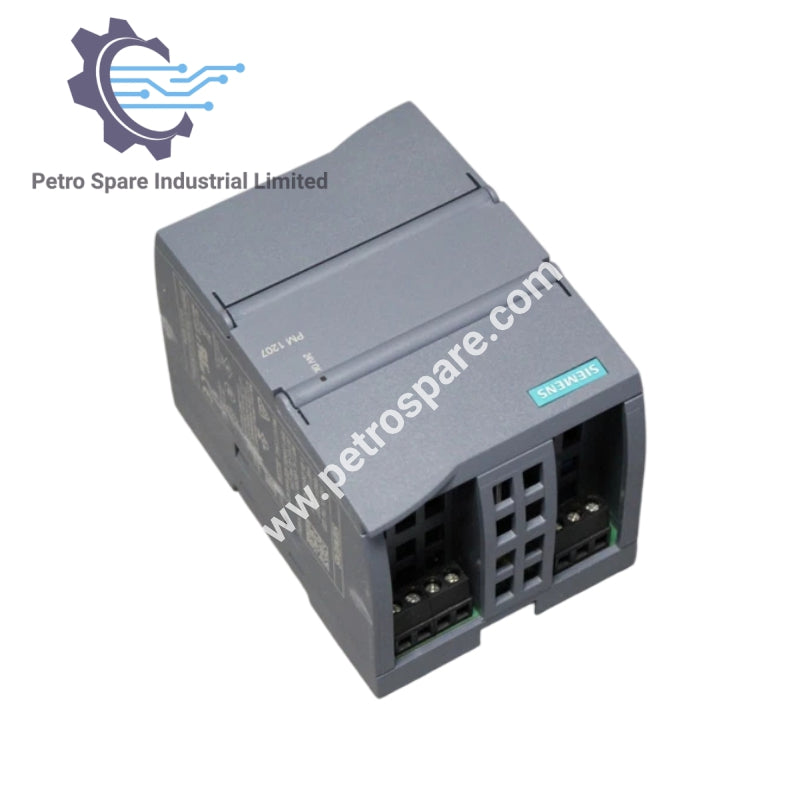

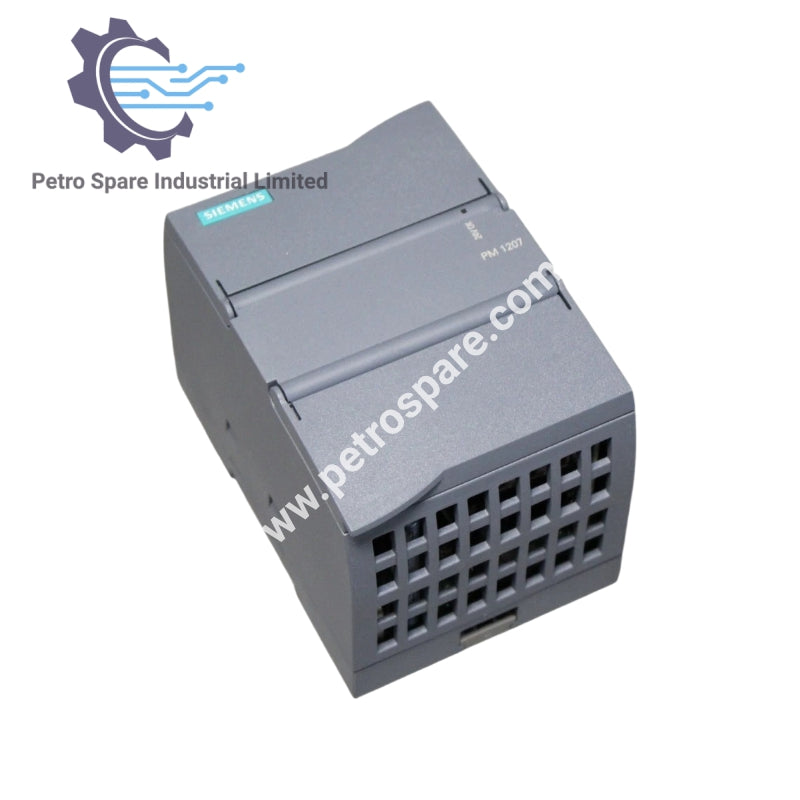

6EP1332-1SH71

Product Overview

• Model: 6EP1332-1SH71

• Type: SIMATIC S7‑1200 Power Module (PM1207)

• Application: Stabilized DC power supply for SIMATIC S7‑1200 automation systems, providing reliable 24 V output at 2.5 A

Input Characteristics

• Supply Voltage (AC): 120 / 230 V

• Power Supply Network: 1‑phase AC

• Galvanic Isolation: Between input and output

Output Characteristics

• Output Voltage (DC, rated): 24 V

• Output Current (DC, rated): 2.5 A

• Voltage Curve: Controlled, isolated DC

• Voltage Control Precision:

  • Input fluctuation ±15%: 0.3%

  • Load step 50/100/50%: 3%

• Setting Time:

  • Load step 50 → 100%: 5 ms

  • Load step 100 → 50%: 5 ms

  • Maximum: 5 ms

Efficiency & Power Loss

• Efficiency: 83%

• Power Loss: 12 W (typical at rated output)

Protection & Monitoring

• Overvoltage Protection: < 33 V

• Short‑Circuit Protection: Constant current characteristic (typical 2.65 A)

• Enduring Short‑Circuit Current (rms): 2.7 A (typical)

• Output Property: Short‑circuit proof

Safety

• Galvanic Isolation: SELV compliant (EN 60950‑1, EN 50178)

• Protection Class: Class I

• Leakage Current: Max 3.5 mA

• Protection Rating: IP20

---
