TSXDSY08T2

Product Overview

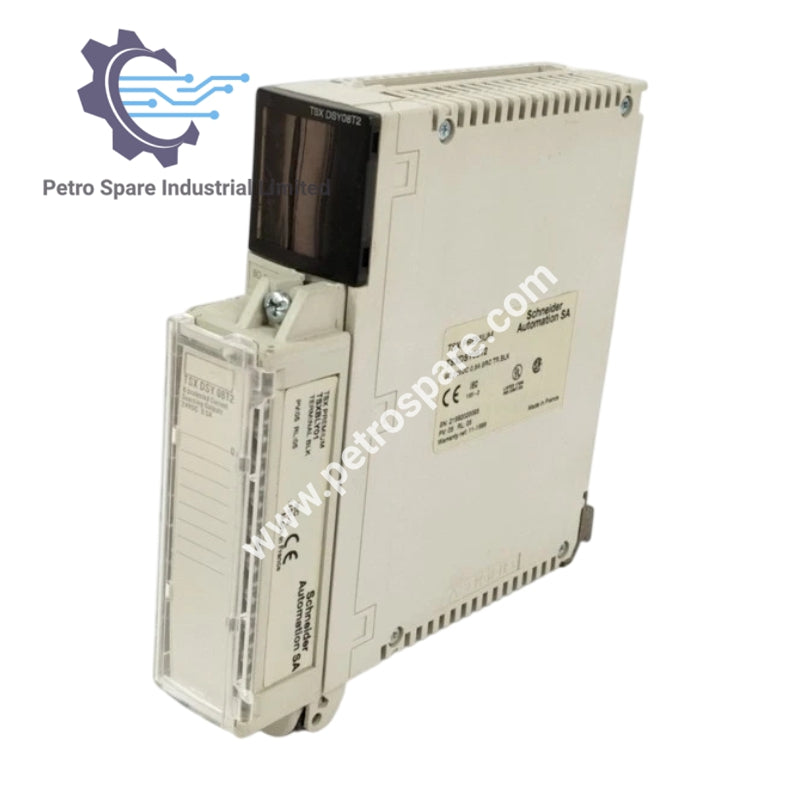

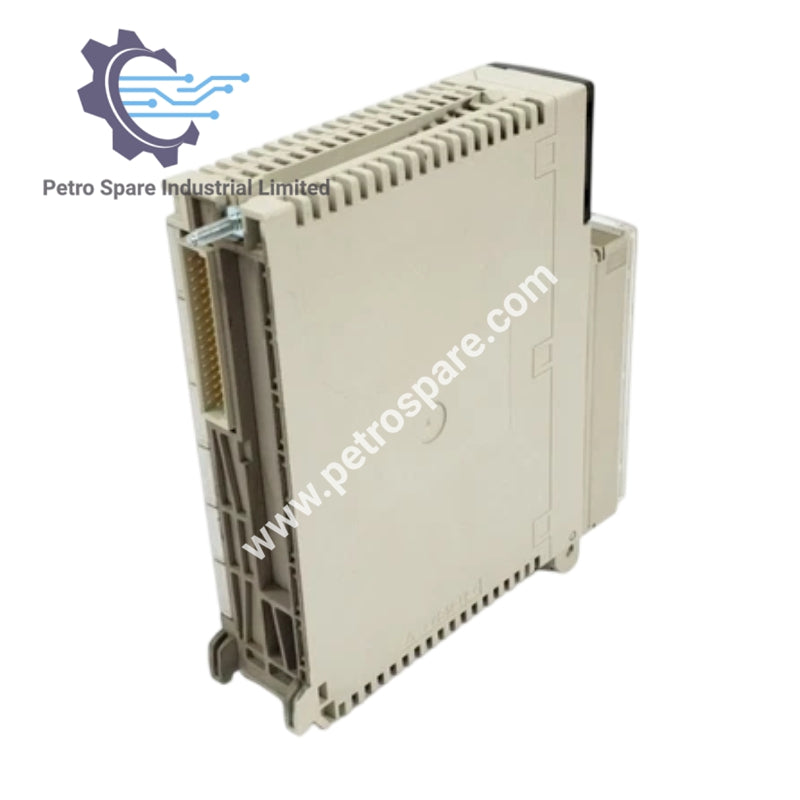

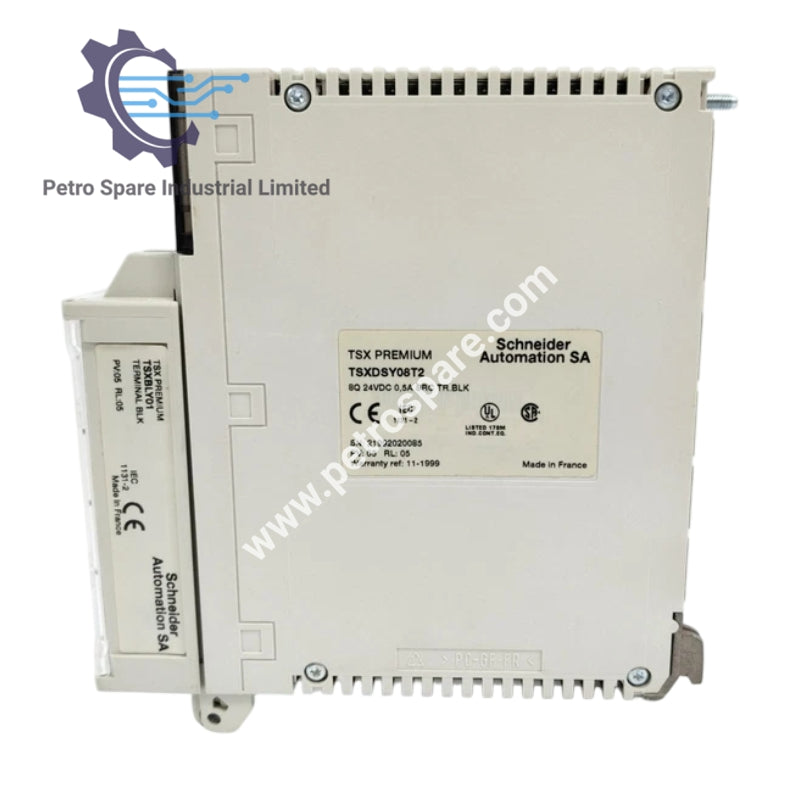

The TSXDSY08T2 is an 8-channel solid-state discrete output module designed for the Modicon Premium automation platform to provide reliable 24 V DC switching with built-in electronic protection.

Technical Specifications

• Discrete Output Number: 8
• Discrete Output Type: Solid state protected
• Discrete Output Voltage: 24 V DC positive conforming to EN/IEC 61131-2 19...30 V
• Discrete Output Current: 0.5 A
• Current per Channel: <= 0.625 A
• Current per Module: <= 4 A
• Leakage Current: < 0.5 mA at state 0
• Residual Voltage: < 1.2 V
• Response Time: 1.2 ms
• Switching Frequency: 0.5/LI² Hz

• Output Overvoltage Protection: By transil diode

• Reverse Polarity Protection: Reverse mounted diode

• Output Overload Protection: Electronic tripping on reactivation

• Short-circuit Protection: Electronic tripping on reactivation

• Preactuator Voltage Detection Threshold: 16 V

• Load Impedance: >= 48 W
• Isolation Resistance: > 10 MOhm 500 V
• Power Dissipation: (1 W + 0.75 W x No of outputs x current per module)
• Marking: CE
• Electrical Connection: Screw terminal block
• Current Consumption: 55 mA 5 V DC
• Module Format: Standard
• Product Weight: 0.71 lb(US) (0.32 kg)
