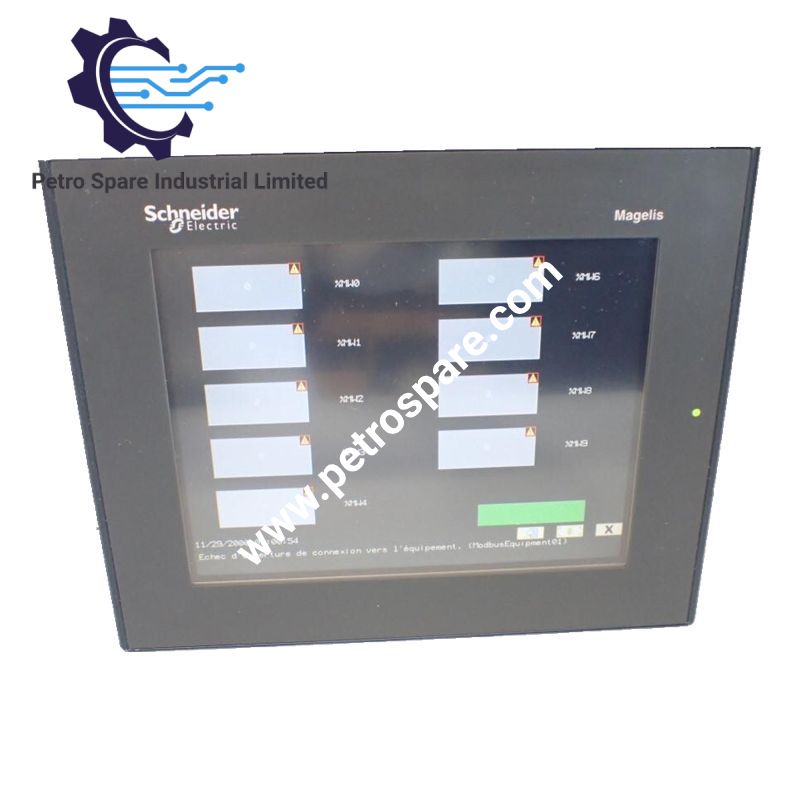

XBTGT4340

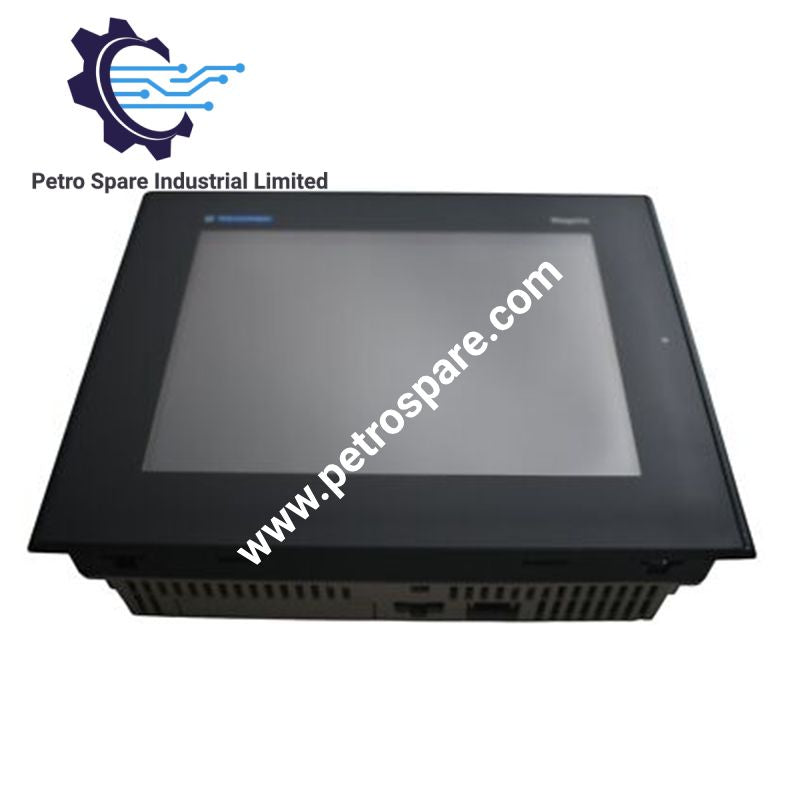

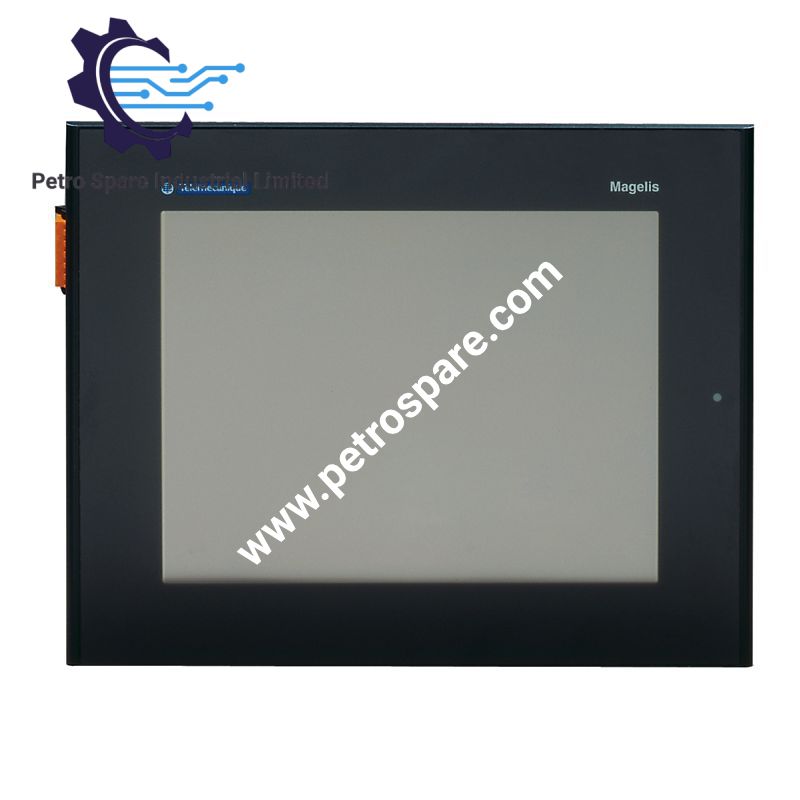

Configured for operator interface and automation-system data exchange in the Harmony XBTGT platform, the Schneider Electric XBTGT4340 (XBTGT4340 advanced touchscreen panel) provides a 7.5 inch VGA touch display with Ethernet, serial communication, USB, composite video, digital I/O, and audio interfaces. The unit operates from 24 V DC and uses Vijeo Designer for configuration.

Hardware Specifications

Parameter	Specification
Model	XBTGT4340
Brand	Schneider Electric
Series	Harmony XBTGT
Product Type	Advanced touchscreen panel
Display	Backlit colour TFT LCD, 65536 colours
Resolution	640 x 480 pixels VGA
Display Size	7.5 inch
Processor	RISC CPU, 266 MHz
Application Memory	32 MB flash EPROM
Backup Memory	512 KB SRAM, lithium battery
Touch Panel	Analogue, 1024 x 1024 touch sensitive zone
Power Supply	24 V DC
Supply Voltage Limits	19.2...28.8 V
Inrush Current	30 A
Power Consumption	28 W
Ethernet	RJ45, 10BASE-T/100BASE-TX, Ethernet TCP/IP
COM1	SUB-D 9, RS232C/RS422/RS485, up to 115.2 kbit/s
COM2	RJ45, RS485, up to 187.5 kbit/s
USB	Type A master port, USB 1.1
Video Input	RCA composite video, NTSC/PAL
Storage	1 Compact Flash card, >= 1 GB
Fieldbus Expansion	Slot for DeviceNet or Profibus DP communication card
Digital I/O	3 removable screw terminal block digital outputs; removable screw terminal block digital input
Audio	Audio input and output
Dimensions	8.5 in x 6.7 in x 2.4 in (215 mm x 170 mm x 60 mm)
Cut-out Dimensions	204.5 (+1/-0) mm x 159.5 (+1/-0) mm
Weight	4.0 lb
Operating Temp	0...50 deg C
Storage Temp	-20...60 deg C
Relative Humidity	10...90% without condensation
Operating Altitude	< 2000 m
Protection	IP20 rear panel; IP65 front panel; NEMA 4X front panel for indoor use
Mounting	Flush mounting with spring clips or screw clamps
Origin	CN
Lifecycle Status	Discontinued Dec 31, 2015; end-of-service Dec 31, 2025

The hardware specifications above are taken from the supplied product data, including the electrical interfaces, memory, environmental ratings, dimensions, weight, and lifecycle information.

PLC Network and Communication Interfaces

The XBTGT4340 provides Ethernet TCP/IP through an RJ45 interface with 10BASE-T/100BASE-TX operation. Serial communication is provided through COM1 and COM2, supporting RS232C, RS422, and RS485 on COM1 and RS485 on COM2. Supported downloadable protocols include Modbus, Modbus TCP, Modbus Plus, FIPWAY, Uni-TE, and selected third-party protocols for Mitsubishi, Omron, Rockwell Automation, and Siemens systems.

The panel uses a RISC CPU operating at 266 MHz, with 32 MB flash EPROM for application memory and 512 KB SRAM backup memory. Its Compact Flash slot supports storage and a communication-card expansion function for DeviceNet or Profibus DP.

Frequently Asked Questions (FAQ)

Q: What supply voltage does the XBTGT4340 require?
A: The rated supply voltage is 24 V DC, with a specified supply range of 19.2...28.8 V DC.

Q: Which serial interfaces are provided?
A: COM1 uses a male SUB-D 9 connector and supports RS232C/RS422/RS485 up to 115.2 kbit/s. COM2 uses an RJ45 connector and provides RS485 up to 187.5 kbit/s.

Q: What communication expansion is supported by the Compact Flash slot?
A: The specified slot can accommodate one fieldbus communication card for DeviceNet or Profibus DP.

Field Installation Guidelines

• Install the unit by flush mounting using the specified spring clips or screw clamps.
• Maintain the specified panel cut-out of 204.5 (+1/-0) mm x 159.5 (+1/-0) mm.
• Connect the 24 V DC supply within the specified 19.2...28.8 V range.
• Route Ethernet and serial communication wiring separately from high-current power wiring where practical to reduce electrical interference.
• Terminate cable shields according to the control-panel grounding scheme and the applicable EMC installation requirements.
• Keep the rear-panel area accessible for the electrical connections and maintain the specified rear-panel IP20 protection.
• For installations requiring the front-panel IP65 or NEMA 4X rating, use the specified mounting arrangement and ensure the enclosure interface remains properly sealed.
• Observe the stated operating range of 0...50 deg C and relative humidity of 10...90% without condensation.

---
