XBTG5330

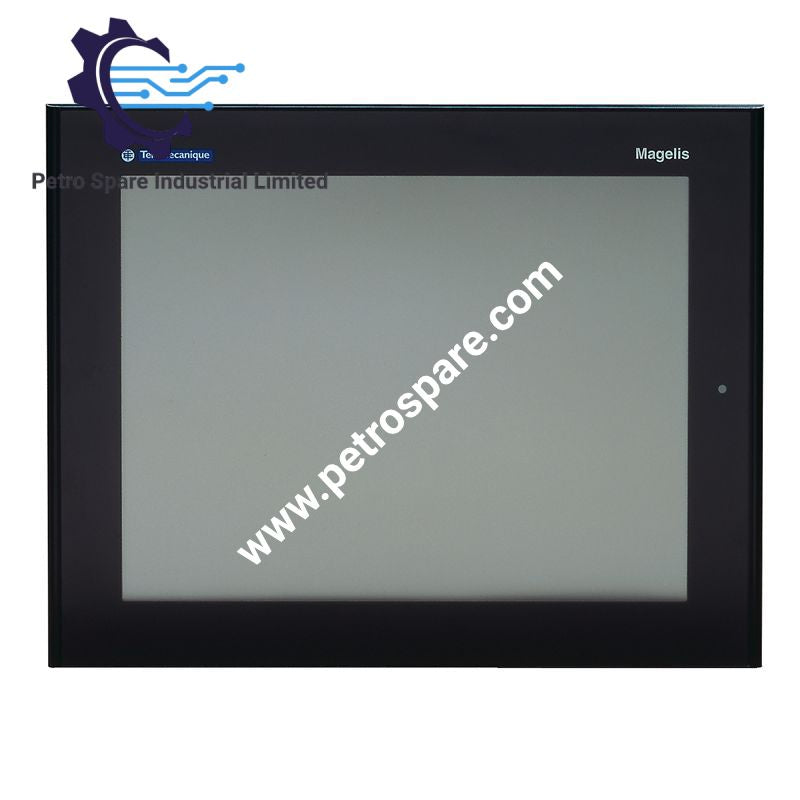

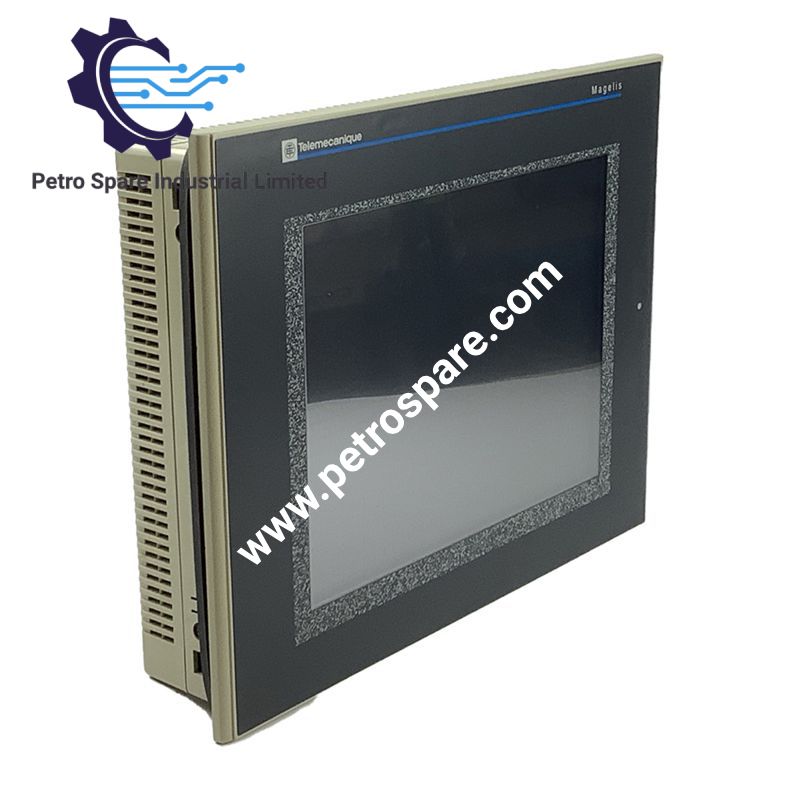

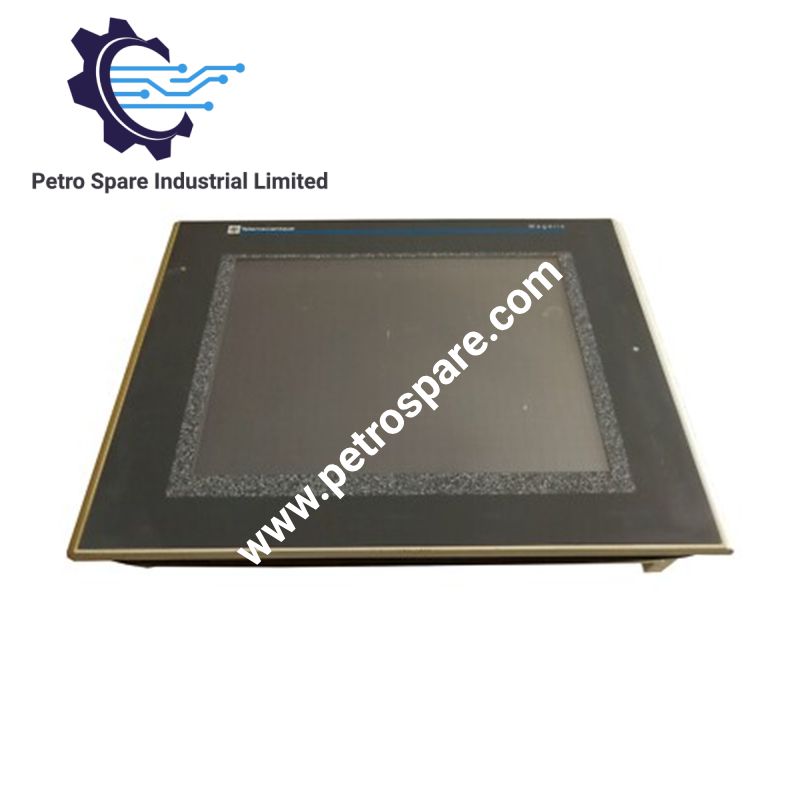

The Schneider Electric XBTG5330, also cataloged as the XBTG5330 Magelis XBTG HMI, operates as a dedicated operator panel for touchscreen visualization, control, and monitoring over Ethernet and serial communication interfaces. It uses a 10.4-inch TFT LCD, 24 VDC supply, internal memory, Compact Flash storage, and optional fieldbus expansion.

Hardware Specifications

Parameter	Specification
Model	XBTG5330
Brand	Schneider Electric / Telemecanique
Product Family	Magelis XBTG
Product Type	Touchscreen HMI Operator Panel
Display Type	Color TFT LCD
Display Size	10.4 in
Resolution	640 x 480 pixels, VGA
Display Colors	256 colors / 65,536 colors, depending on firmware/configuration
Touch Screen	Analog resistive
Backlight	CCFT, field-replaceable
Application Memory	4 MB Flash EPROM / 16 MB internal memory
SRAM	512 KB, battery backed-up
Storage	1 x Compact Flash Type I/II slot
Real-Time Clock	Built-in RTC
Ethernet	1 x RJ45, 10BASE-T / 100BASE-TX, TCP/IP
COM1	1 x SUB-D 9-pin, RS232C / RS422 / RS485
COM2	1 x RJ45, RS485
USB	1 x USB Type-A master, USB 1.1
Expansion	Optional fieldbus modules, including Modbus Plus and Profibus DP
Rated Supply Voltage	24 VDC
Supply Voltage Limits	19.2 to 28.8 VDC
Power Consumption	Max. 30 W
Dimensions	310 x 245 x 59 mm (12.2 x 9.6 x 2.32 in)
Weight	3.4 kg
Front Protection	IP65 / NEMA 4X when panel mounted
Operating Temp	0 to 50 deg C
Relative Humidity	10% to 90% RH, non-condensing

Ethernet and Serial Communication

The XBTG5330 provides one RJ45 Ethernet interface supporting 10BASE-T and 100BASE-TX physical connections with TCP/IP communication. COM1 uses a 9-pin SUB-D connector and supports RS232C, RS422, and RS485 electrical interfaces. COM2 provides RS485 through an RJ45 connector.

The communication architecture allows the HMI to exchange visualization and control data through Ethernet or serial links. An expansion slot accepts optional fieldbus modules such as Modbus Plus and Profibus DP.

Frequently Asked Questions (FAQ)

Q: What supply voltage does the XBTG5330 require?
A: The rated supply voltage is 24 VDC, with a specified operating range of 19.2 to 28.8 VDC.

Q: Which serial interfaces are available?
A: COM1 supports RS232C, RS422, and RS485 through a SUB-D 9-pin connector. COM2 provides RS485 through an RJ45 connector.

Q: Does the XBTG5330 support removable storage?
A: Yes. The panel includes one Compact Flash card slot compatible with Type I and Type II cards.

Field Installation Guidelines

• Install the unit in a panel cutout according to the mechanical dimensions and mounting requirements of the XBTG enclosure.
• Maintain the specified front-panel sealing conditions when IP65 / NEMA 4X protection is required.
• Connect the 24 VDC supply with correct polarity and suitable industrial power wiring.
• Separate Ethernet, serial communication, and power wiring where practical to reduce electromagnetic interference.
• Use appropriate cable shielding for RS232C, RS422, RS485, and Ethernet installations according to the selected communication system.
• Bond cable shields to the designated protective or functional grounding point using the applicable site grounding practice.
• Verify connector seating and cable strain relief before energizing the HMI.
• Provide adequate access for the field-replaceable CCFT backlight and service components.
• Confirm that the installation environment remains within 0 to 50 deg C and 10% to 90% RH, non-condensing.
• Do not exceed the specified 30 W maximum power consumption when sizing the 24 VDC supply circuit.

---
