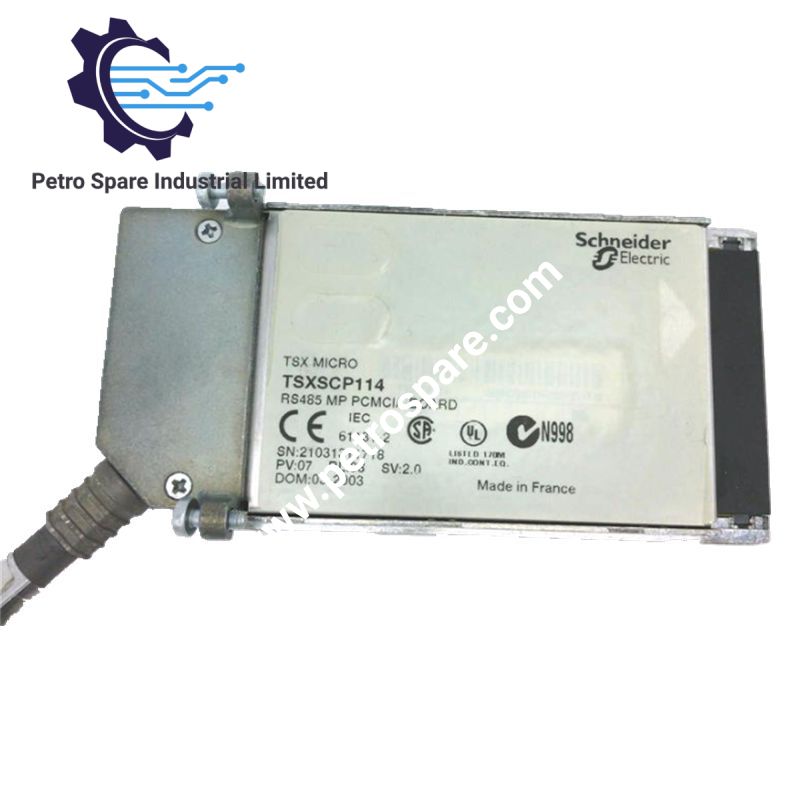

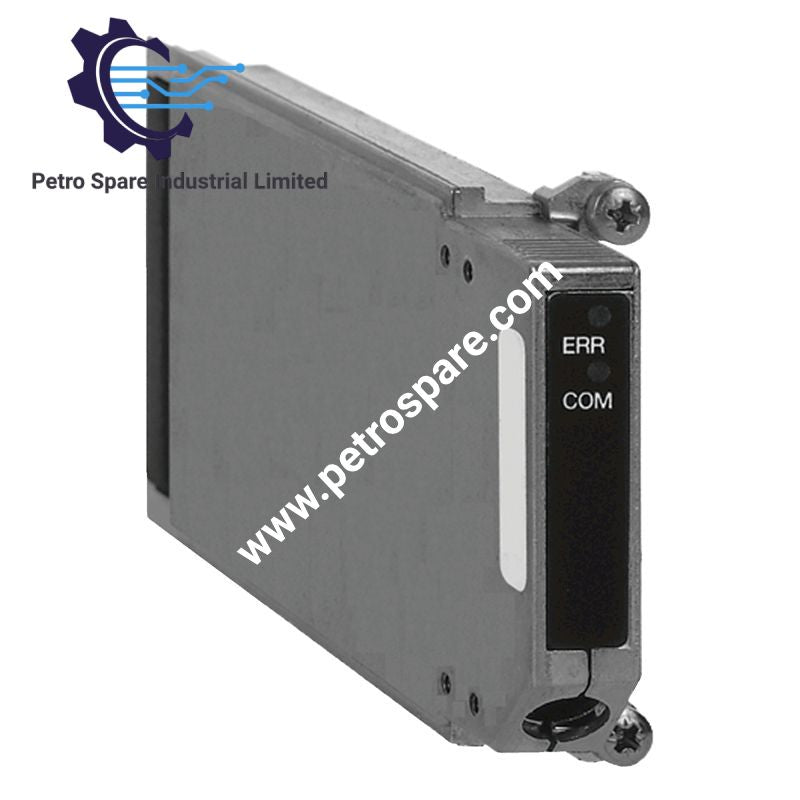

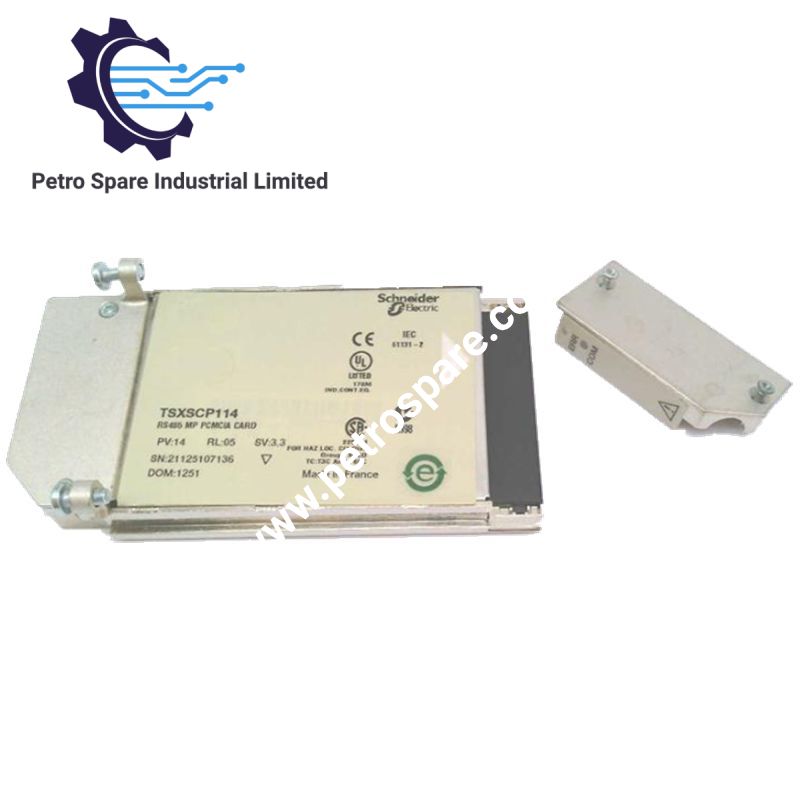

TSXSCP114

Configured for Modbus and Uni-Telway character mode communication in the Modicon Premium Automation platform, the Schneider Electric TSXSCP114 (TSXSCP114 Communication PCMCIA Card) provides direct physical and electrical communication interface expansion for Premium processors and Atrium co-processors.

Hardware Specifications

Parameter	Specification
Model	TSXSCP114
Brand	Schneider Electric
Origin	France
Product Type	Communication PCMCIA Card
Compatible Platform	Modicon Premium Automation platform
Communication Interface	RS485
Communication Protocol	Modbus, Uni-Telway, character mode
Memory Type	PCMCIA card Type III
Compatible Devices	TSX37-21/22, TSXSCY21601, Atrium co-processor, Premium processor
Weight	0.105 kg
Power Consumption	150 mA at 5 VDC

Industrial Network Communication Interface

The TSXSCP114 communication card provides an RS485 physical interface for Modbus and Uni-Telway character mode communication within Modicon Premium control architectures. The PCMCIA Type III format allows installation in compatible Premium processors and Atrium co-processor configurations.

The card operates with the Schneider Electric Modicon communication architecture, providing serial data exchange through RS485 wiring. Network installation requires consideration of communication cable routing, shielding, and termination practices according to the RS485 physical layer requirements.

The TSXSCP114 belongs to the Modicon Premium platform accessory range and is discontinued for new service, with service support status defined by Schneider Electric lifecycle information.

Firmware Flash Compatibility and Bus Communication

The TSXSCP114 uses the Premium platform communication accessory architecture rather than an independent programmable controller firmware environment. Communication operation depends on host processor compatibility and the configured Modbus or Uni-Telway communication parameters.

Installation verification should include processor compatibility, PCMCIA slot availability, communication configuration settings, and serial network addressing before system commissioning.

Frequently Asked Questions

Q: What communication protocols are supported by the TSXSCP114?
A: The TSXSCP114 supports Modbus and Uni-Telway communication protocols through an RS485 physical interface.

Q: Which Schneider Electric platforms are compatible with the TSXSCP114?
A: The module is compatible with Modicon Premium processors, TSX37-21/22 controllers, TSXSCY21601 modules, and Atrium co-processor configurations.

Q: What is the power consumption requirement of the TSXSCP114?
A: The communication card requires 150 mA at 5 VDC from the host system.

Field Installation Guidelines

Install the TSXSCP114 only in compatible Modicon Premium processor or Atrium co-processor PCMCIA interfaces. Confirm that the host device is powered down before inserting or removing the communication card.

RS485 communication wiring should be separated from high-voltage power cables and routed using appropriate industrial communication cable practices. Cable shielding should be connected according to the control system grounding design to reduce electrical interference.

Before operation, verify Modbus or Uni-Telway configuration parameters, communication addressing, and serial network termination requirements. Ensure the PCMCIA connector is fully seated and mechanically secured within the host device.

---
