TSXPSY2600MC

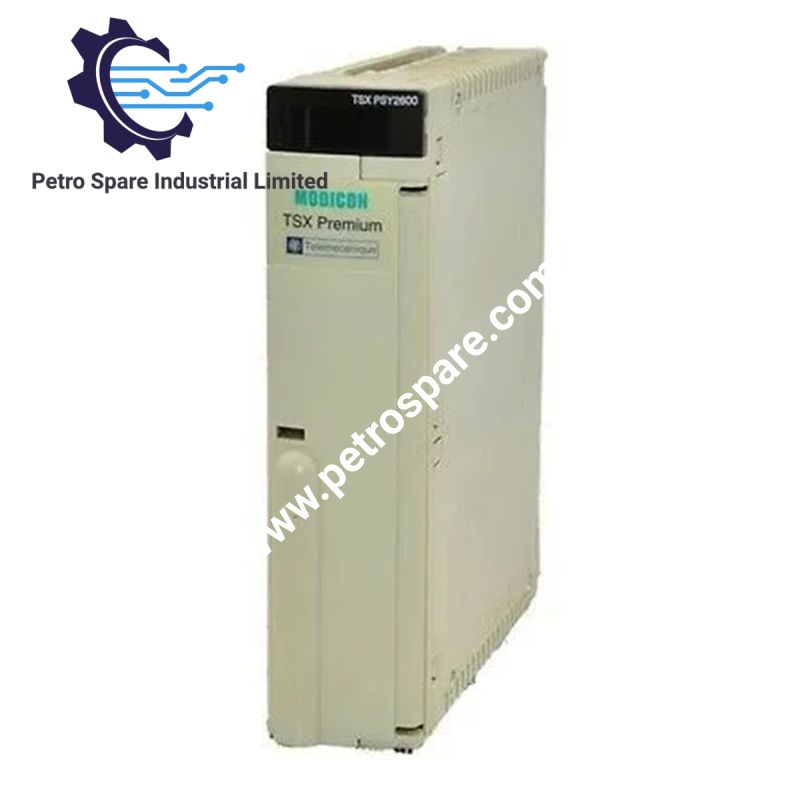

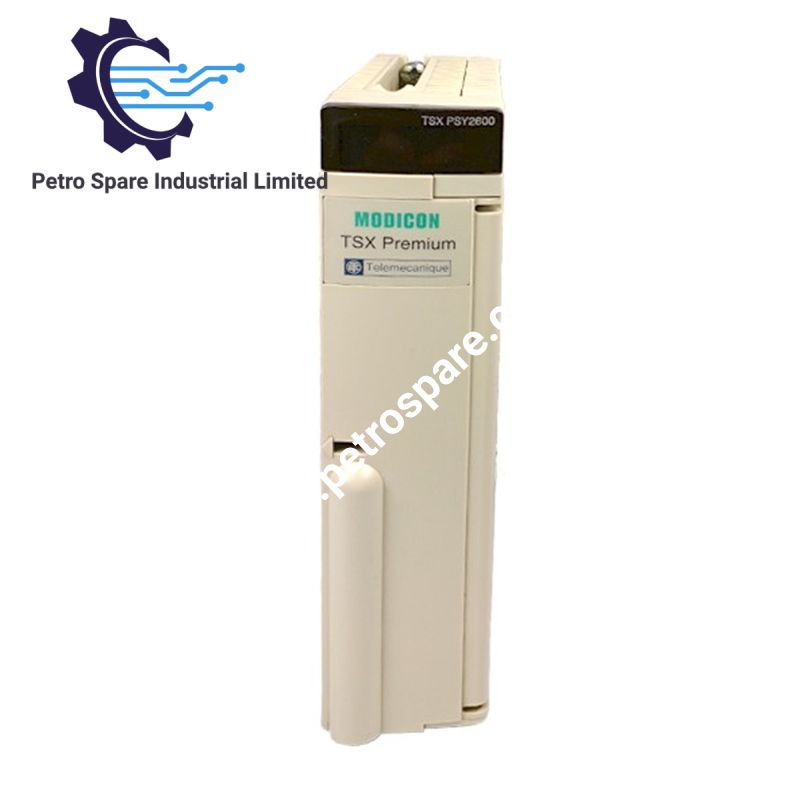

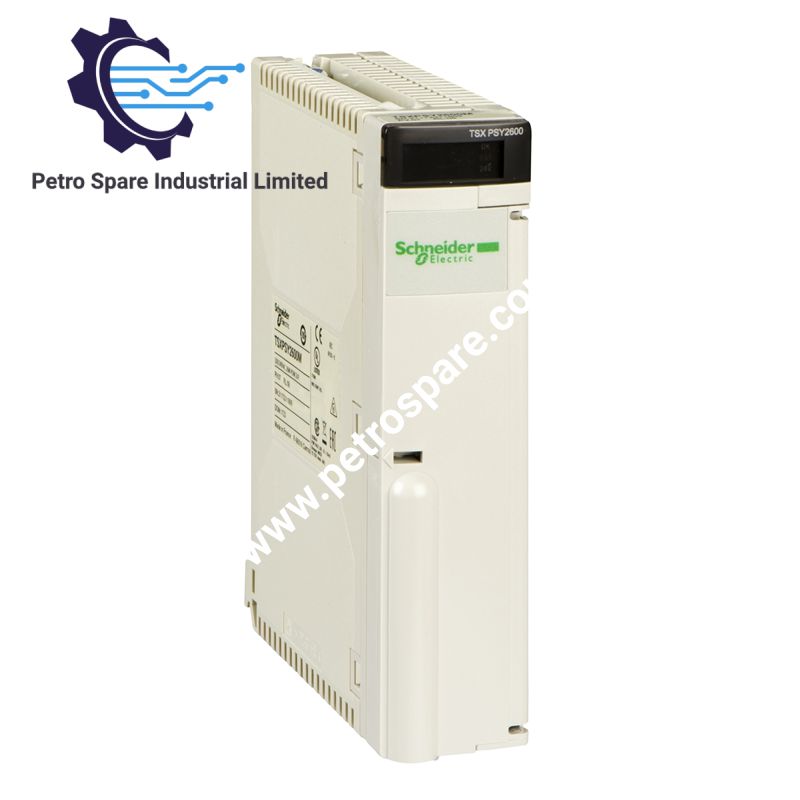

Configured for rack power conversion in the Modicon Premium Automation platform, the Schneider Electric TSXPSY2600MC (TSXPSY2600MC Power Supply Module) provides direct AC input conversion and DC output distribution for PLC system hardware.

Hardware Specifications

Parameter	Specification
Model	TSXPSY2600MC
Brand	Schneider Electric
Origin	France
Product Type	Power Supply Module
Primary Voltage	100...240 V AC (85...264 V AC)
Network Frequency	50/60 Hz
Input Current	300 mA at 240 V AC / 500 mA at 100 V AC
Total Useful Secondary Power	26 W
Secondary Power Output	15 W at 24 V DC / 25 W at 5 V DC
Secondary Current	0.5 A at 24 V DC sensor supply / 0.6 A at 24 V DC relay supply / 5 A at 5 V DC
Inrush Current	37 A at 100 V AC / 75 A at 240 V AC
Weight	0.51 kg
Operating Temp	0 to 60 deg C
Storage Temp	-25 to 70 deg C
Power Consumption	26 W secondary output capacity
Protection	Internal 4 A time-delayed primary fuse, secondary overload, overvoltage and short-circuit protection
Protection Degree	IP20
Insulation Resistance	>= 100 MOhm primary/ground and primary/secondary
Dielectric Strength	2000 V primary/earth, 2000 V primary/secondary

Modicon Premium Power Conversion Characteristics

The TSXPSY2600MC power supply module converts 100...240 V AC input power into regulated 5 V DC and 24 V DC outputs for Modicon Premium PLC rack components. The module includes internal protection functions for overload, overvoltage and short-circuit conditions on the secondary circuits.

The module provides LED status indication for sensor voltage presence, output voltage status and battery fault monitoring. The design includes conformal coating treatment and supports industrial environments with pollution degree 2 classification.

The TSXPSY2600MC operates as a Modicon Premium rack power component with IEC 61131-2 compliance and supports communication backplane powered automation configurations. It is discontinued and replaced by the Modicon X80 BMXCPS2000 power supply module.

Frequently Asked Questions

Q: What input voltage range does the TSXPSY2600MC support?
A: The module accepts 100...240 V AC nominal input voltage with an operating range of 85...264 V AC at 50/60 Hz.

Q: What DC outputs are available from this power supply module?
A: The module provides 5 V DC and 24 V DC secondary outputs for Modicon Premium PLC rack power requirements.

Q: Does the TSXPSY2600MC provide secondary circuit protection?
A: Yes. The module includes secondary overload protection, overvoltage protection and short-circuit protection.

Field Installation Guidelines

Install the TSXPSY2600MC in the designated Modicon Premium rack position according to the controller system hardware configuration.

Connect AC input wiring using appropriate industrial power wiring practices. Separate AC power conductors from low-level signal wiring to reduce electrical interference. Protective earth connections must follow the cabinet grounding design.

Verify the backplane connection is fully seated before energizing the rack. Confirm ventilation clearance and ambient temperature conditions remain within the specified operating range.

For replacement installations, verify mechanical compatibility, output voltage requirements and rack power load calculations before installing the recommended BMXCPS2000 replacement module.

---
