TSXP576634

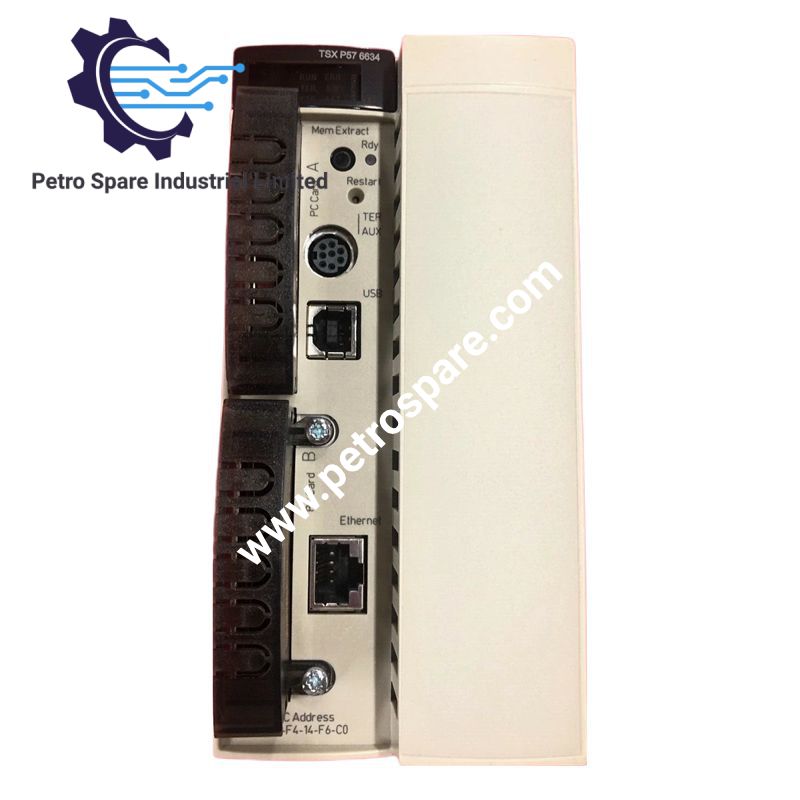

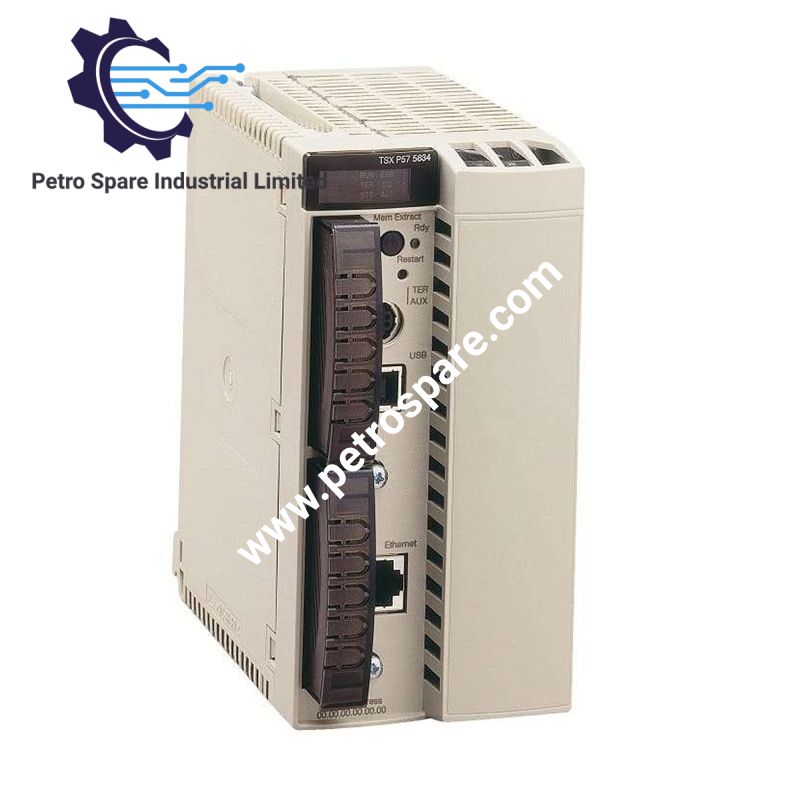

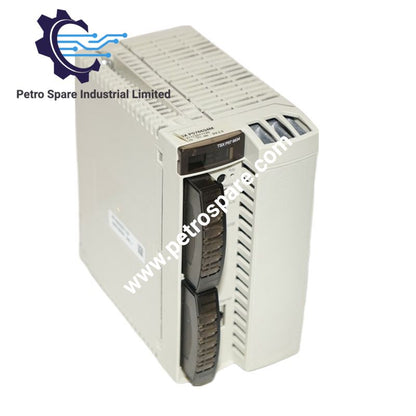

Configured for application processing and I/O management in Modicon Premium automation platforms, the Schneider Electric TSXP576634M (TSXP576634 Unity Processor Module) provides direct processing and communication execution for PLC control tasks.

Hardware Specifications

Parameter	Specification
Model	TSXP576634 / TSXP576634M
Brand	Schneider Electric
Origin	France
Product Type	Unity Processor Module
Automation Platform	Modicon Premium
Programming Software	Unity Pro
Discrete I/O Capacity	Up to 2,040 I/O
Analog I/O Capacity	Up to 512 I/O
Maximum Rack Configuration	16 racks with 4, 6, or 8 slots; 8 racks with 12 slots
Maximum Number of Slots	128 slots
Application-Specific Channels	Up to 64
Process Control Channels	Up to 30 channels, up to 90 simple loops
Integrated Communication Ports	RS485 serial link, Ethernet TCP/IP RJ45, USB port
Ethernet Port Type	10BASE-T / 100BASE-TX
Internal RAM Without PCMCIA	2048 kB program and data
Internal RAM With PCMCIA	7168 kB program, 2048 kB data
PCMCIA Memory Extension	Up to 16384 kB additional data storage
Boolean Instruction Execution Time	0.0375 to 0.045 us
Word/Floating Point Execution Time	0.045 to 0.06 us word arithmetic; 0.48 to 0.56 us floating point
Processing Rate	Up to 20.26 Kinst/ms for Boolean instructions

Profinet / EtherNet-IP Deterministic Networks and PLC Processing

The TSXP576634 Unity Processor operates as a Modicon Premium CPU module with integrated Transparent Ready communication capability. The processor manages application execution, rack configuration, and distributed I/O communication through Ethernet TCP/IP, RS485 serial communication, and USB programming interfaces.

The processor supports structured PLC applications through Unity Pro, including fast tasks, master tasks, auxiliary tasks, and event tasks. The application structure supports 1 fast task, 1 master task, 4 auxiliary tasks, and up to 128 event tasks for cyclic and event-driven control execution.

Frequently Asked Questions

Q: Does the TSXP576634 support memory expansion?
A: Yes. The processor includes a PCMCIA card slot for memory extension, supporting additional data storage up to 16384 kB.

Q: What communication interfaces are integrated into the TSXP576634?
A: The processor provides an Ethernet TCP/IP RJ45 interface, RS485 serial link through a mini DIN connector, and a USB programming port.

Q: How many I/O points can the TSXP576634 manage?
A: The processor supports up to 2,040 discrete I/O points and up to 512 analog I/O points within Modicon Premium rack configurations.

Field Installation Guidelines

Install the TSXP576634 processor in a compatible Modicon Premium rack with correct mechanical alignment of the module connector and backplane interface.

Verify rack power conditions before insertion or removal. Maintain proper cabinet grounding and separate communication wiring from high-voltage power cables to reduce electrical interference.

Use shielded communication cables where required by the installation environment. Connect cable shields according to the cabinet grounding design and avoid unnecessary cable loops near electromagnetic noise sources.

Confirm Unity Pro project compatibility and verify firmware requirements before transferring application programs to the processor.

---
